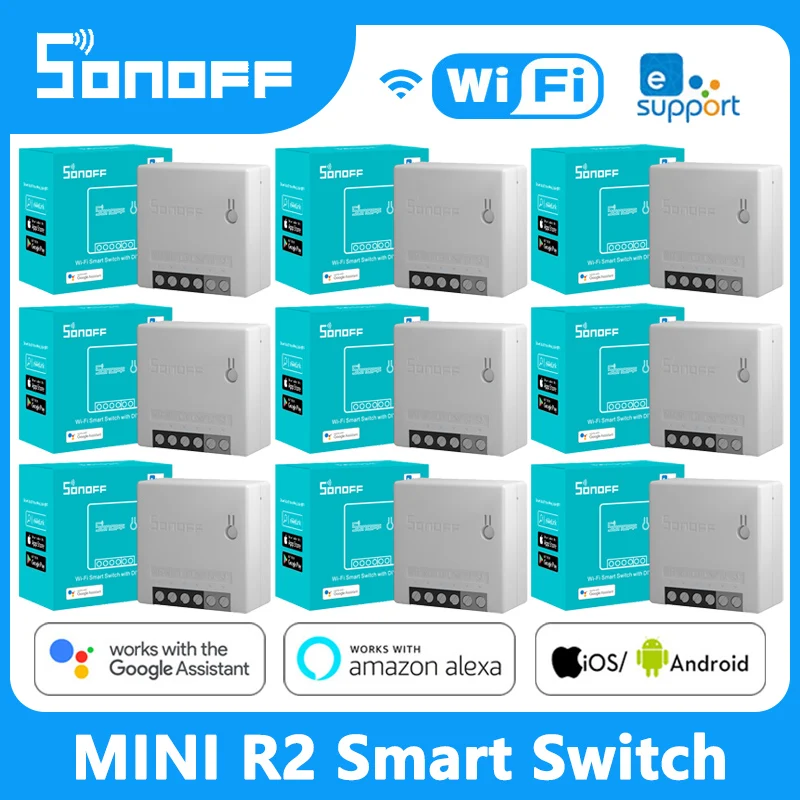

SONOFF MINI R2 DIY Smart Switch Two Way Home Wifi Module App/Voice Control For EWelink App Alexa Google | Электроника

SONOFF MINI R2 DIY Smart Switch Two Way Home Wifi Module App/Voice Control For EWelink App Alexa Google | Электроника

Description:

MINIR2, as a reinforced MINI two-way DIY smart switch, has been redesigned to lift the safety and performance to the optimal level. The old version MINI has an external antenna with strong electricity, but the MINIR2’s antenna is hidden totally into the interior that ensures you peace of mind to use it to control your devices. Additionally, the interface S1 and S2 are colored to gray which is distinguished from other input and output interfaces in order to further remind you not to connect the strong current to both of the interfaces. 2KV surge testing meets the 1KV surge testing standard that CE certification requires, and it passed the ANATEL certification, so MINIR2 give you enough safety to bring you a safe use experience. The small and compact smart switch is used for different kinds of switch boxes, even the smallest EU standard switch box. Convenient to automate your home appliances on eWeLink app with your smartphone or your voice command. Support 3 triggering modes that pulse mode (works with push button switches), edge mode (Works with SPDT switches) and following mode (Works with switches with “ON” and “OFF” mark and sensors with dry contact output). It supports the DIY mode (designed for developers) which allows users to integrate MINIR2 into worldwide third-party open source smart home control system to achieve LAN control without cloud service, such as Home Assistant, openHAB, ioBroker .etc. For the protocol document and the code for the DIY Mode tool (updating),

Specifications:

Input: AC 100-240V 50/60Hz 10A Max;

Output: AC 100-240V 50/60Hz 10A Max;

Wi-Fi: IEEE 802.11 b/g/n 2.4GHZ;

Material: PC V0;

Package Included:

1*Smart Switch

Advanced Safety, Professional Certification

Pass the 2KV surge testing and also ceritified by ANATEL which ensures MINIR2 more secure in use.

Safety, Improved Further

The external antenna of MINIR2 is moved to the interior, improving the use performance and safety.

Installation Guide

It is recommanded that the frontside of MINIR2 is installed outside during insatllation and do not install it in the metal junction box.

Considerate Design for Your Safety

The S1 and S2 interface is highlighted on the different color to give you a clear tip that they can not connect the strong current for security reasons.

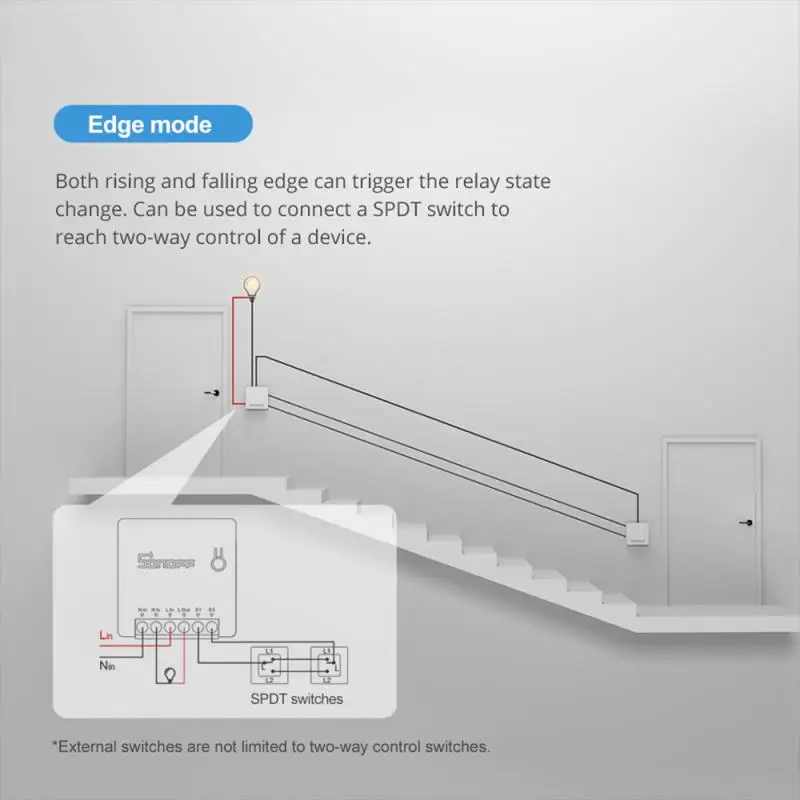

Work with An External Switch

Support to connect dry contact sensors and various types of extenal switches, such as SPDT switches and NC/NO push button switches.

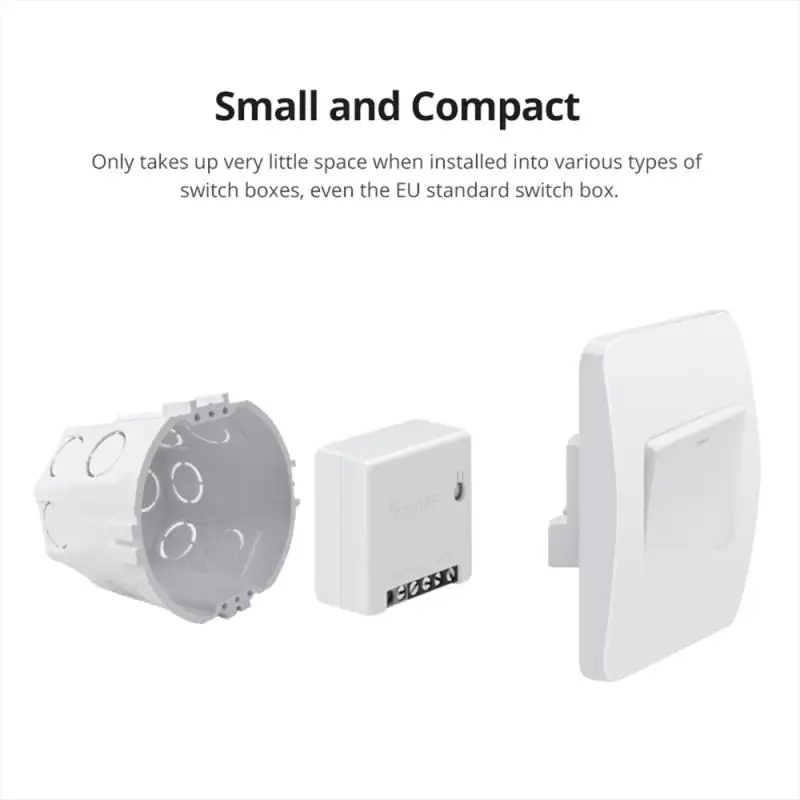

Small and Compact

Only takes up very little space when installed into various types of switch boxes, even the EU standard switch box

Get Your House Lighted via Your Phone

Enable the eWeLink app to control appliances in your home, anywhere and anytime

Run Devices without Lifting A Finger

Connected with Amazon Alexa or Google Assistant to turn on/off devices in a completely hands-free way

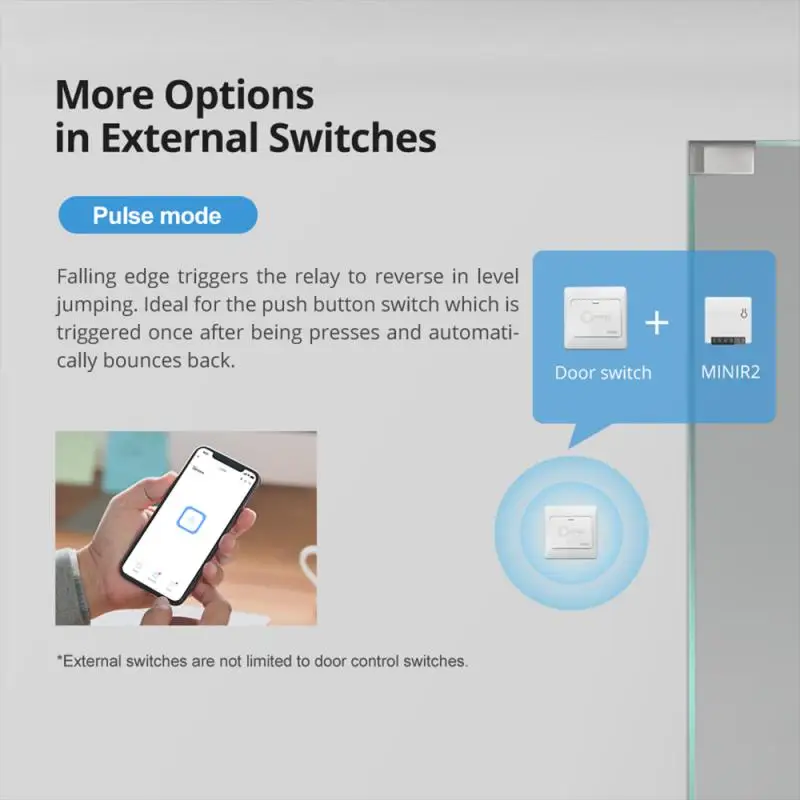

More Options in External Switches

Falling edge triggers the relay to reverse in level jumping. Ideal for the push button switch which is triggered once after being pressed and automatically bounced back

Control SONOFF with New Ways

SONOFF switches can be controlled by the updated eWeLink web version and IFTTT service

Customize Smart Scenes

Let one SONOFF device to trigger another one, or trigger a multitude of devices simultaneously via tapping “Tap to run” on your phone

On/Off Time, It’s Up to You

Arrange the start and stop schedule for devices to have them automatically switch on/off, reducing needless power consumption

On or Off? View from Your Phone

Can know your device is on or off through the eWeLink app even if you’re not at home

Product Details Picture
