ANENG Digital Pen Multimeter NCV AC/DC Voltmeter Ohmmeter Resistance Capacitance Test Handheld 4000 Counts LCD Backlight Tester |

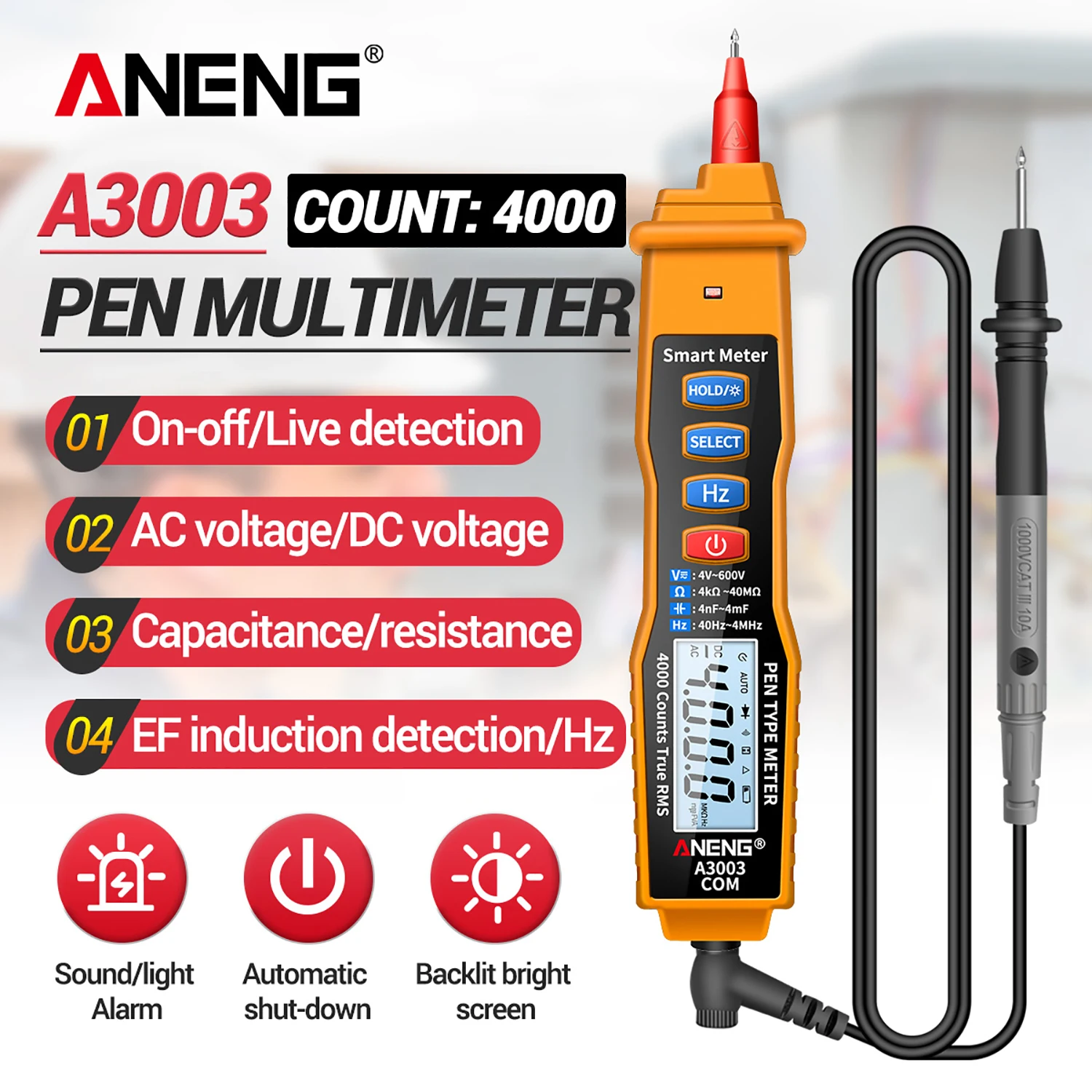

ANENG A3003 4000 Counts Pen Type Digital Multimeter with NCV, AC/DC Voltmeter, Ohmmeter, Resistance, Capacitance, Frequency and Live Line Test, The Digital Pen Multimeter also with EF Function and On-Off Buzzer Detection Support Data Hold. Large LCD screen with Backligt support auto-off function for power saving; Buit-in flash light + Audible and Light Alarm, more convenient test and read.

Features:
Multifunction Pen Multimeter -- This pen-type digital multimeter can perform 4V-600V AC/DC voltage measurement, resistance from 4kΩ - 40MΩ, capacitance, frequency test and On-off buzzer detection, Zero fire detection, etc.

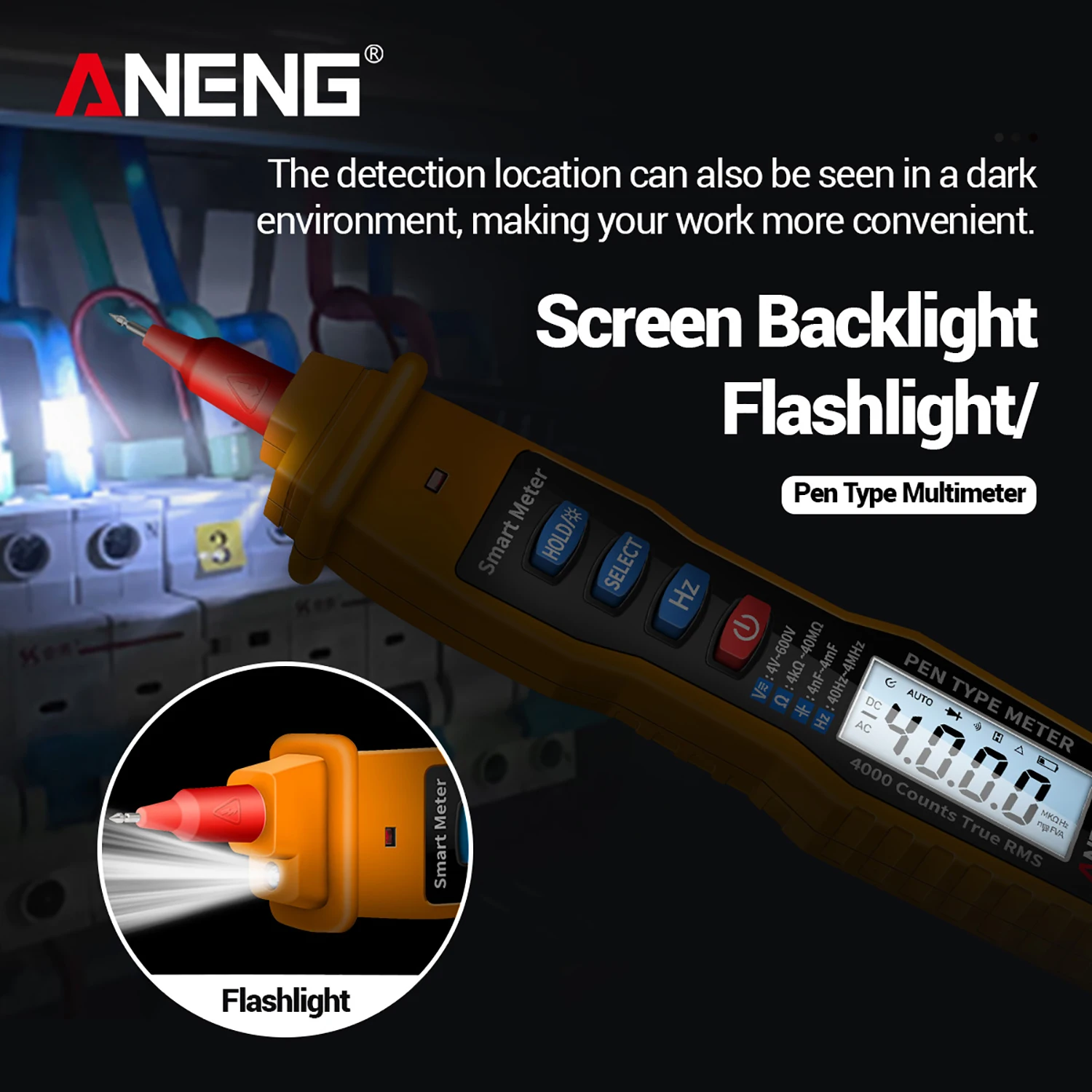

Convenient Use -- Since 4000 counts large backlight LCD scree and flashlight function, the value can be clearly read even in dark places. Data hold function, you can save data with one click, convenient for data reading.

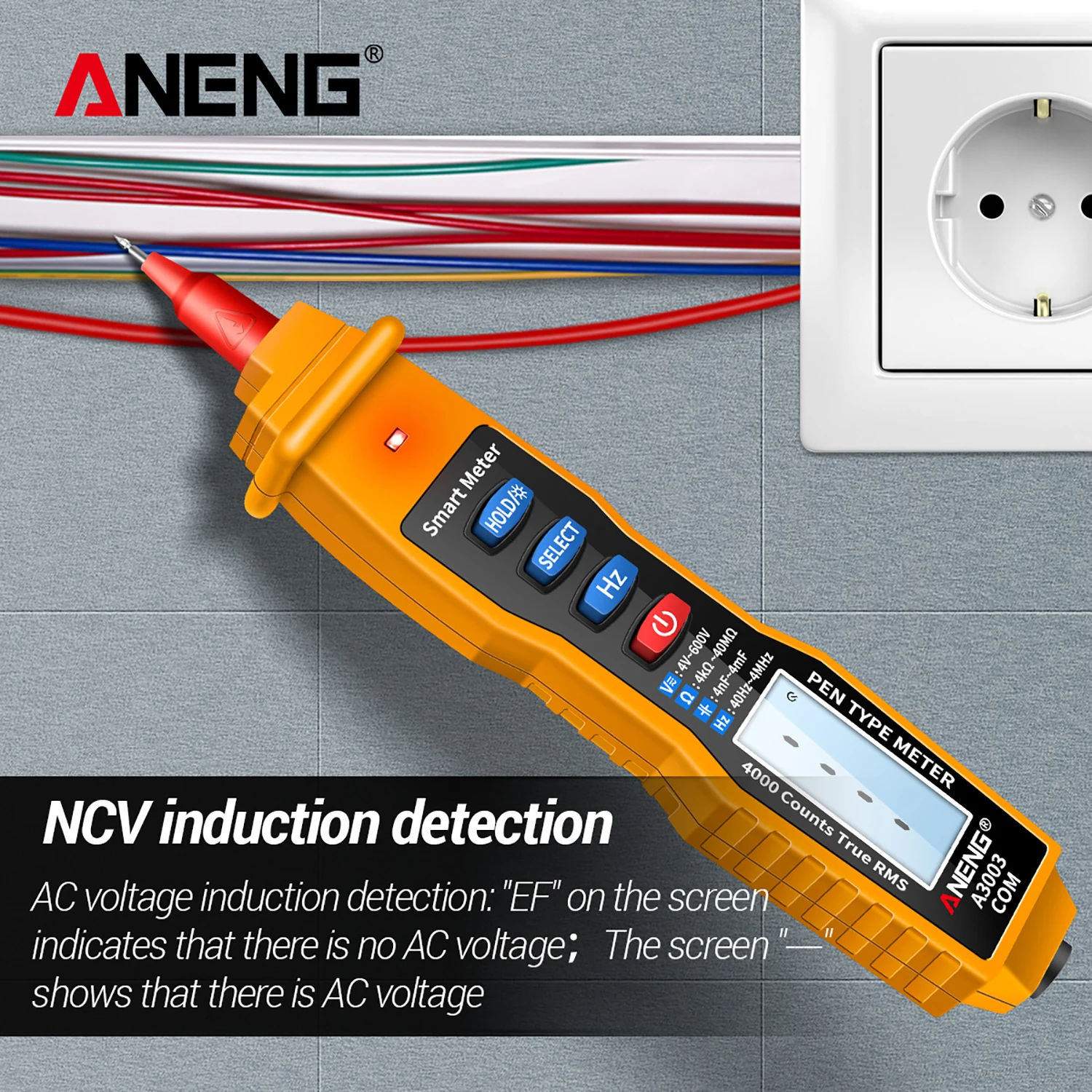

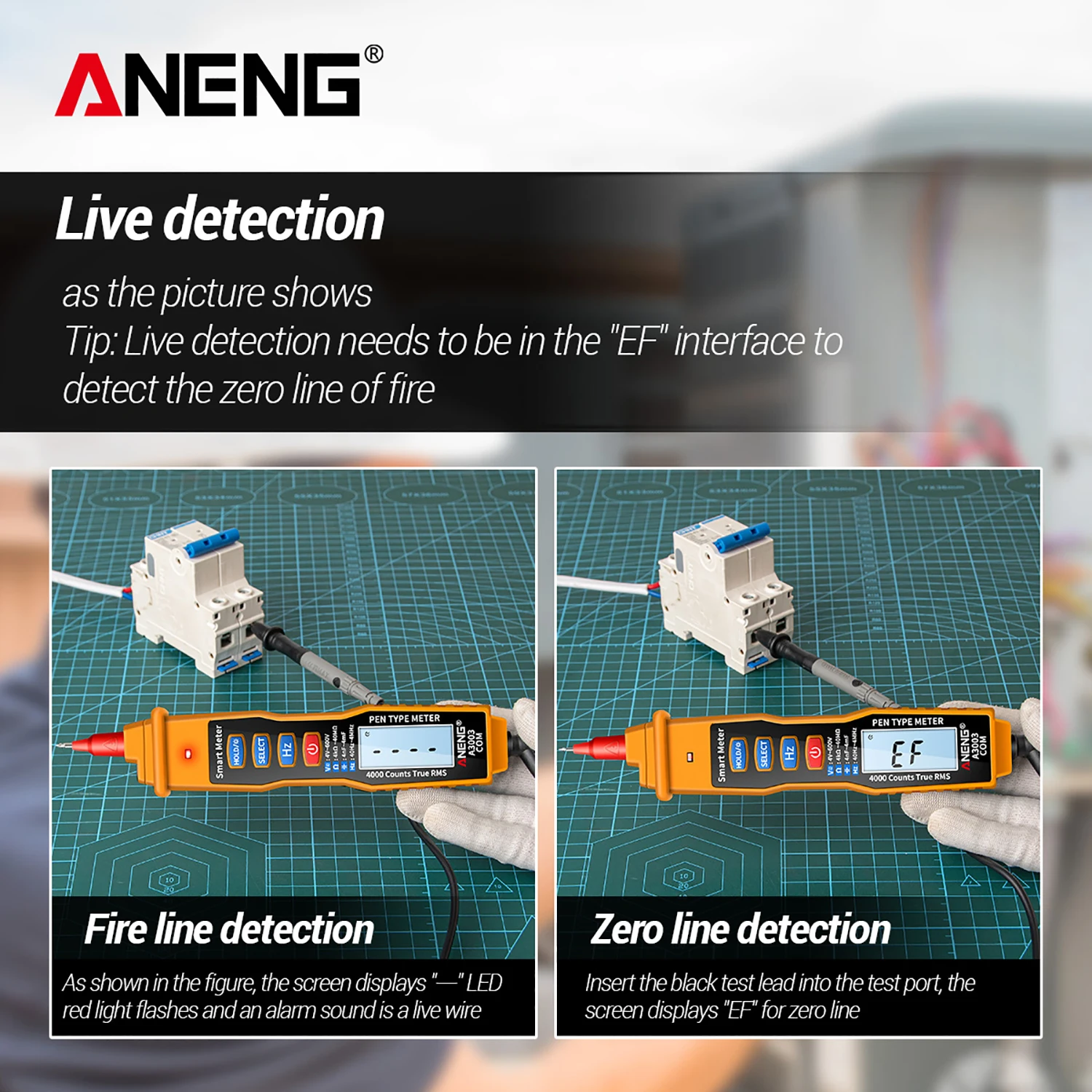

Non-Contact Measurement -- Digital multimeter supports NCV non-contact voltage detection, and can distinguish the null line and the fire wire to avoid the risk of electric shock. Safe and reliable.
Auto Power Off & Audible Alarm -- The pen multimeter has an automatic shutdown function, which will automatically shut down if there is no operation for mins, lowe power consumption. Audible + light alarm make measurement more easy.
Easy Carry -- Compact pen type design for convenient single hand use, easy to carry and  operate. It is very suitable for home, school, laboratory, factory and other applications.

Specification:
Brand: ANENG
Model: A3003
Maximum Display: 4000 Count
Color: Yellow / Black (optional)
Material: ABS + Brass + PVC
Power Supply: 2 * AAA (Not Included)
Alarm: Audible + Light alarm
Auto Off: Yes
LCD Screen: With Backlight
Data Hold: Yes
EF Function: Yes
Date Retention Function: Yes
Buzzer Function: Yes

Function

Range

Accuracy

DC Voltage

4V/40V/400V

±(0.8%+ 3)

600V

±(1%+ 3)

AC Voltage

4V/40V/400V

±(1%+ 3)

600V

±(1.2%+ 5)

Capacitance

4nF/40nF/400nF/4uF/40uF/400uF

±(3%+ 5

4mF

±(5%+ 10)

Resistance

4kΩ/40kΩ/400kΩ/4MΩ

±(1%+ 5)

40MΩ

±(1.2%+ 8)

Frequency

40Hz/400Hz/4kHz/40kHz/400kHz

±(0.8%+ 8)

4MHz

±(1.2%+ 8)

Pen Length: 119mm/4.68in
Item Size: 204*39*24.4mm/8.03*1.53*0.96in
Item Weight: 65.6g

Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-2cm measuring deviation due to manual measurement.

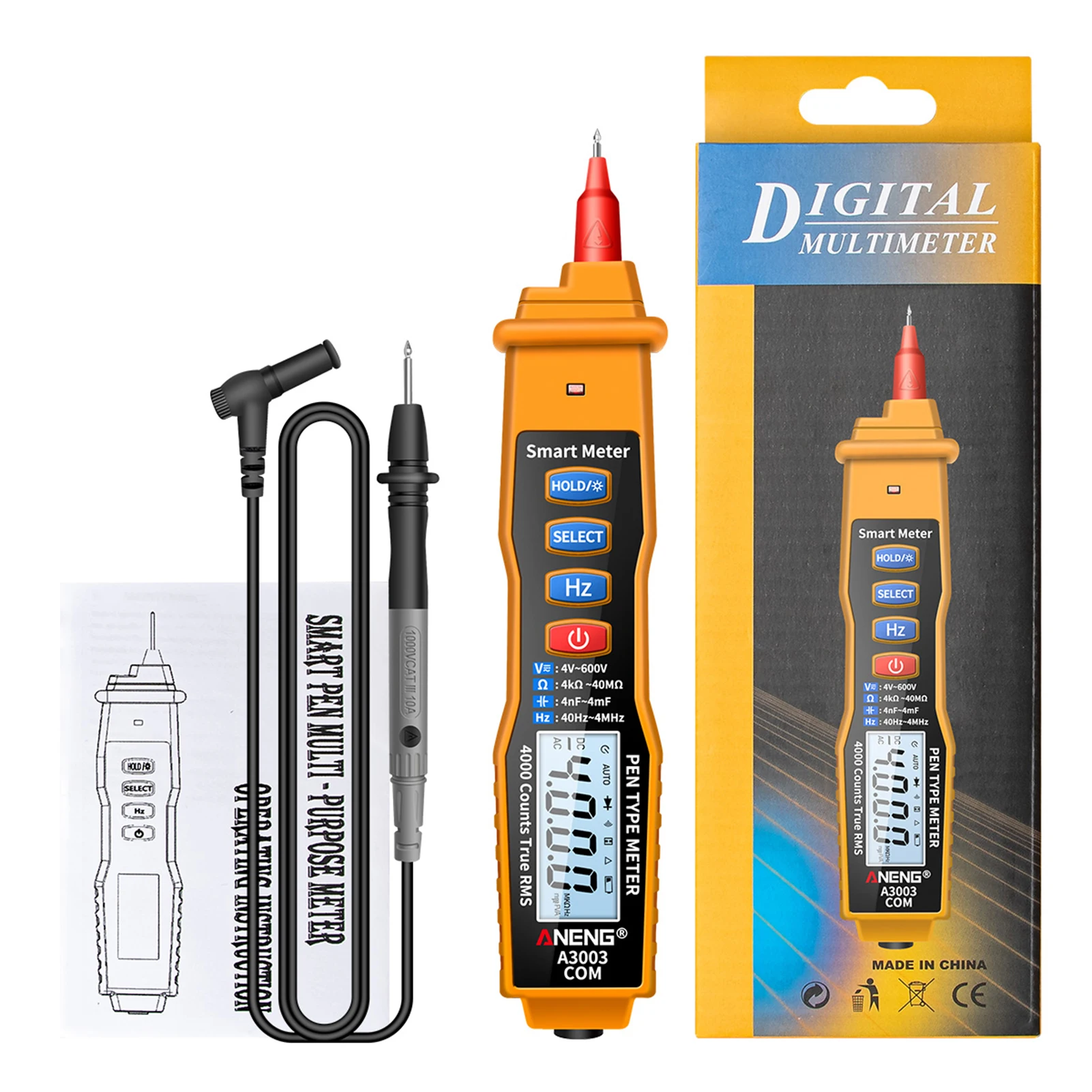

Packing List:
1 * Pen Type Digital Multimeter
1 * Test Line
1 * User Manual
