Ultra-thin High-performance Good Heat Dissipation 12/24Vdc Output Cabinet Kitchen Bookshelf Transformer Switching Power Supply |

Ultra-thin High-performance Good Heat Dissipation 12/24Vdc Output Cabinet Kitchen Bookshelf Transformer Switching Power Supply |

Features:

>> Ultra-thin fireproof design, easy to install;
>> Widely used in cabinets, bookshelves, background walls, wardrobes, exhibition halls and other places.
>> High price-effective, reliability with industry standards;
>>Built-in over voltage, over current, and short circuit protection.

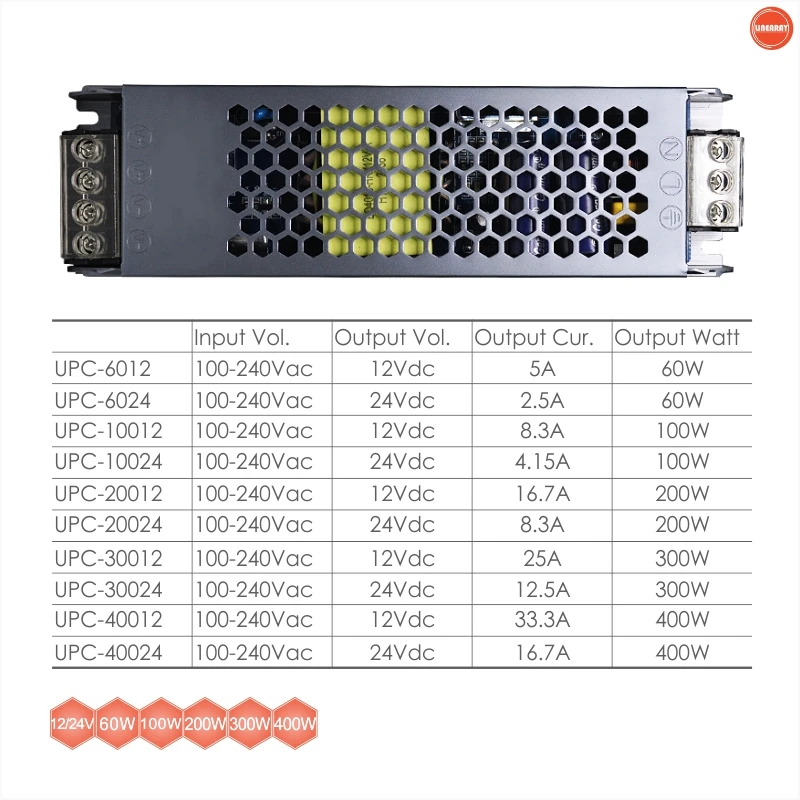

Specification:

Ultra-thin High-performance Good Heat Dissipation 12/24Vdc Output Cabinet Kitchen Bookshelf Transformer Switching Power Supply
---------------------
Name: Ultra-thin switching power supply
Input:100-240Vac 50-60Hz
Output:12Vdc/24Vdc
Power:60/100/200/300/400 Watts
Material: PCB+ Aluminum profile shell;
IP Range: IP20 For indoor using;
Ambient Humidity: 0~95% Non-Condensation;
Design: PWM Constant current and voltage design, make sure the stability and high efficiency of power supply; Anti-jamming, passed EMC test, wave less than 20MV;Constant voltage output, assume stable power supply for LED lighting to reach long lifetime.
---------------------
SKU1
1,60W (12/24Vdc output Optional);
2, Suitable outer protective packaging (plug not included)

SKU2
1,100W (12/24Vdc output Optional);
2, Suitable outer protective packaging (plug not included)

SKU3
1,200W (12/24Vdc output Optional);
2, Suitable outer protective packaging (plug not included)

SKU4
1,300W (12/24Vdc output Optional);
2, Suitable outer protective packaging (plug not included)

SKU5
1,400W (12/24Vdc output Optional);
2, Suitable outer protective packaging (plug not included)

--------------------------
Package: 24x18x4cm(Carton included)
--------------------------
More Information , Please reference as below：

New EU Regulations:

New EU regulations (Implemented from 2021-7-1)
To EU member states, in accordance with the requirements of EU organizations, the new rules have the following changes, please choose according to your needs! (Buyers from other regions or countries can ignore it!)

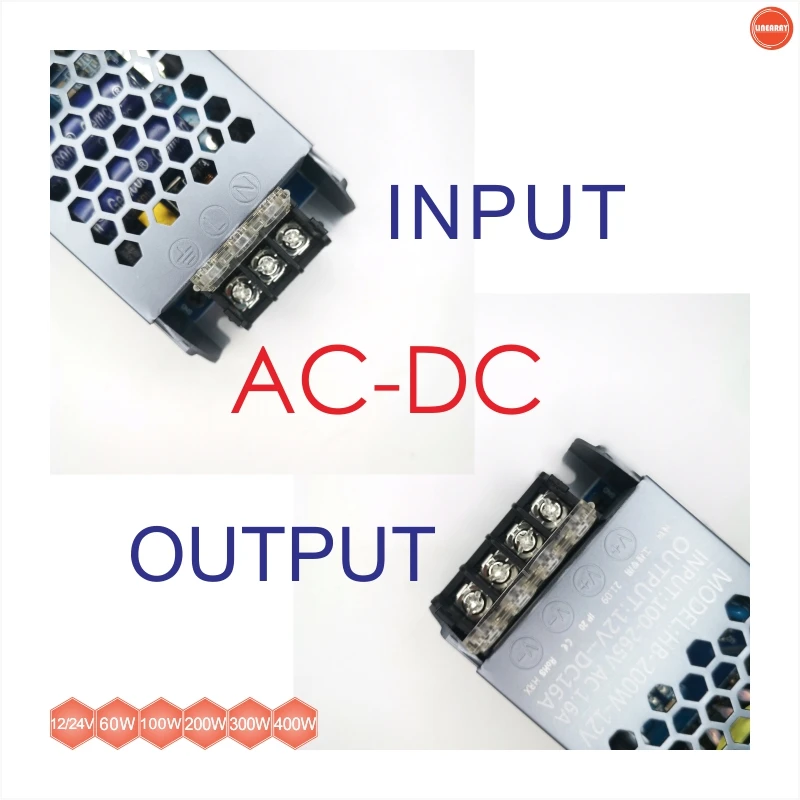

Interface Description :

>> AC Input interface: AC(100-240Vac),Terminal access
>> DC Output 12V/24Vdc , Terminal wiring, 60W (single group output); ≥100W (2 groups output)

Application Guidelines:

>> Make sure the AC input terminal is correct, otherwise it will damage the power supply;
>> Make sure to wire in an open circuit condition;
>> If a single group of light strips exceeds 5M, please connect them in parallel!

Specification Details:

>> Size information, and specifications;
>> Make sure that the maximum power of the power supply is greater than 20% of the power of the load lamps.

Application Scenarios:

>> Widely used in cabinets, bookshelves, background walls, wardrobes, exhibition halls and other places.

About Payment & Shipment & Warranty:

>>You can consult the platform for payment methods, and the platform supports a variety of different payment methods!
>>Sellers have the right to preferentially choose better transportation routes (according to actual conditions), except in special circumstances;
>>Under the correct conditions of use, we provide a 2-year quality guarantee, so you can use it with confidence!
