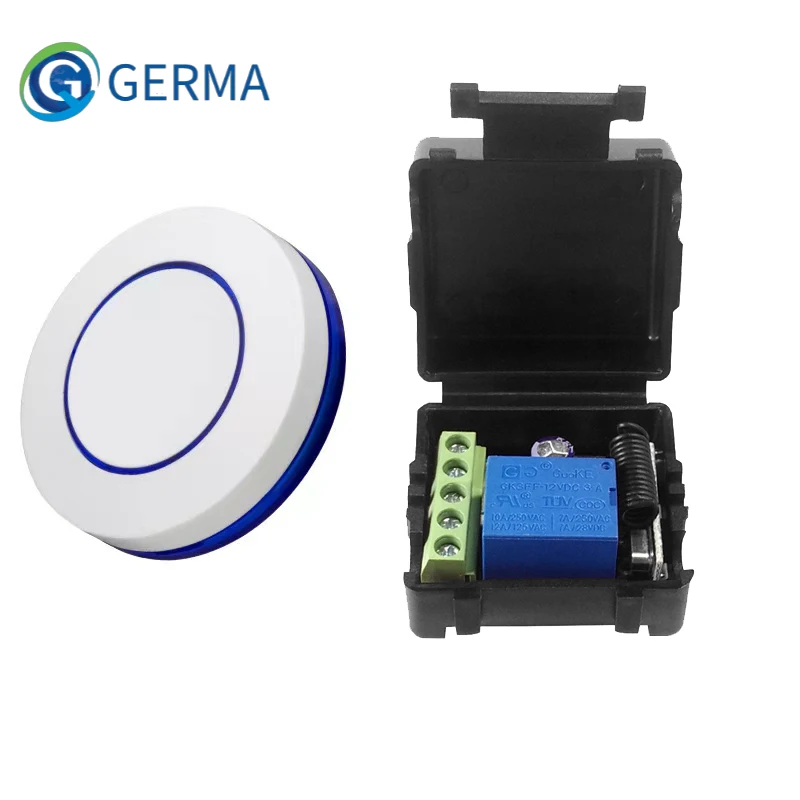

    GERMA Wireless Remote Control Switch DC 12V 1CH Relay Receiver Module 433Mhz RF Transmitter for Garage Electric Door Smart Home |

    Описание товара

      GERMA Wireless Remote Control Switch DC 12V 1CH Relay Receiver Module 433Mhz RF Transmitter for Garage Electric Door Smart Home

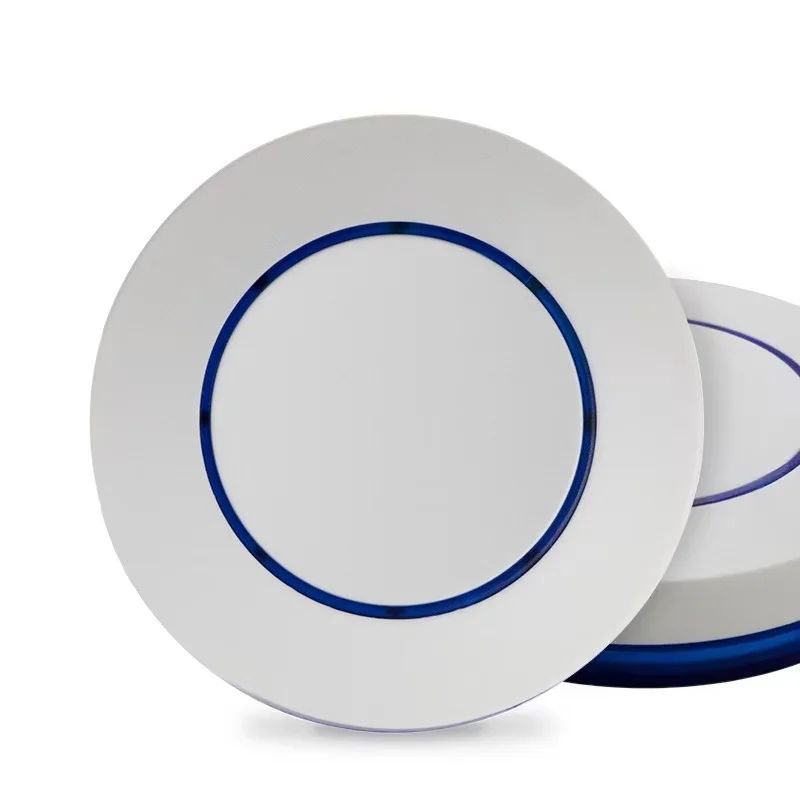

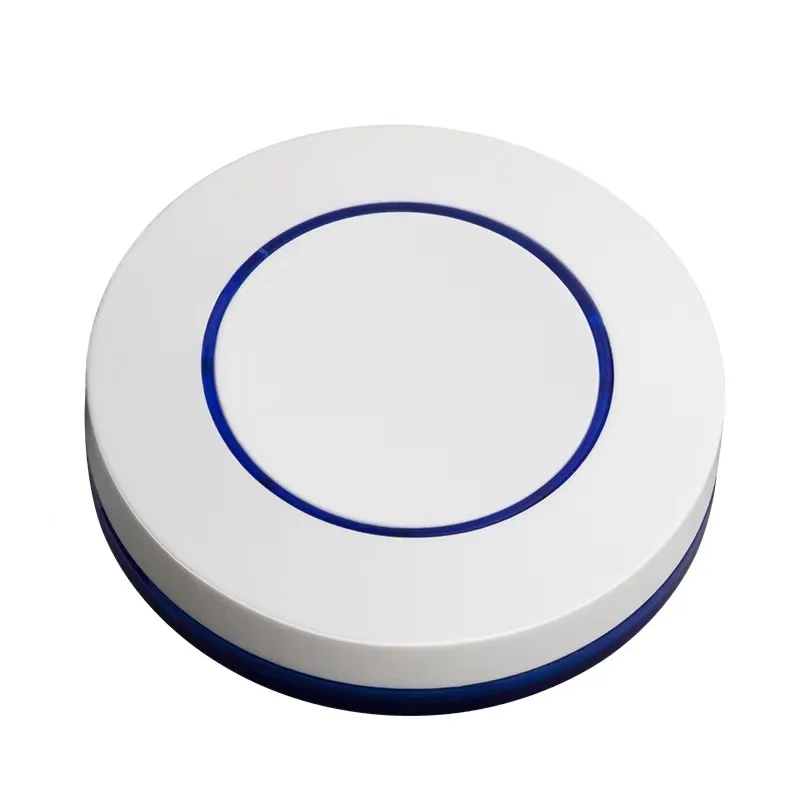

    Specifications Of The Remote Control:
    Operating RF Frequency: 433MHz. Coded System: 1527 Learning Code. Working Voltage: DC 3V. Working Current: <25mA Transmitting Power: 10mW. Wireless Operating Distance: 50m(Free Space). Transmission Rate: 50 ~ 60KHz. Frequency Deviation: +0.2MHz or -0.2MHz. Color: White. Package Weight: 30g/1.05oz.

    Technical Data Of  Receiver: Model Number:KR1201A Input voltage: 12V   Working current: 10A Maximum load power: 110W Frequency: 433Mhz Support encoding format: EV1527 Wiring method: NC COM NO Working mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s ) Wiring diagram : +V : 12V + input ; - V:  12V - input ; NO:  Output , normal open; COM:Output , common ; NC:  Output , normal close.

    About Working mode:
    Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects. Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects . Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect. Tiem delay mode :Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or 15s , the relay disconnect automatically.   Clearing the code : Push the learning button on the receivers for 8 times , the codes will be cleaned;
    After clearing the code, all the remote control cannot work any more. Operating Instrution : Learning the code :(momentary)
    Push the learning key on the receiver once time , it comes into momentary setting mode .
    Wait for a moment , the LED will be off , it comes into learning state .
    Push the remote button , LED indicator on the receiver board will flash then come off .
    After 3 seconds, the LED indicator will be on again , learning successfully .
    Learning the code : ( Toggle )
    Push the learning key on the receiver twice time , it comes into toggle setting mode
    Wait for a moment , the LED will be off , it comes into learning state .
    Push the remote button,LED indicator on the receiver board will flash then come off.
    After 3 seconds , the LED indicator will be on again , learning successfully .
    Learning the code :( Latching )
    Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for "ON", the second time learnt for "OFF".
    For example : button A = ON , button B = OFF
    Push the learning key on the receiver triple time , it comes into latching mode .
    Wait for a moment , the LED indicator on the receiver board will flash then come off.
    Push the remote button A .
    LED flash for 5 times .
    Push the remote button B .
    Led flash for 5 times .
    After 3 seconds , the LED indicator will be on again , learning successfully.
    A = ON , B = OFF .
    Learning the code :( Time delay mode )
    Push the learning key on the receiver forth time , the time dealy for 5 seconds .
    Push the learning key on the receiver fifth time , the time delay for 10 seconds .
    Push the learning key on the receiver sixth time , the time delay for 15 seconds .
    The LED indicator will be off .
    Push the remote button , LED flashes and off .
    After 3 seconds , the LED indicator will be on again , learning successfully . Note: the system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
