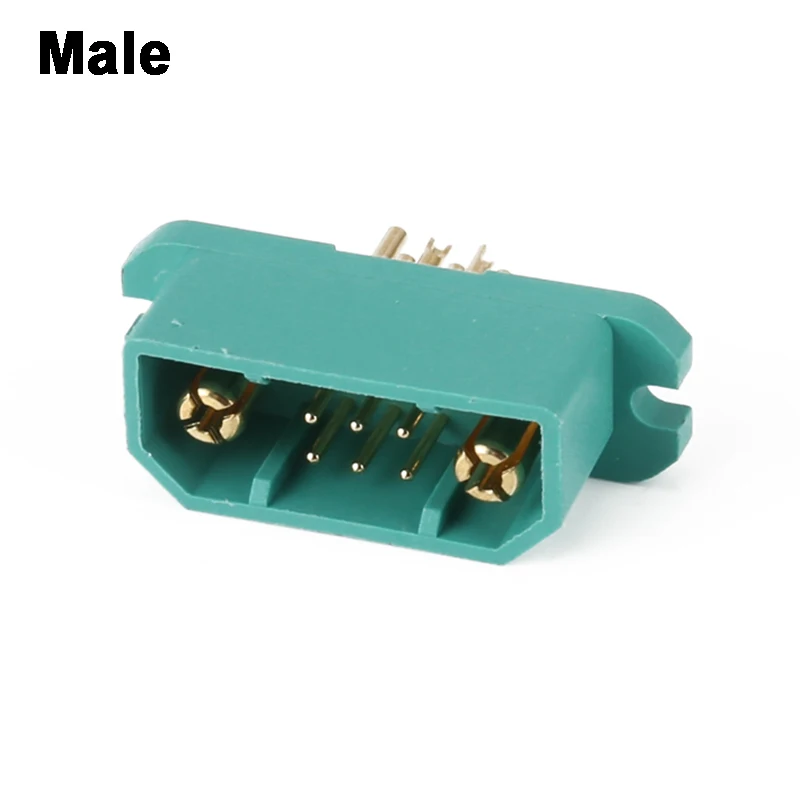

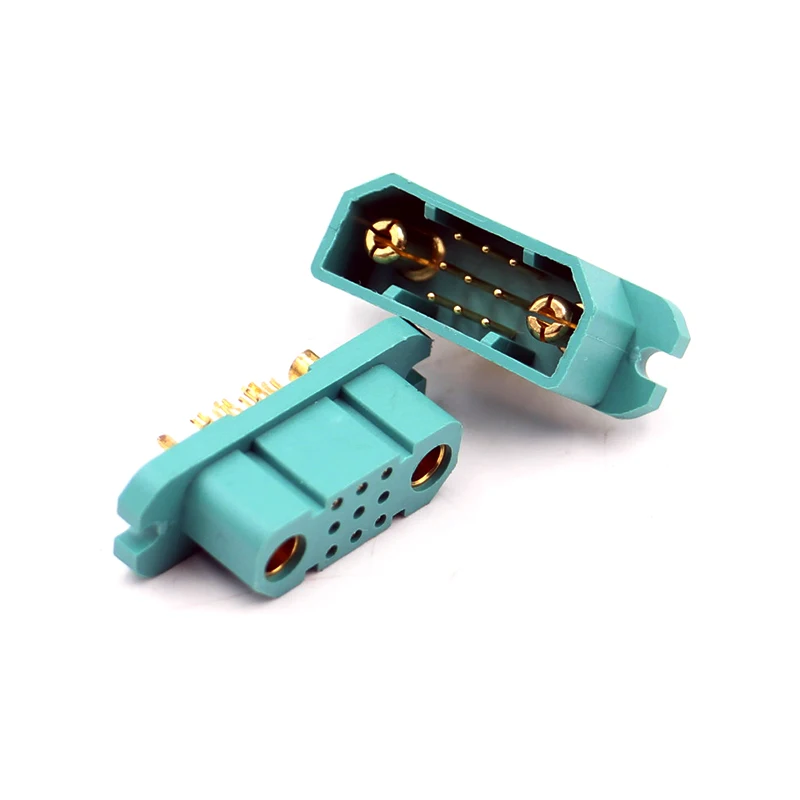

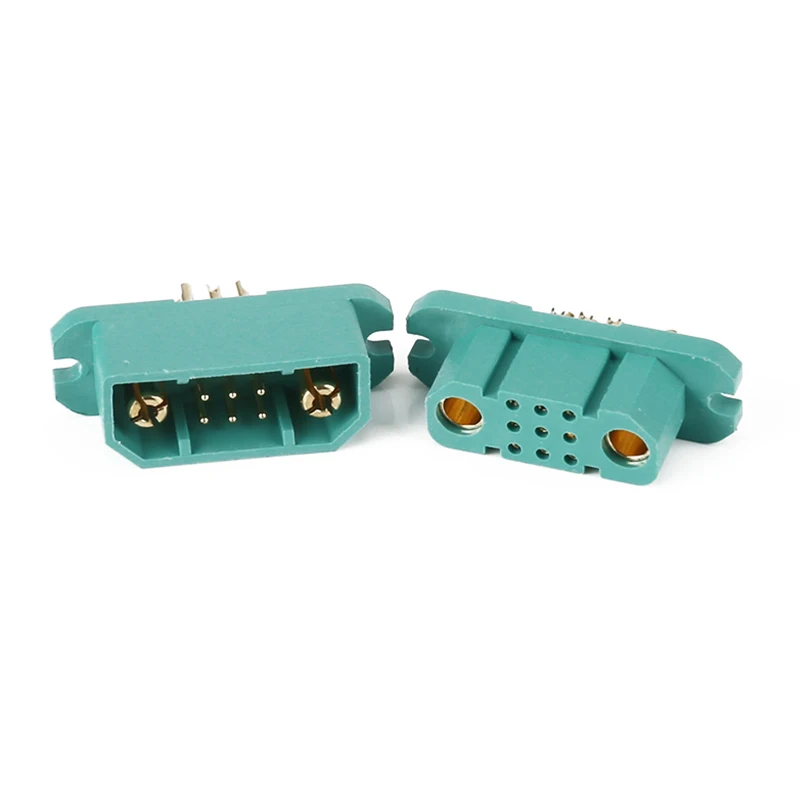

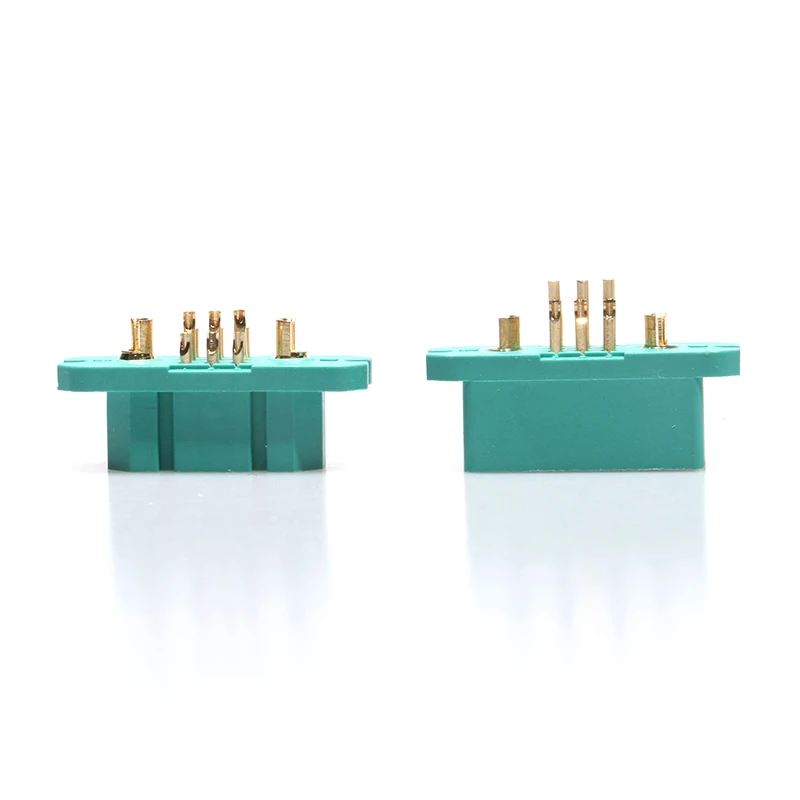

Item: MPX 9+2 7W 9 Pin with Power Male Female Plug Connector
Parameters:

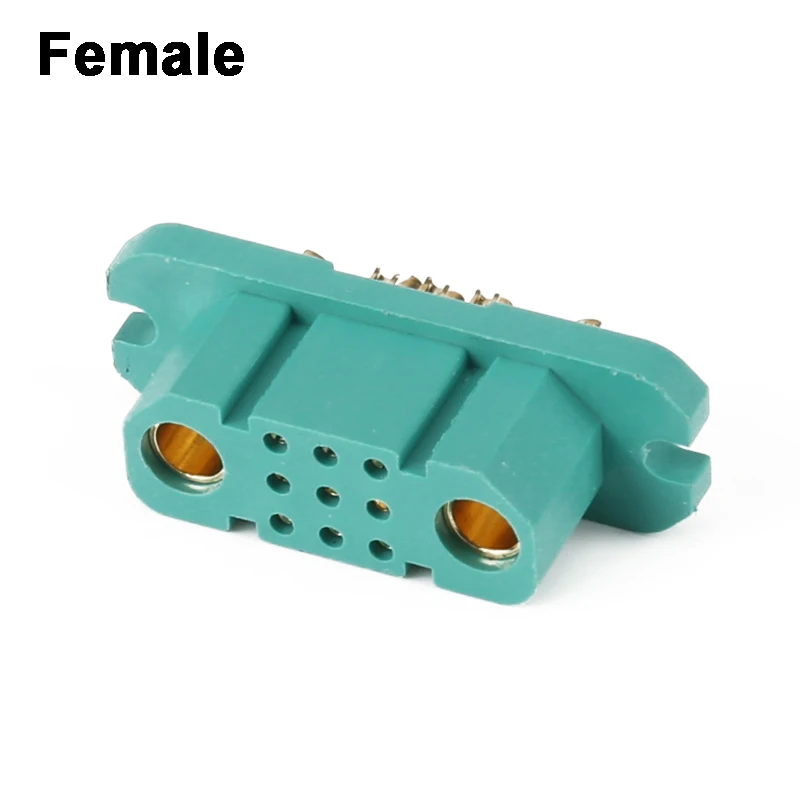

Item Name: 9+2 VTOL Connector

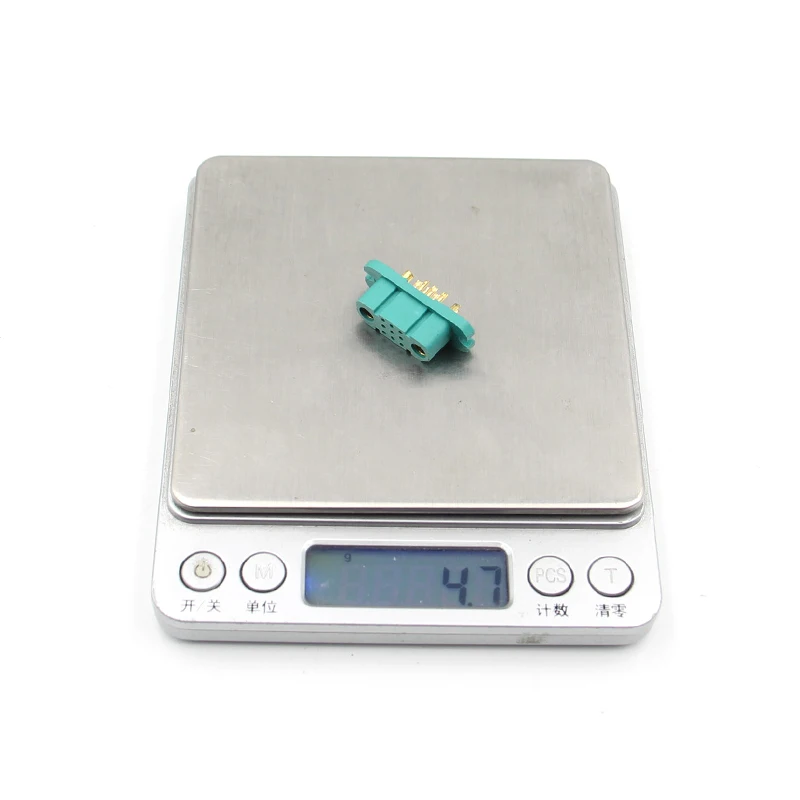

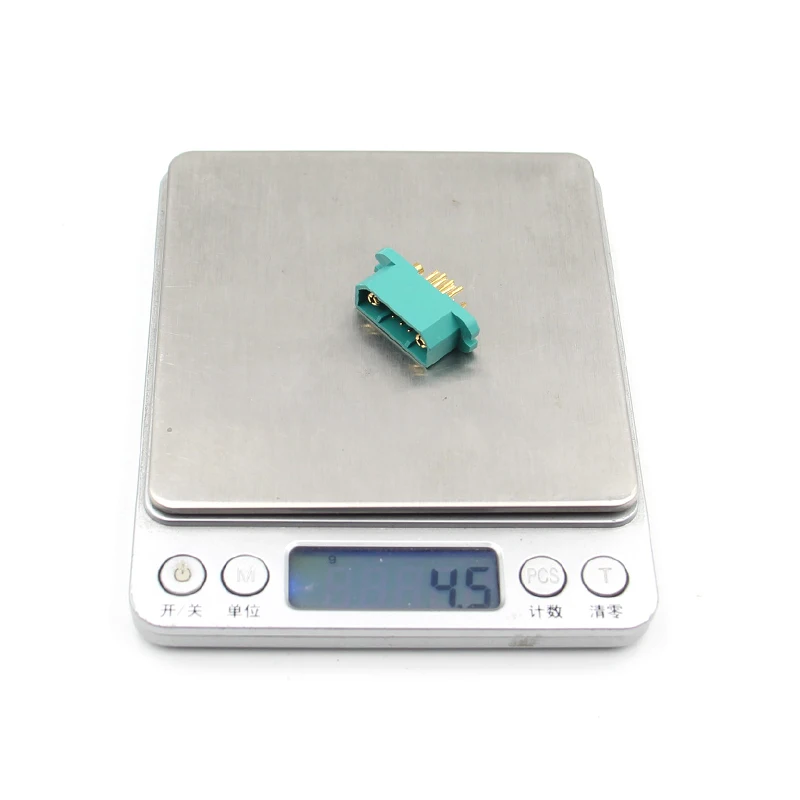

Weight: 9.2g/pair (male + female)
Type: JX-9
Metal Material: Gold Plated Brass
Plastic material: PA
Instantaneous Current: (Large) 60A/(Small) 7A.
Rated Current: (Large) 30A/(Sma1l) 5A
Rated voltage: DC 500V
Contact posture resi: 0.3mΩ
Mild flame retardant: lUL94 V0
Operating temperature: -20C ~ 120C
Recommended usage times: 1000 times
Cable Specification: (Large) 12AWG / (Small) 20AWG

Features:

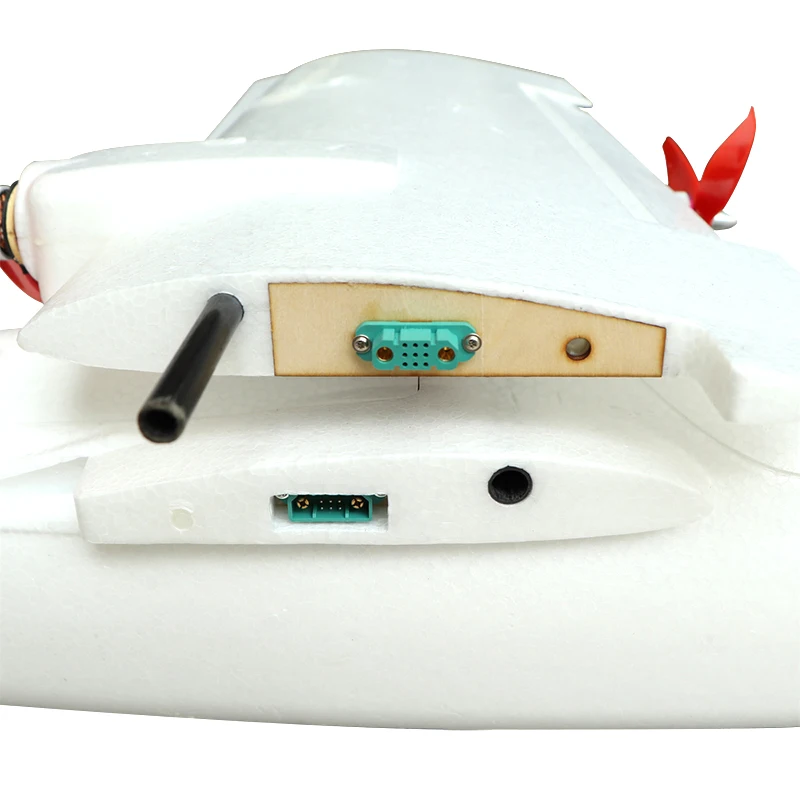

Commonly used for VTOL (Vertical Takeoff and Landing) engines and 4+1 wing engines.
In the course of wind resistance and takeoff and landing, the current is very large. Therefore, it is essential to choose this high current safety quick release connector.

Power supply current carrying instructions:

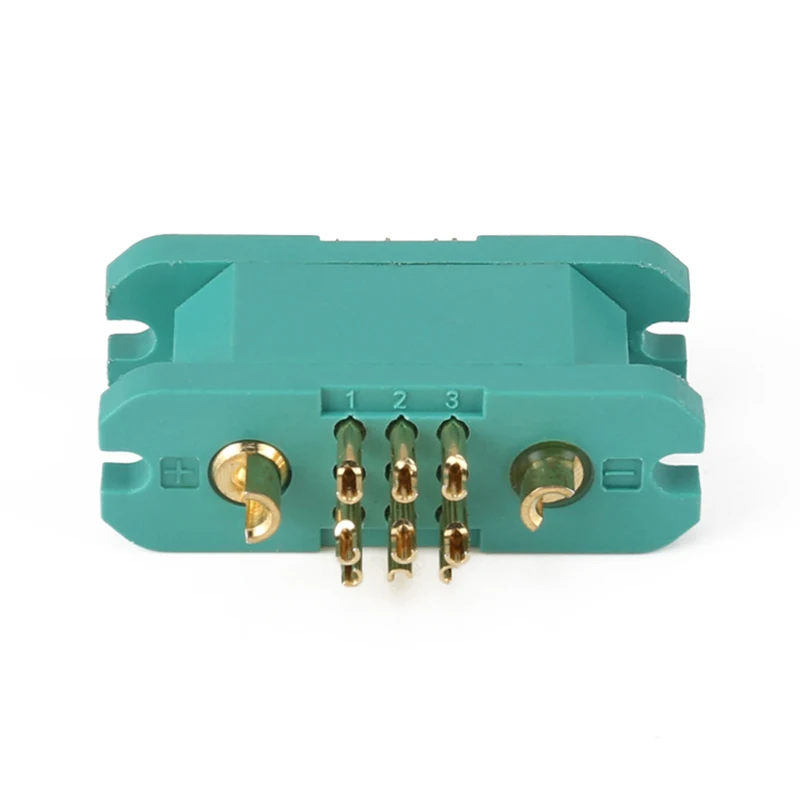

The left and right feed interface contact surface is the same thickness as our common XT60, but the rear welding port position is smaller,. Because it is considered that too large will affect the small needle in the middle.
The nominal duration is 30A. In the actual test, there was 50A for short-term takeoff and landing, and some users have reported that the maximum is 70A-80A. It shows that there is no problem in an instant or in a short time, but the long time rating is still 30a.
If you use excessive current, please test and grasp by yourself.

Install one end of the plug into the device first, and then mate with the other plug; If the plug is attached first and then installed on the device, it is difficult to separate it directly by hand.
