 LED Display High Quality Weighting Controller



1.Weight Indicator summary

SRK-CHB is a force display instrument. With gross, net, the peak, valley value display, can always switch
2 Road output
6 kinds of optional alarm mode, peak to valley values using 2 comparative value as a threshold value. When the real-time weight exceeds the peak threshold value for the peak. When the real-time weight below the valley threshold valley value comparison.
With automatic zero tracking, stability criterion function, automatic reset function

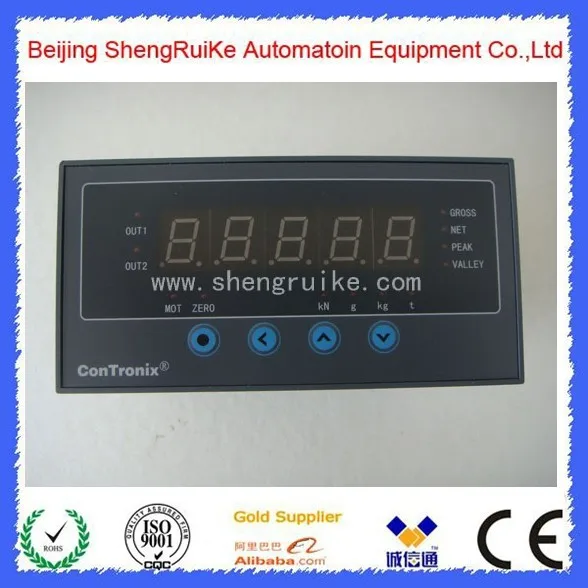

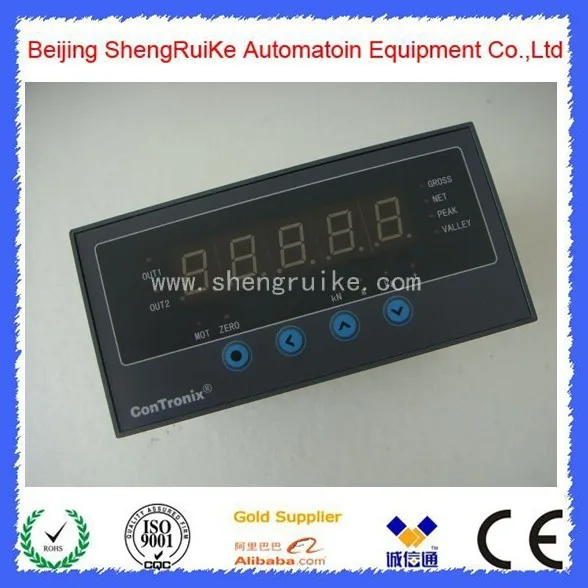

Indicator definition: 12 indicating lamps, alarm 1, alarm 2, stability, zero, gross value, net value, the peak value, valley value, t,kg,g,kN.



2.Weight Indicator Model specification

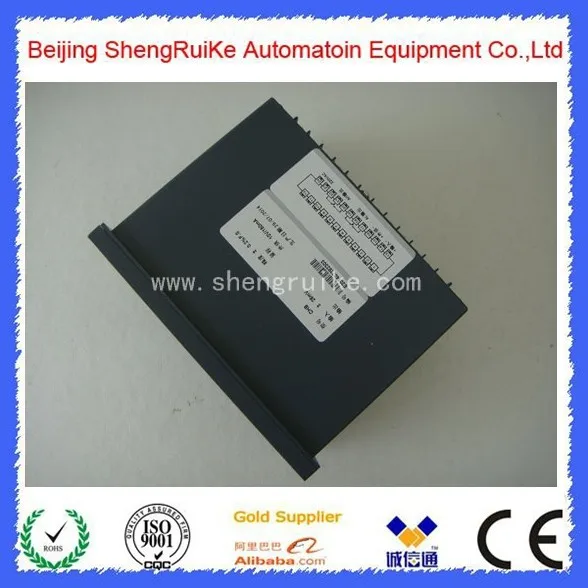

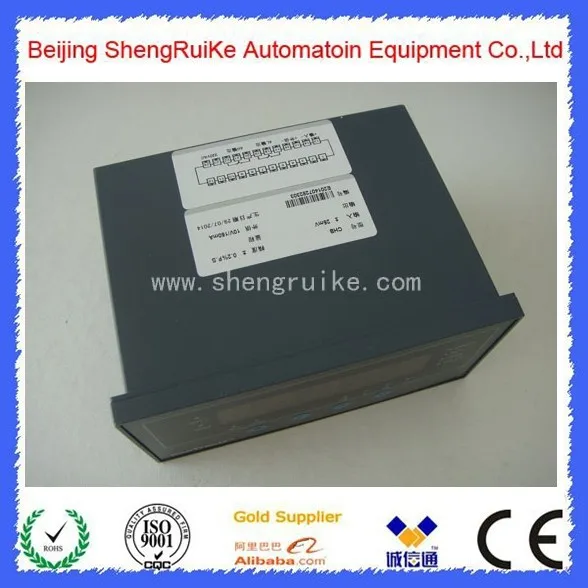

Dimension horizontal type 160(W)×80(H)×125(L) Display red LED single significant 5 bits Input signal ± 25mV signal External power supply 10V/150 mA Power supply 200V/AC



3.Technical specifications

Power supply 85~265VAC,50Hz,7.5W The use of the environment 0~50 °C 10~85%RH(No condensation) Digital display 5 red LED display Indication range -19999~50000,Overload display O.L Display scale division   1,2,5   The decimal point 5 different positions can be selected   The sensor voltage   10V/150mA Input signal 0~±25mV Sampling rate 10 times / sec Maximum display index number 10000

When the power is on display countdown 9~0 boot screen
Automatic power-on reset

reset range depends on the  Eror  the range of parameters Comparison of control output 6 more ways, by setting
