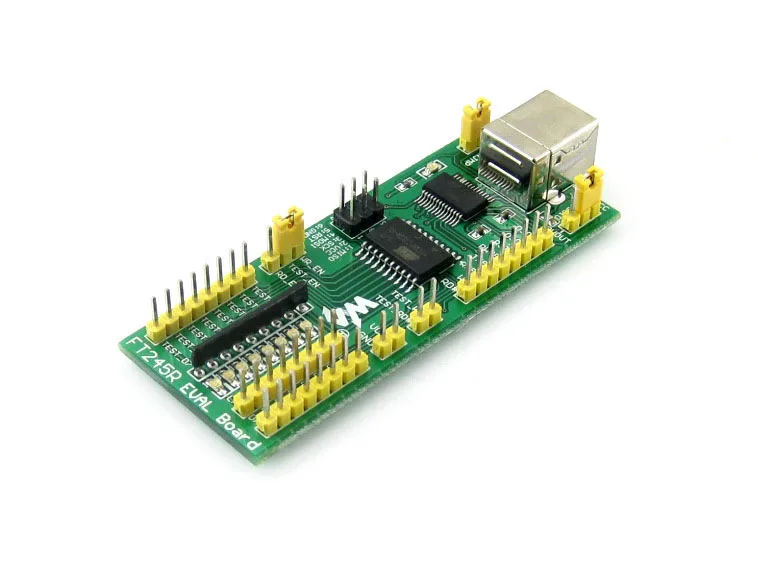

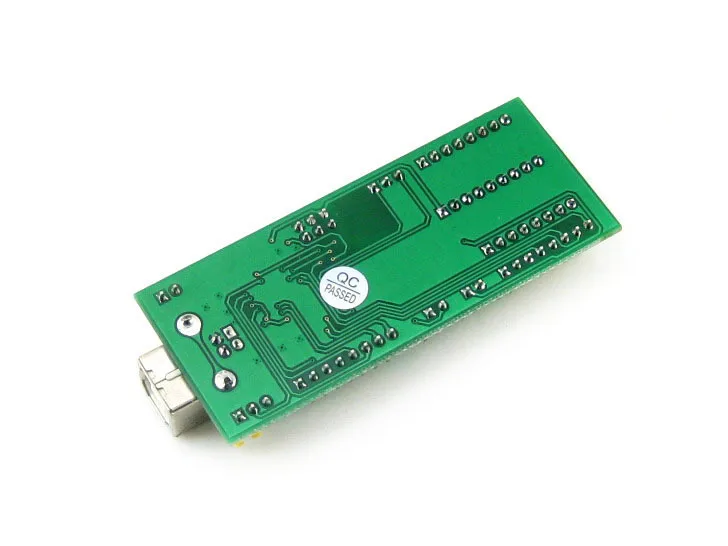

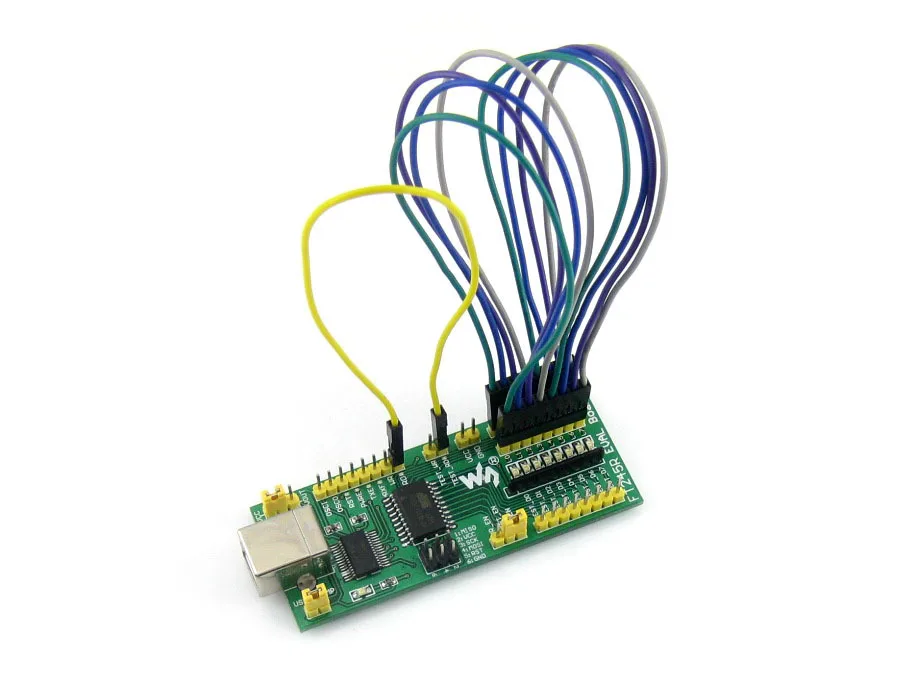

Evaluation Board Based on FT245, A High-performance Cost-effective Solution for USB TO 8-BIT FIFO

Overview

The FT245 EVAL BOARD provides a high-performance cost-effective solution for USB TO 8-BIT FIFO. It is based on the FT245RL chip and will hopefully allow to try out the full potential of the FT245 device before using it in your prototype.

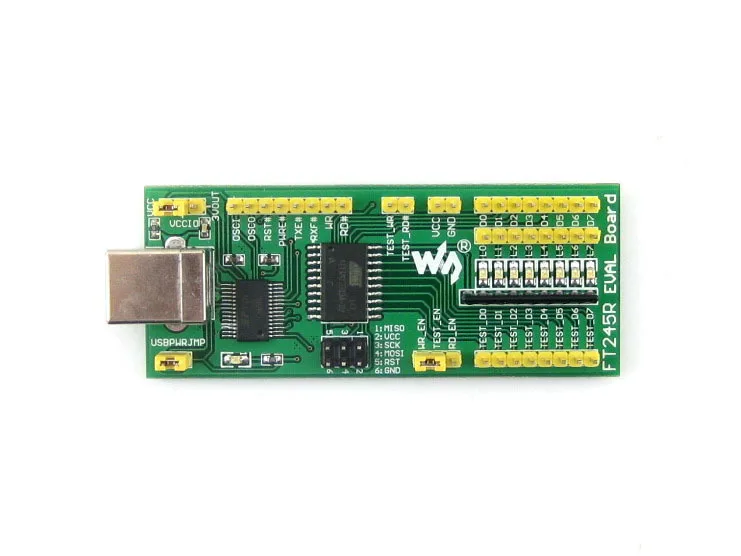

What\\\'s on board

Power

* Powered from USB bus or external power supply

* USBPWRJMP: jumper for selecting USB or external power supply source, short it for USB and open it for external

* VCC, GND pin headers

* Voltage level is configurable via on-board jumper, VCC or 3.3V

Onboard Chips

* FT245RL, USB to parallel FIFO interface device

* ATtiny2313, 8-bit AVR Microcontroller with 2K Bytes In-System Programmable Flash

Interfaces

* USB connector

* 6-pin ISP programming port

Human to Machine Interface

* 8 data displaying LEDs

Others

* WR_EN, RD_EN: Read/Write enable port, which is connected to MCU pins

* TEST_WR, TEST_RD#: Read/Write test port, which is connected to MCU pins

* Controlling port of the FT245 are connected to pin headers, convenient for development

Features

The FT245RL is a USB to parallel FIFO interface device which simplifies USB to FIFO designs and reduces external component count by fully integrating an external EEPROM, USB termination resistors and an integrated clock circuit which requires no external crystal, into the device. It has been designed to operate efficiently with a USB host controller by using as little as possible of the total USB bandwidth available.

* Functional Integration.

* Asynchronous Bit Bang Mode.

* Synchronous Bit Bang Mode.

* FTDIChip-ID.

* High Output Drive Option.

* Programmable FIFO RX Buffer Timeout.

Schematic

Resources

1. User Guide CD (CD with software, drivers, and examples)

2. USB Driver (FTDI\\\'s royalty-free Virtual Com Port (VCP) driver, Direct (D2XX) driver)

3. Examples (AVR MCU controlling examples in C)

4. Schematic (Designed by using PROTEL99, and providing IMG format or Protel SchDoc format)

5. Datasheet PDF of Related Chips

Package Contains

1. FT245 EVAL BOARD

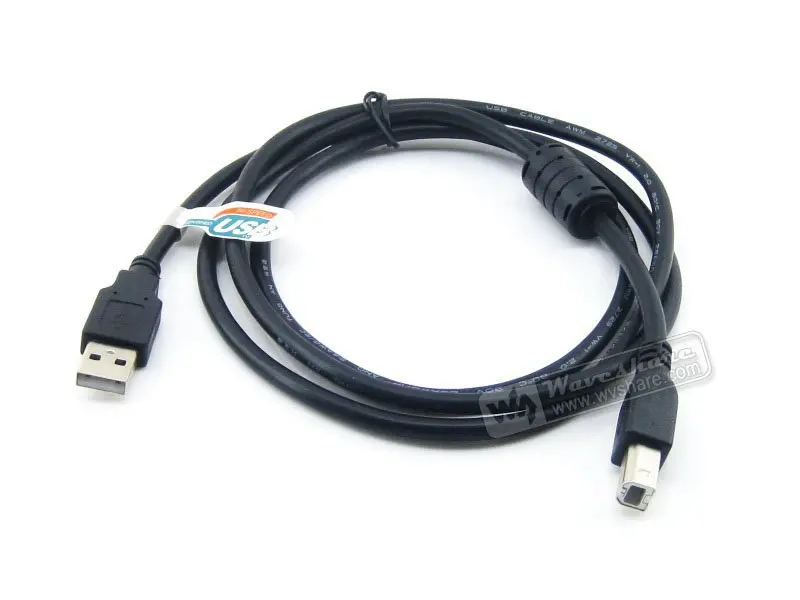

2. USB Cable

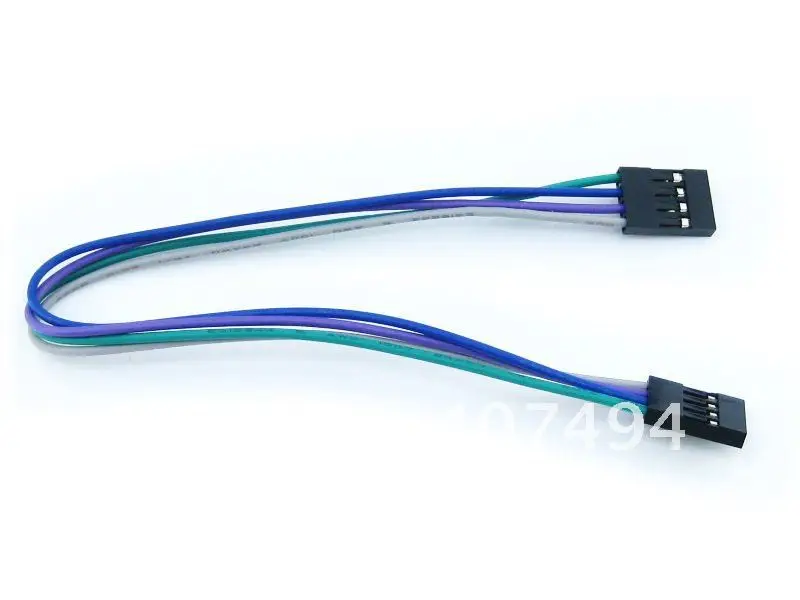

3. 4-pin wire x 2

4. 2-pin wire x 2

5. User Guide CD
