Debugging/Programming:supports JTAG

FPGA development board designed for ALTERA Cyclone III series, features the EP3C16 onboard, and integrates various standard interfaces, pretty easy for peripheral expansions. Overview

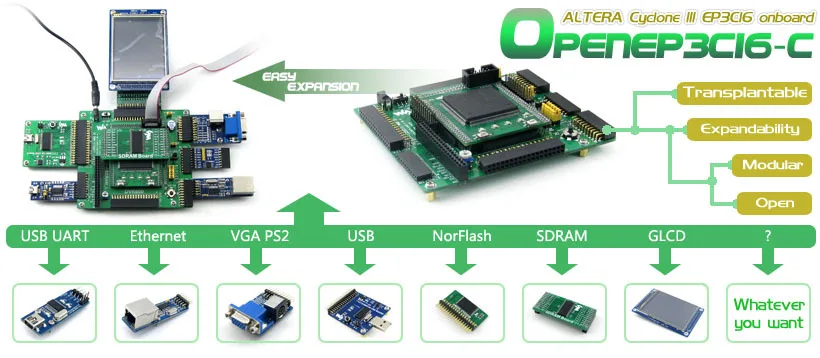

OpenEP3C16-C is an FPGA development board that consists of the mother board DVK600 and the FPGA core board CoreEP3C16.

OpenEP3C16-C supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with ALTERA Cyclone III series FPGA devices. OpenEP3C16-C enables you to start your design with the Nios II processor easily and quickly.

---

What\\\'s on the mother board FPGA CPLD core board connector: for easily connecting core boards which integrate an FPGA CPLD chip onboard 8I/Os_1 interface, for connecting accessory boards/modules 8I/Os_2 interface, for connecting accessory boards/modules 16I/Os_1 interface, for connecting accessory boards/modules 16I/Os_2 interface, for connecting accessory boards/modules 32I/Os_1 interface, for connecting accessory boards/modules 32I/Os_2 interface, for connecting accessory boards/modules 32I/Os_3 interface, for connecting accessory boards/modules

All the I/O interfaces above:

capable of being simulated as USART, I2C, SPI, PS/2, etc. capable of driving devices such as FRAM, FLASH, USB, Ethernet, etc. SDRAM interface for connecting SDRAM accessory board also works as FPGA CPLD pins expansion connectors LCD interface, for connecting LCD22, LCD12864, LCD1602 ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc. 5V DC jack Joystick: five positions Buzzer Potentiometer: for LCD22 backlight adjustment, or LCD12864, LCD1602 contrast adjustment Power switch Buzzer jumper ONE-WIRE jumper Joystick jumper

For jumpers 17-19:

short the jumper to connect to I/Os used in example code open the jumper to connect to other custom pins via jumper wires

The DVK600 supports a wide range of different core boards, therefore, some of the interfaces may be Not-Connected and useless while connecting to certain core board.

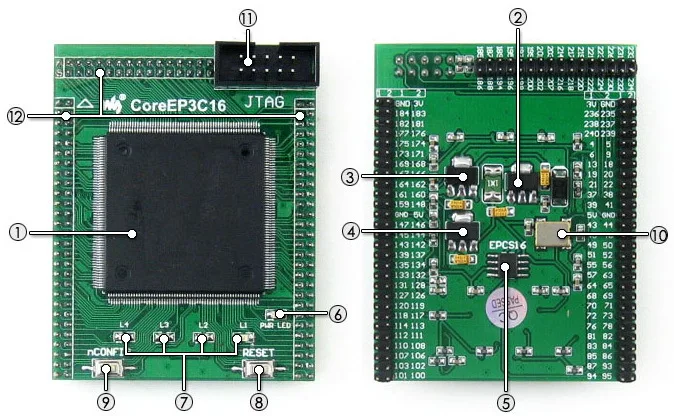

What\\\'s on the CoreEP3C16 EP3C16Q240C8N: the ALTERA Cyclone III FPGA device which features: Operating Frequency: 50MHz Operating Voltage: 1.15V~3.465V Package: QFP240 I/Os: 136 LEs: 15408 RAM: 504kb PLLs: 4 Debugging/Programming: supports JTAG AMS1117-3.3, 3.3V voltage regulator AMS1117-2.5, 2.5V voltage regulator AMS1117-1.2, 1.2V voltage regulator EPCS16, onboard serial FLASH memory, for storing code Power indicator LEDs Reset button nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting 50M active crystal oscillator JTAG interface: for debugging/programming FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion

---

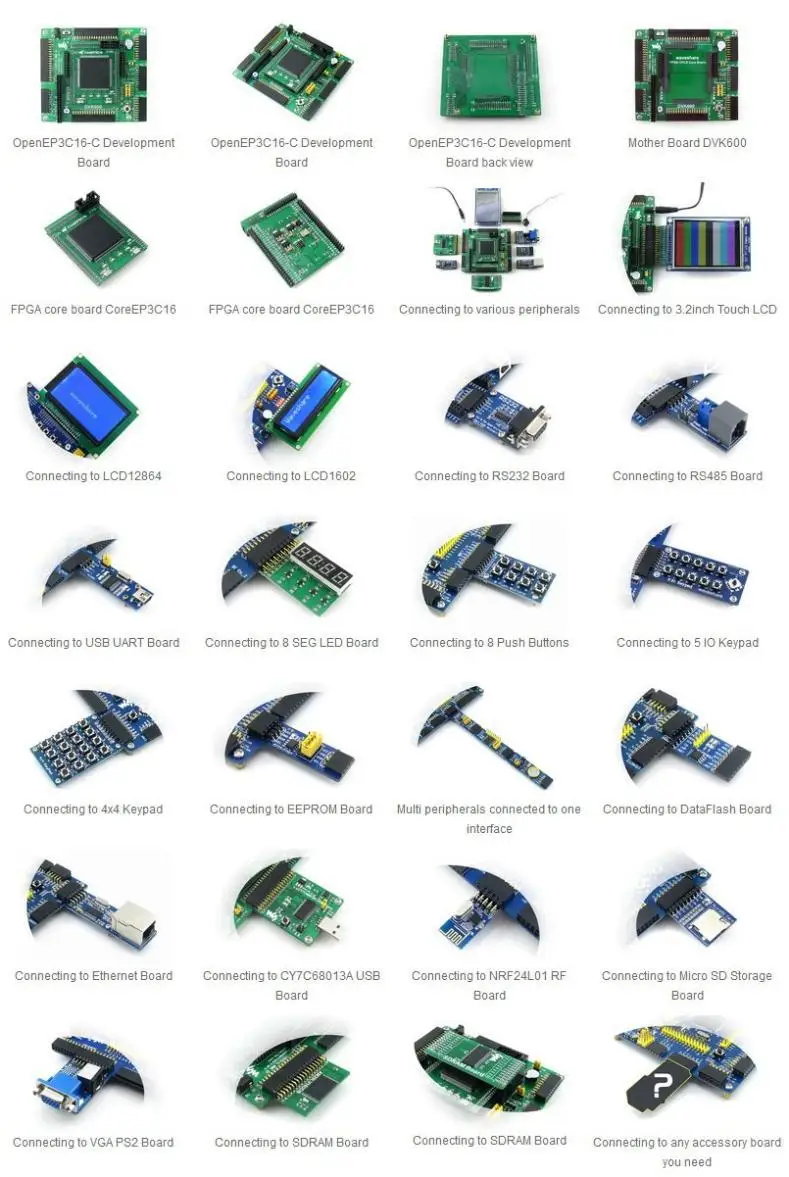

Photos

Note: The OpenEP3C16-C does NOT integrate any programming/debugging function, a programmer/debugger is required.

---

Examples

The OpenEP3C16-C FPGA development board comes with various examples codes for the supported peripherals, which give you a quick start to develop your own application.

Peripheral Description Interface Verilog VHDL NIOS II C S29GL128P NorFLASH 32I/Os     Y AT24CXX EEPROM I2C       FM24CXX FRAM I2C       AT45DBXX DATAFLASH SPI       SD card FLASH SPI       H57V1262GTR SDRAM parallel       PCF8563 RTC I2C       DS18B20 Temperature sensor 1-WIRE       SP3232 Serial communication UART       SP3485 Serial communication UART       PL2303 USB TO UART UART       FT245 USB TO FIFO parallel       CY7C68013A USB DEVICE I/Os       ENC28J60 Ethernet controller SPI       Buzzer Sound device 1I/O (PWM)       PS/2 keyboard Input device PS/2       Single buttons Input device ----       4x4 keypad Input device 8I/Os       Joystick Input device 5I/Os       LED Display device ----       8 SEG LED Display device 13I/Os       VGA monitor Display device VGA       Character LCD Display device 11I/Os       Graphic LCD Display device 11I/Os       3.2 inch multi-color LCD + touch screen Display device + Input device 32I/Os

---

Debugging/Programming Interface

The OpenEP3C16-C FPGA development board integrates JTAG interface for programming/debugging.

JTAG Signal Names & Description Pin Signal Name Description 1 TCK Clock signal 2 GND Signal ground 3 TDO Data from device 4 VCC(TRGT) Target power supply 5 TMS JTAG state machine control 6 NC No connect 7 NC No connect 8 NC No connect 9 TDI Data to device 10 GND Signal ground JTAG Header Pinout

---

Development Resources

The User Guide CD includes development resources listed as follow:

Related Software (Quaters II, NIOS II etc.) Demo Code (Verilog, VHDL and NIOS II C) Schematic (PDF) FPGA Development Documentations (Datasheets etc.)

---

Package Contains OpenEP3C16-C development board x 1 4-pin wire x 2 2-pin wire x 2 USB power cable x 1 User guide CD x 1 1 2 3 4 5

---
