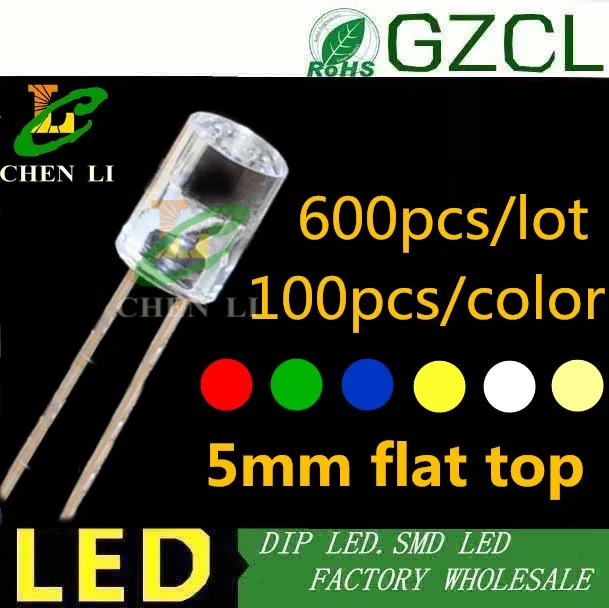

 5mm DIP LED red/green/blue/yellow/white/warm white without fringe flat top led water clear LED light diode

Note:this link is 6colors led with red,green,blue,white,warm white,RGB fast color changing,orange,pink,uv.

if you need other type and other quantity,pls let us know,thanks!!!

Diode Feature

Material:AlGaInP

Absolute Maximum Rating at Ta =25°C

Power Dissipation: 100 mW

Peak Forward Current:100mA

(1/10 Duty.Cycle.0.1ms Pulse width)

Continuous Forward Current:35mA

Derating Linear From 50°C :0.4mA/°C

Reverse Voltage:5V

Operating Temperature Range:-40°C to +80°C

Storage Temperature Range :-40°C to +80°C

Lead Soldering Temperature:260°C for 5 Seconds

 Super high intensity luminosity: 100-2,000mcd
 Current voltage: 1.9-3.8V
 Current electricity: 20mA
 Angles: 25-120degrees

this price is short legs:17mm 15mm

other type is 27mm(+) and 25mm( -),if need long legs pls add 1USD for extra fee.
