DS-KV8102-1A Cabin bottom box, IC card entrance guard read head, 1.3 million pixels wide dynamic 120 ° wide Angle lens Single button the door machine,

The machine can achieve the call more indoor machine model, or more than the door machine call many sets of indoor machine model, support the door machine directly authorized user card, call captured images, control of electric locks the door machine support.Can be added to the hik NVR video directly

Support visual intercom

l high-definition monitor (1280 x 720 largest 25 FPS resolution, wide dynamic, 120 - degree wide Angle)

l smart fill light

l support access control functions

l support local card function

l the lock snapped pictures upload automatically

l support the elevator linkage

l alarm (magnetic door alarm, tamper alarm)

l hardware noise suppression and echo cancellation, ensure the quality of voice clear and bright

l engineering installation convenience

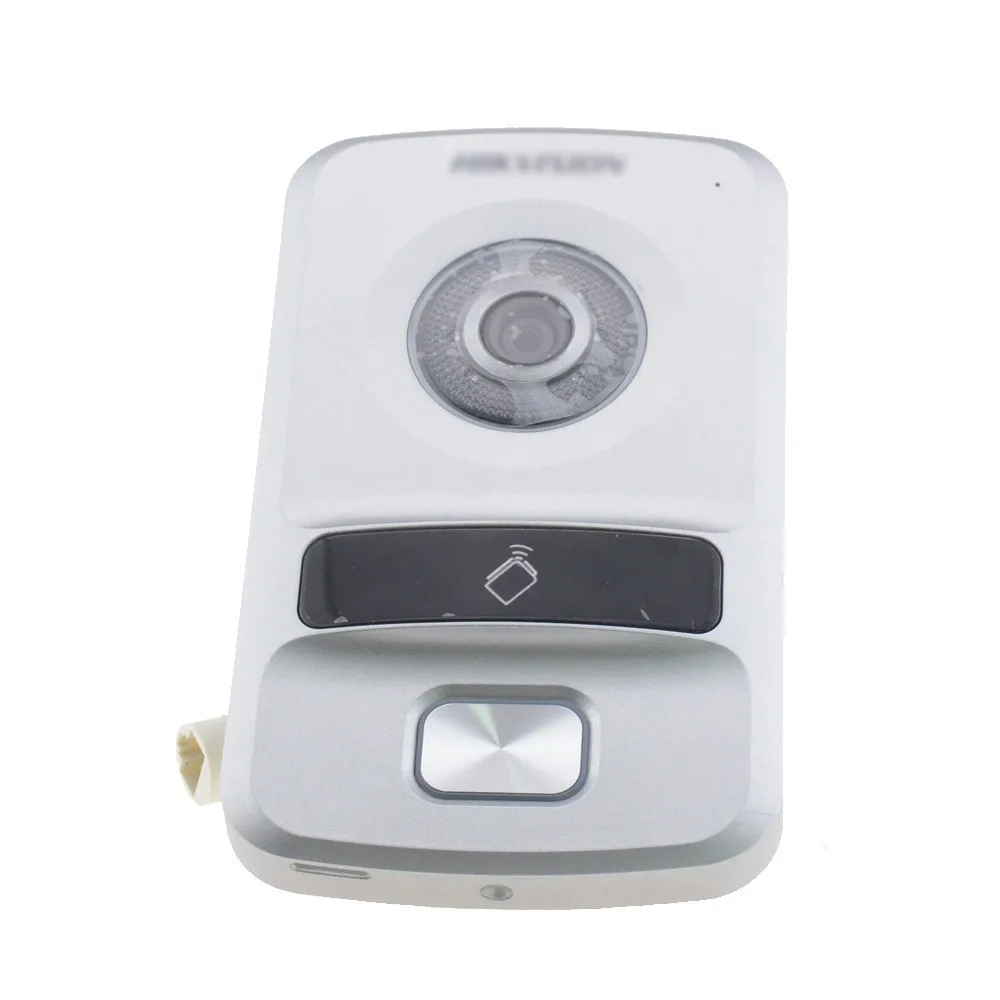

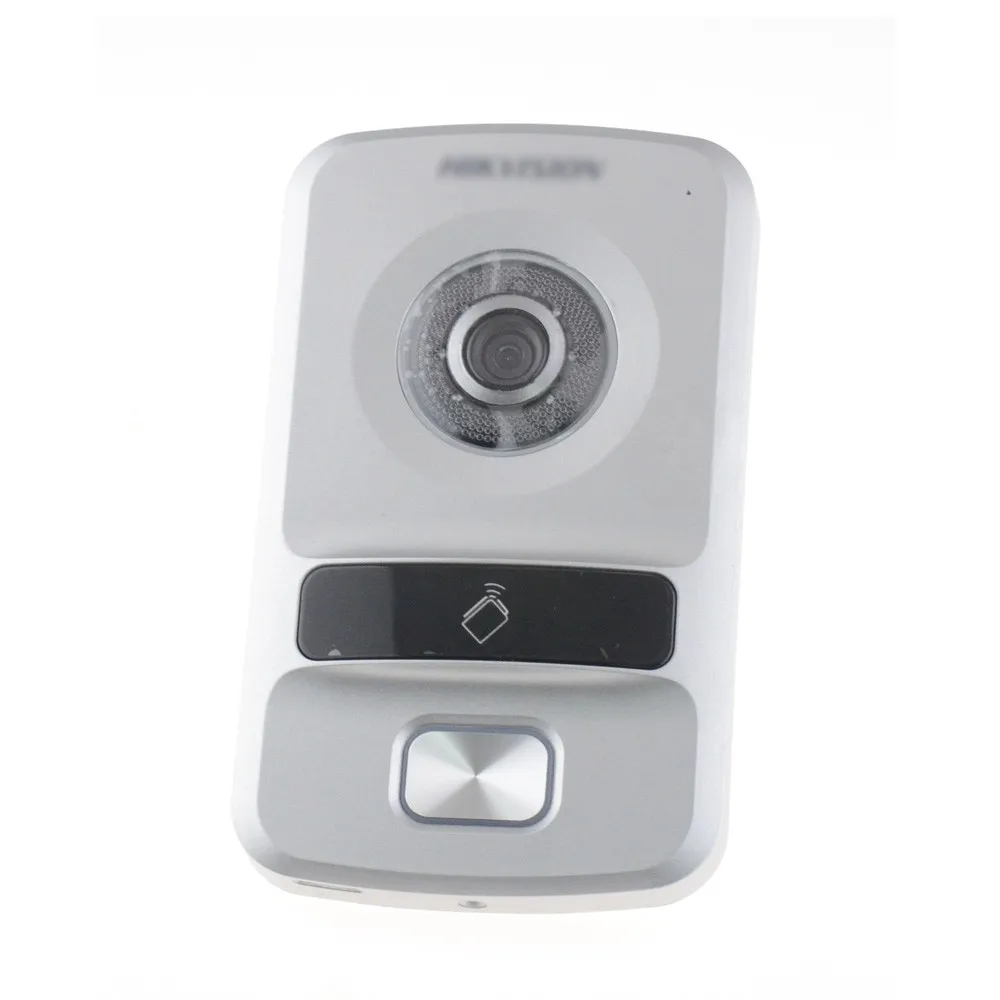

DS-KV8102-1C

System

Image Sensor:         | High-performance embedded processor SOC processors

Operating system:     | Embedded Linux operating system

Video

Lens:             | 130 w pixel cameras, CMOS low illumination high-definition color video camera

Video Compression: | H.264

Resolution:         | 1280x720

Frame Rate:         | 25fps

Fill light:             | Infrared light compensation

Audio

Audio Input:         | Built-in all point to the microphone

Audio Output:         | Built-in speakers

Audio Compression: | G.711U

Audio bit rate:         | 64Kbps

Sound quality:         | support for noise suppression and echo cancellatio

Access control

Built-in card reader: | Built-in IC card reading head

Door magnetic detection:| Detect door magnetic switch state

Open button:         | Through the open button to open the door

Audio bit rate:         | 64Kbps

Normally open /closed:  | support setting normally open/closed

Network

Ethernet:             | 10 m / 100 m adaptive

Protocols:         | TCP/IP,SNMP,SIP,RTSP

Alarm

Alarm Input:         | Tamper proof, magnetic door detection

Interface

Communication Interface: | 1 RJ45 10M/100M Ethernet port

RS485:             | 1  RS485 full- duplex

I/O input:             | 4

I/O Output:         | 1

General

Operating Conditions: | -40 °C ~ 70 °C

Humidity             |   Working humidity 10% to 90%

Power Supply:         | 12 VDC ± 10%, PoE (802.3af)

Power Consumption: | Max. 10 W

Protection grade:     | IP65

Dimensions:         | 182 mm × 100 mm × 32.5 mm

step1_Active:Open the ivms-4200. Activate the device.

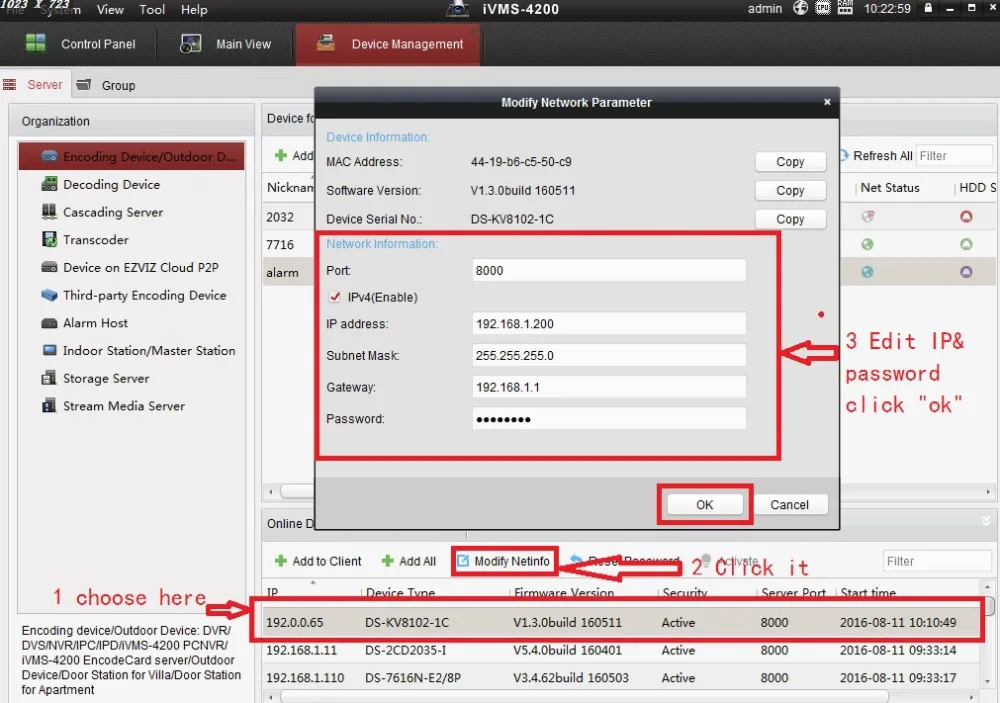

step2_Edit NET Parameters:

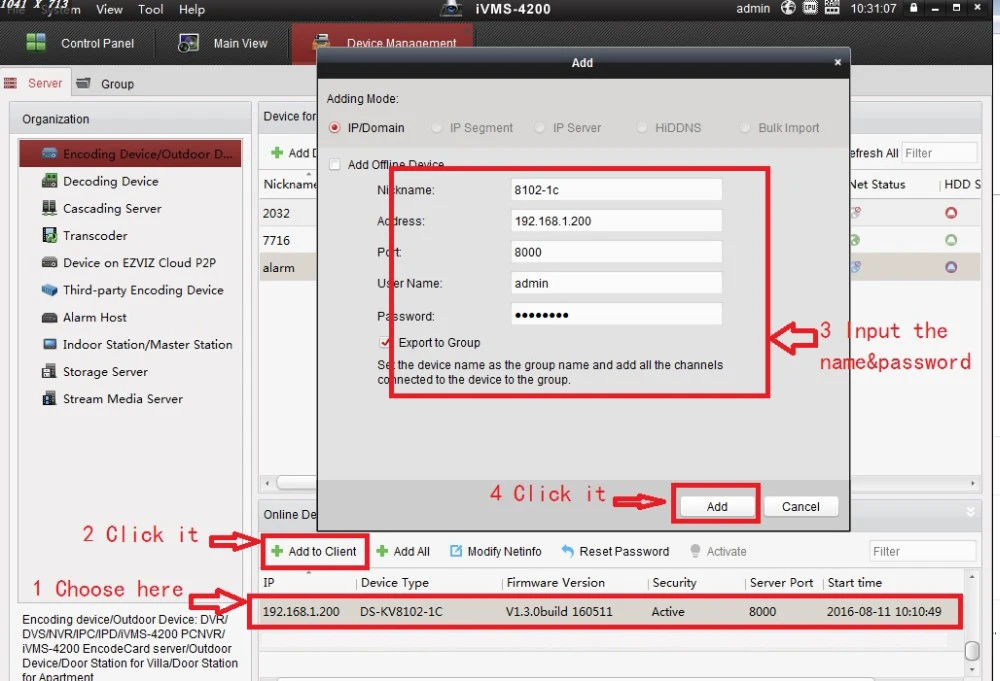

step3_Add to Device List:

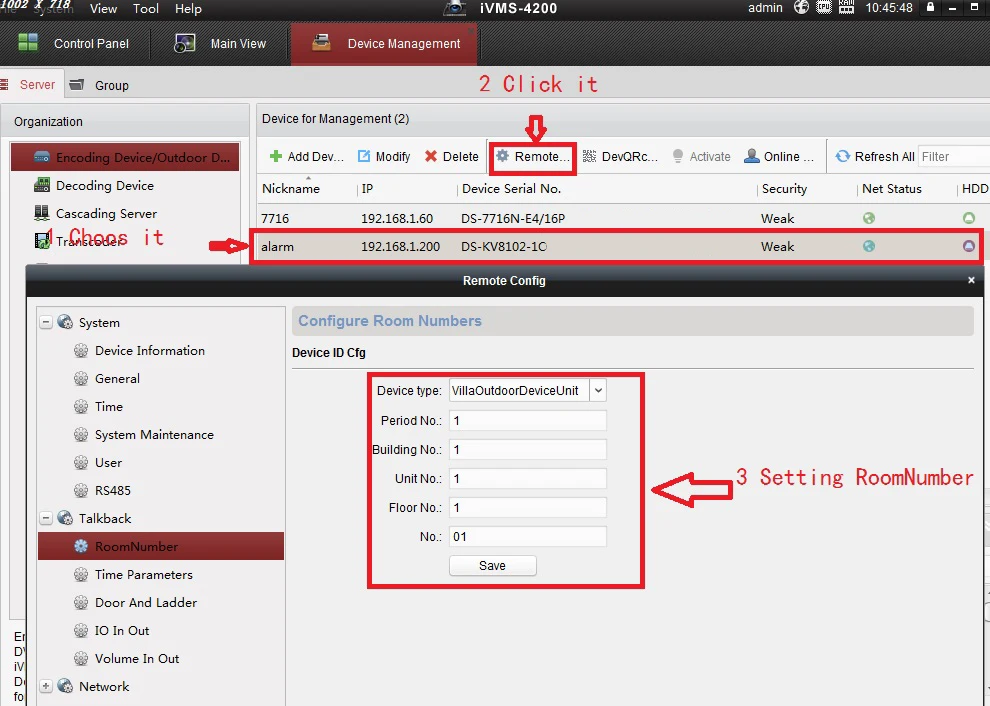

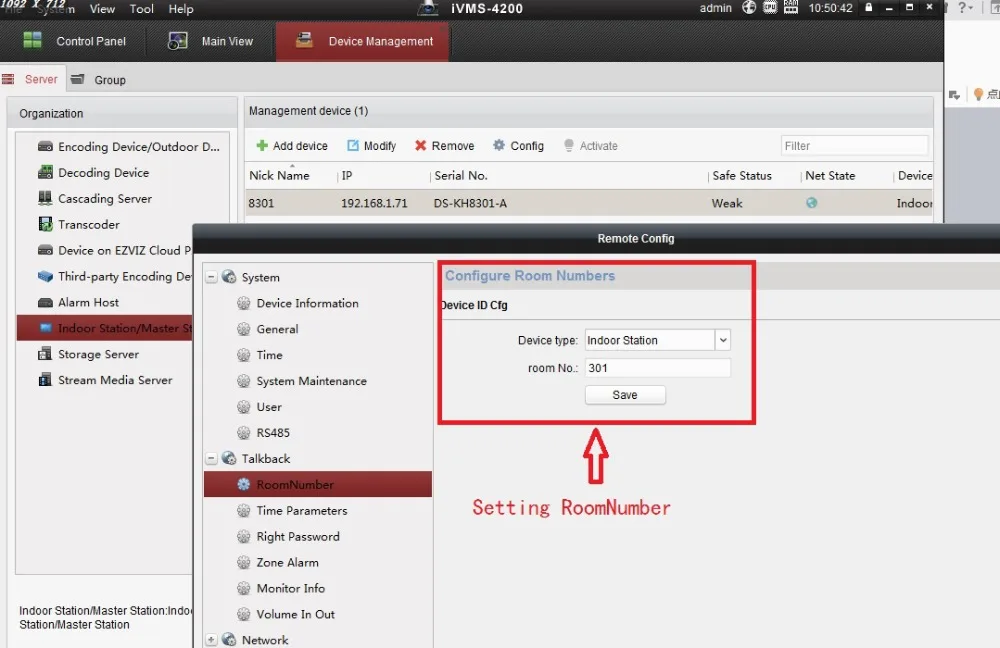

setp4_set Room No:Outdoor device :DS-KV8102-1C  Indoor Device:DS-KH8301-A.

setp5_set Outdoor Device IP in Indoor Device:

Important:

If you want to configure the second or more indoor Monitor,

There are two kinds of schemes

it depends on your Out Door Stations

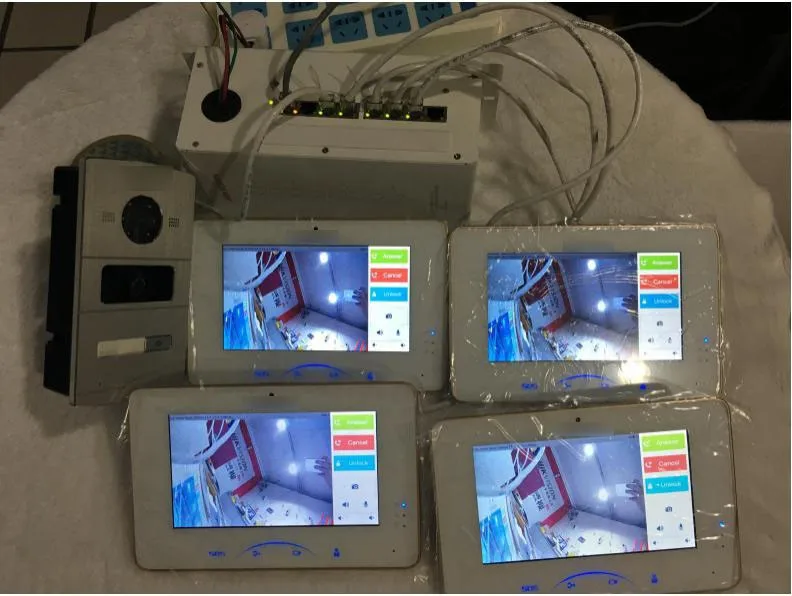

If you want to press a button, all the Indoor Monitor of ring, Like this:

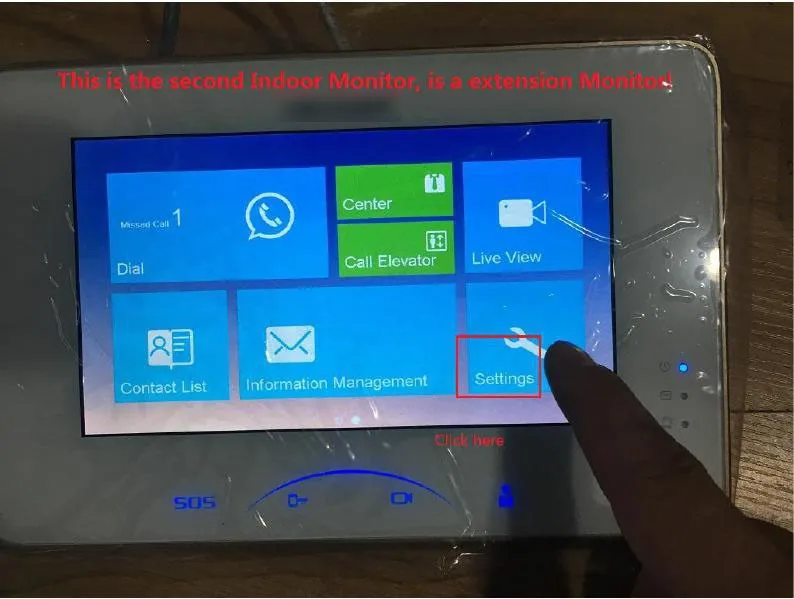

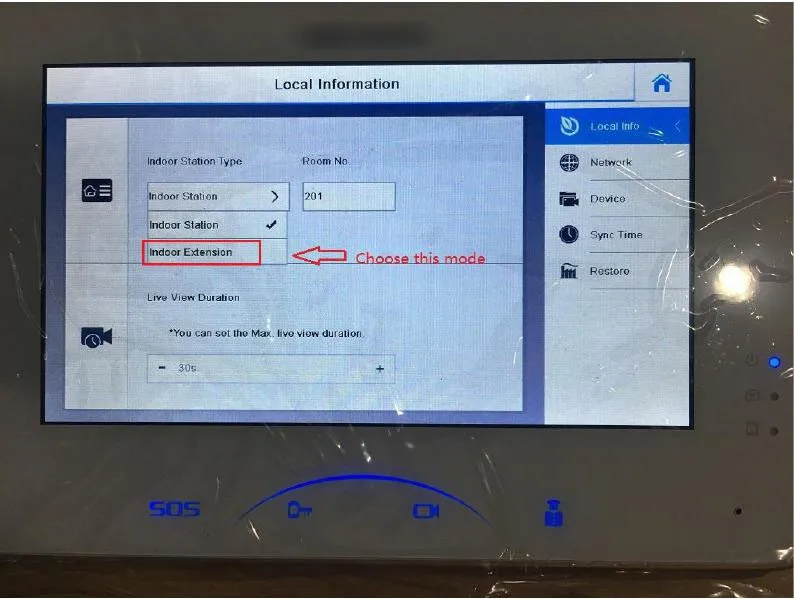

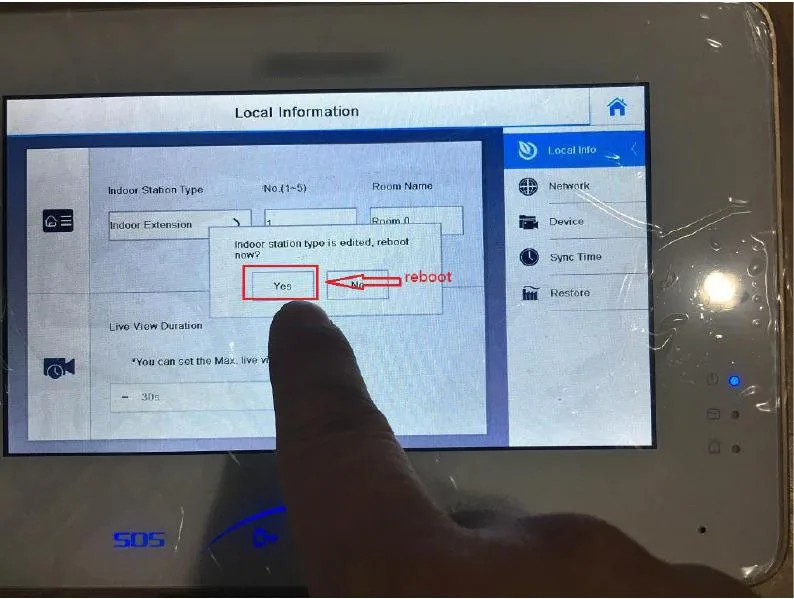

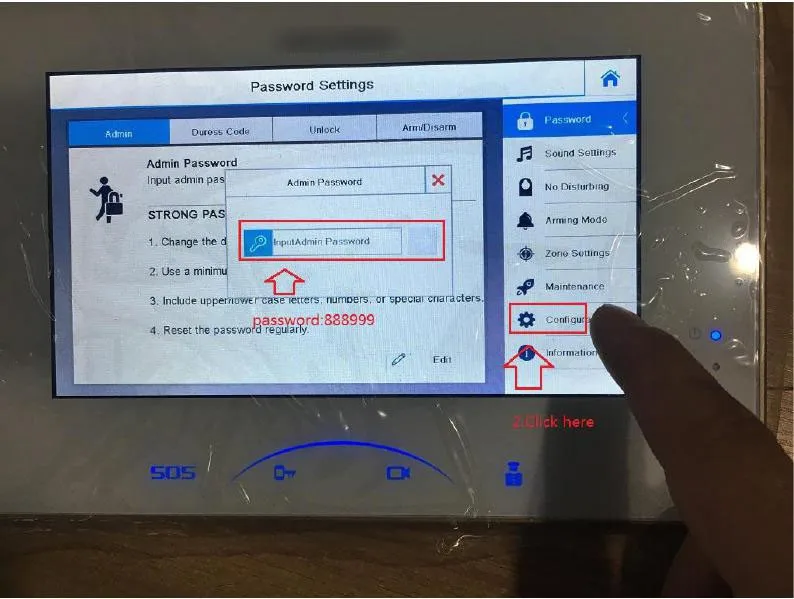

You need this operation on the Indoor Monitor:

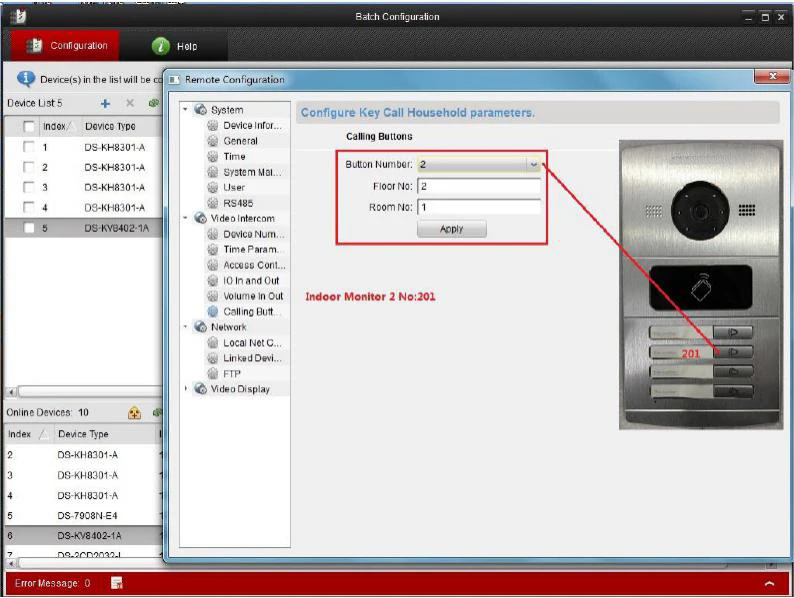

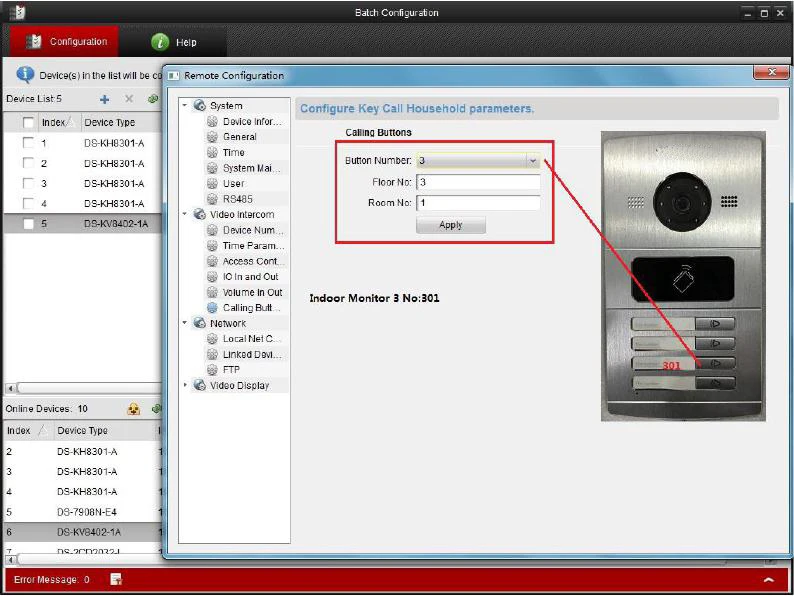

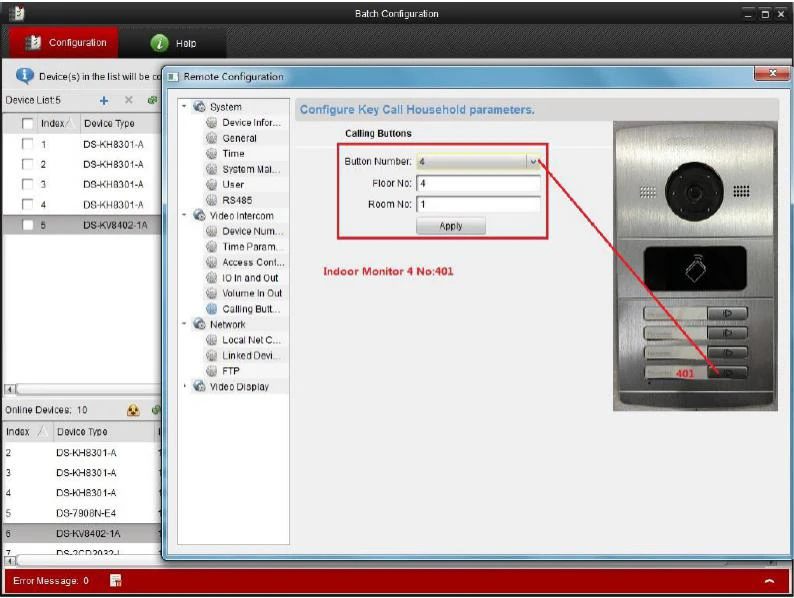

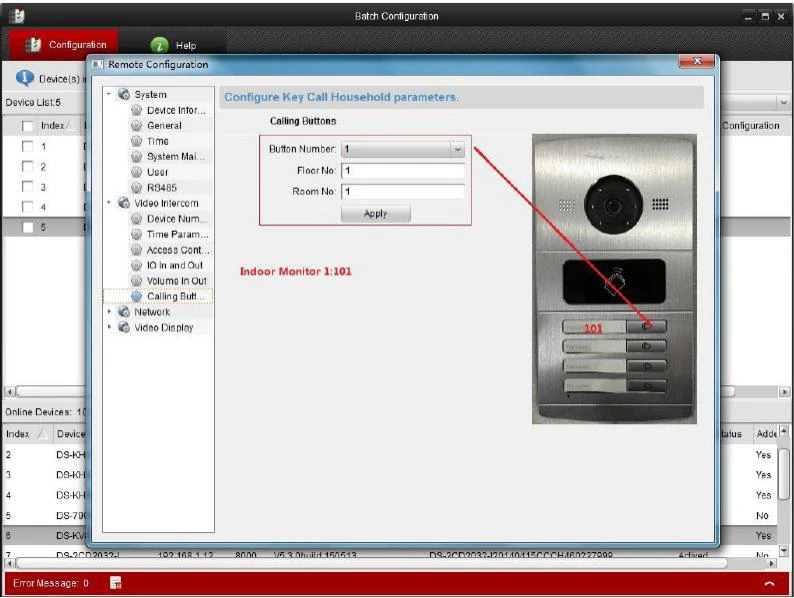

If you want to separate each button, call each layer of the extension,you should use the DS-KV8402-1A the Like this:

Of course, you can use the DS-KV8402-1A used as DS - KV8102-1C .

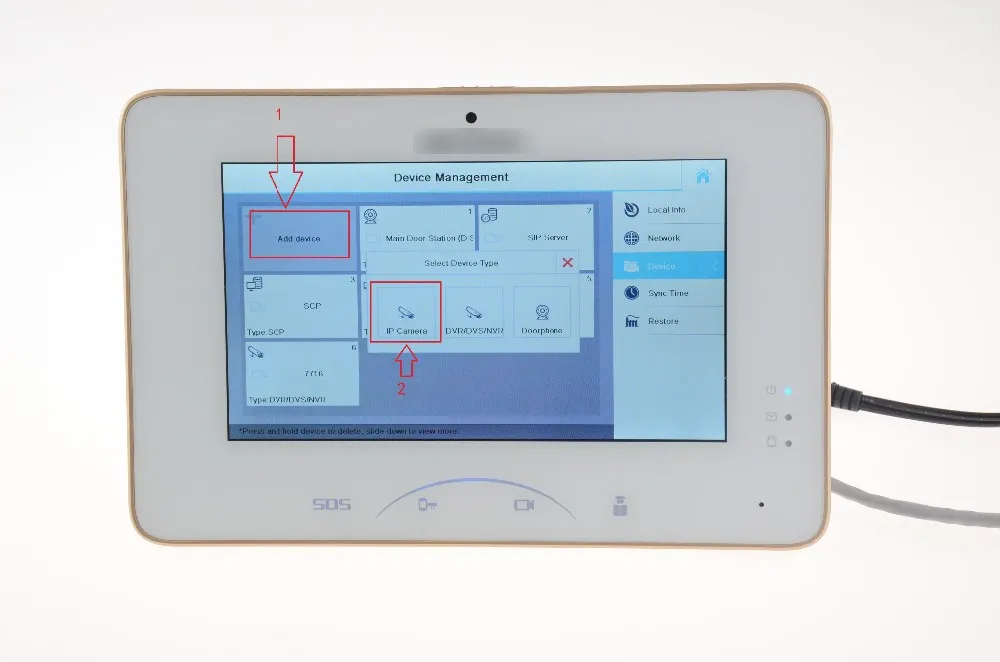

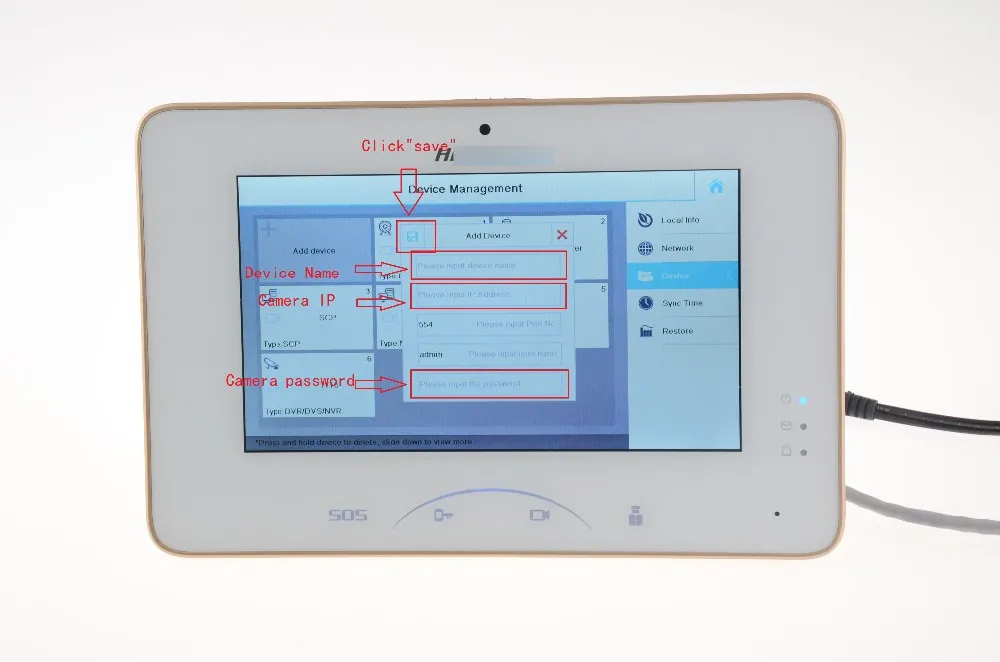

4.Input the camera name, IP,password,then click the “save”button

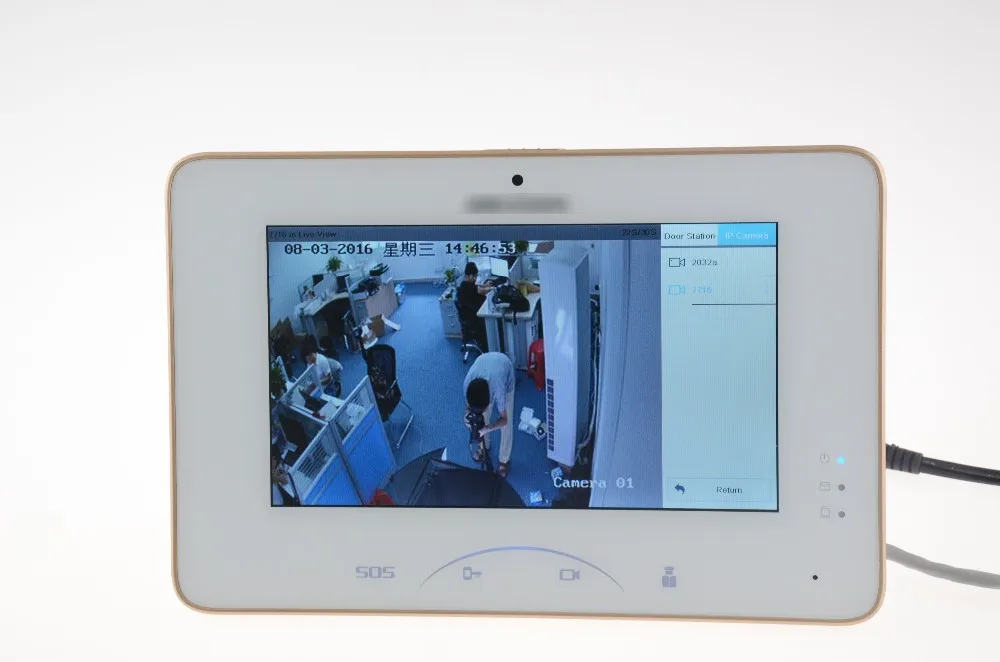

The Live View

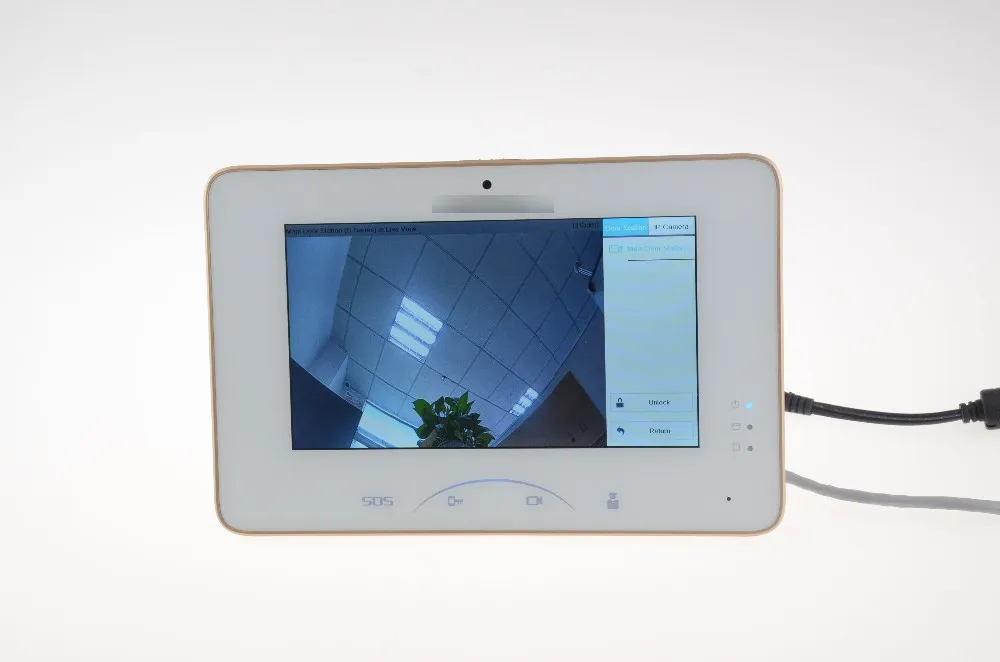

1.Door station live view

:

1.The camera live view:
