Комплект системы контроля доступа по отпечатку пальца и RFID для деревянной двери + электромагнитный замок + ключ-карта ID + источник питания + кнопка + дверной звонок

Brand Name5YOAModel NumberMagF7noBracketOriginMainland ChinaMeasurement unitpiece/piecesEach pack17 441,52 ₽7 441,52 ₽Add to CartBuy now7 441,52 ₽loaderDescription

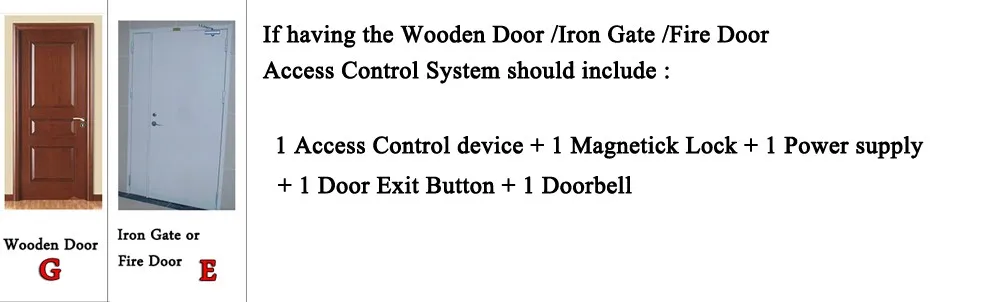

This access control kit include :



Technical Specifications   · User capacity : 1,000 · Card capacity : 1,000 · Transaction capacity : 100,000 · Verification mode : 1:1 or 1:N · Access Control : 50 Time Zone ,5 Grouping, 10 Combination, Holiday Management ,support many fingerprints access ,support standalone work · Electric lock control: Directness relay out put 3A/12VDC · Communicational:  TCP/IP or RS485 or USB flash drive or USB · Alarm function:  Intimidation alarm, tamper alarm, forced door-opening alarm, door-opening overtime alarm, entrance point alarm · Keyboard and Display: LCD with 80 character and figure keypad,  2.8' Color Screen · Power: 9-24 VDC, stay current: 50MA, work current: 400 MA · Identification speed: <=0.5 seconds · FRR: <=0.01% · FAR: <=0.0001% · Collection station: 5YOA collection station · Temperature operating: 0°C - 45°C · Humidity operating: 20%-80% · Language: English, other Languages · Size: 180(L)*82(W)*55(H)mm · Management software: Transaction fingerprint management and Access control attendance options, and network management · Standard: Wire Doorbell, Wiegand Out · Optional: Webserver, Workcode, RIS,Multi-identification, 9 Digits User ID, Schedule Status,  T&A Records.    One way 5V relay output  One way magnetic door input(opto-isolator)  One way WG26/34 output One way alarm signal output Reset button

  Description:   Product Name:

door access control system switching supply power

Dimension: 120X95X38MM Input Voltage: 110-240 VAC Input Frequecy: 50-60 kHz Output Voltage: 12V DC Output Cureent: 3A Output Power: 36w Work temperature: -20°C to 65°C Weight: 0.8kg Material: steel

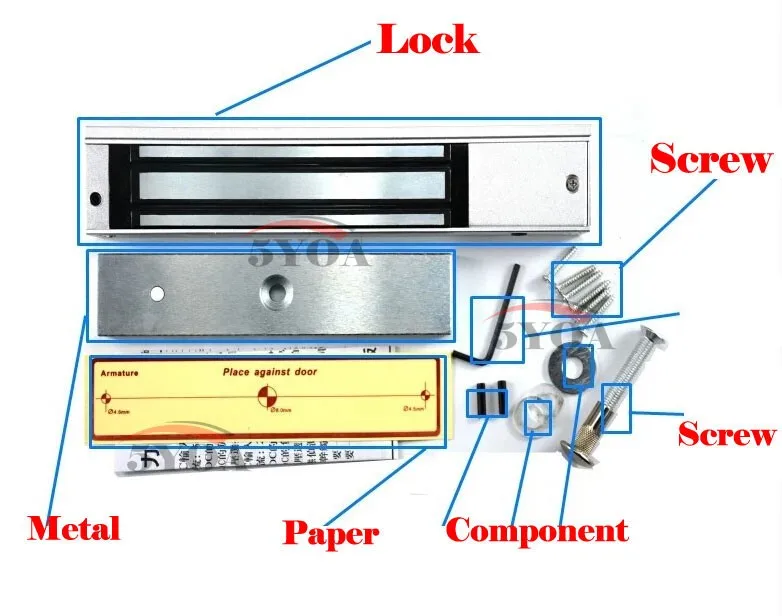

  Applicable scope:

5YOA magnetic locks are widely used for wood doors / iron doors / stainless steel doors / glass doors / and can be controlled by building walkie-talkies or access control system.

Product advantages:

Level 3 Quality Assurance

5YOA magnetic locks made from special magnetic materials in adoption of a particular processing technique will not produce excessive magnet after a long period, and the sucking board will not be magnetized or cause the reduction of suction force after a long-time used. The products present no mechanic failures, no abrasions, and no noises with a longer service life.



Specification:

Voltage: DC12V            Suction force: 160kg-200kg        Quality : LEVEL 3



Exit button:

This is a plastic Exit button, it is widely used in the door access control system. If you want to go out, you just need to press this Exit Button, then you can go out:



Support both NC Mode (Fail Safe Mode) and NO Mode (Fail Secure Mode) Performance Testing: 1000000 times aging test Material: Hard Plastic.

Specification:

Working voltage: DC12V Working current: 3A Faceplate Dimension: 85mmx85mm     Sound : Ding-Dong  Ding-Dong

Package includes:

1 x Fingerprint RFID Access Control device 1 x Special Power supply 1 x Eletrical Magnetic Lock 180kg 300lbs 1 x Door Bell 1 x Exit button 5 x RFID cards 5 x RFID Keyfobs 1 x User Manual

Note: include some connection wire(but not enough), you can use the common wire to connect them togther.
