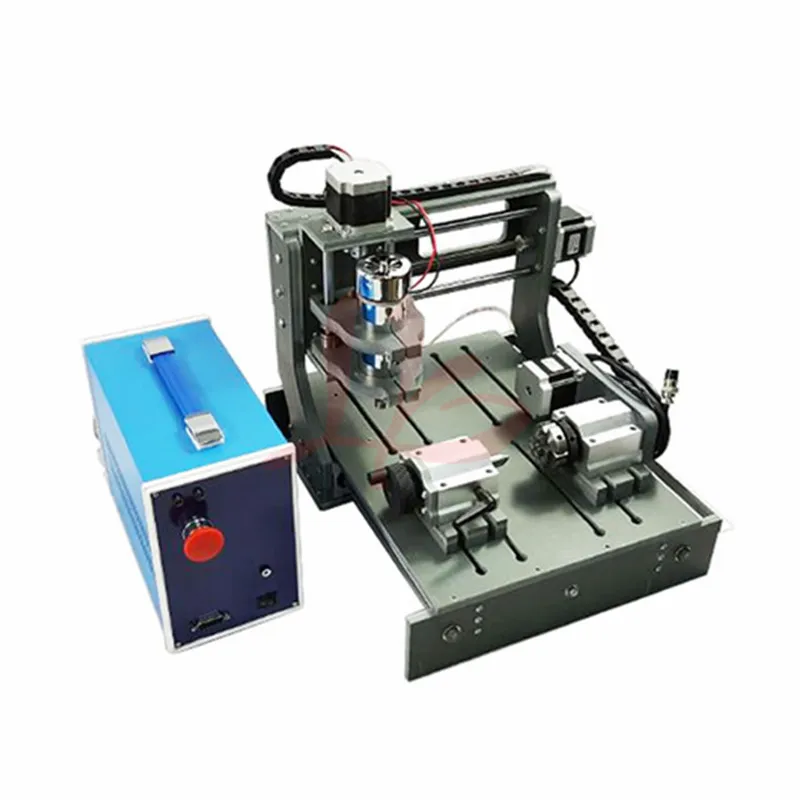

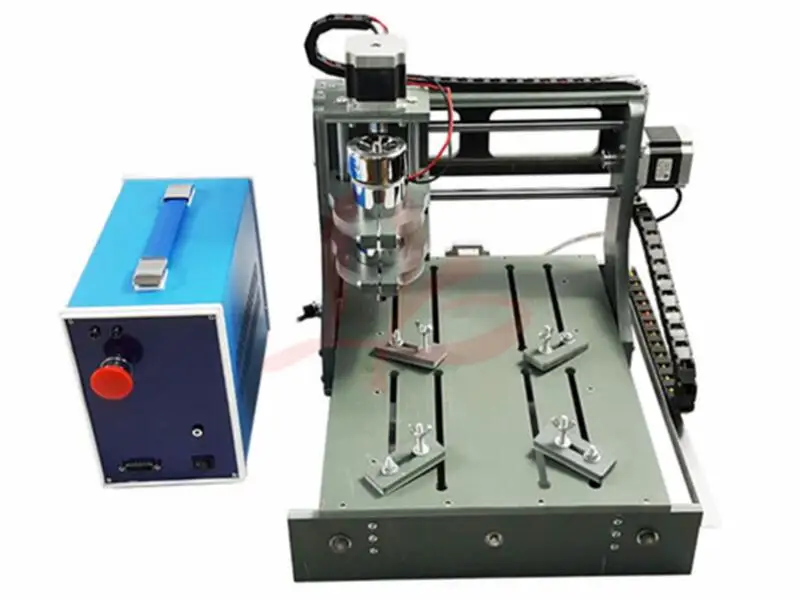

Engraving machine 2030 2 in 1  CNC Router /Engraving Drilling and Milling Machine

Introduction

This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;

Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;

It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.

It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.

Warranty

More Precise Stepping Motor

Simple operation and installation

1 year machine part and 6 months electrical parts、stepping motor、spindle Free Warranty

MODEL

CNC 2030

Attribute

3axis LPT

3axis 2 in 1

4axis LPT

4axis 2 in 1

Axis

3axis

3axis

4axis

4axis

Interface

LPT

LPT+USB port

LPT port

LPT+USB port

Spindle Motor:

300W

300W

300W

300W

Weigh

24

25

28

29

Max. working stroke

XYZ=200*300*58mm

Acceptable material thickness

≤80mm

Rail type

X and Z axis to hard shaft diameter of 12 mm,

Y axis is hard shaft diameter 16 mm;
Three axis are M8 stainless steel screw, with double nut back to poor organization

Spindle motor

300W  DC spindle , 0-11000r/min

Collet type

ER11,1/8"(3.175mm) Collet

Stepper motor and drive

57BYGH-2.4A,

Maximum operating speed

2500mm/min (Engraving speed :　300-2500mm/min)

Repeat positioning Accuracy

0.03mm

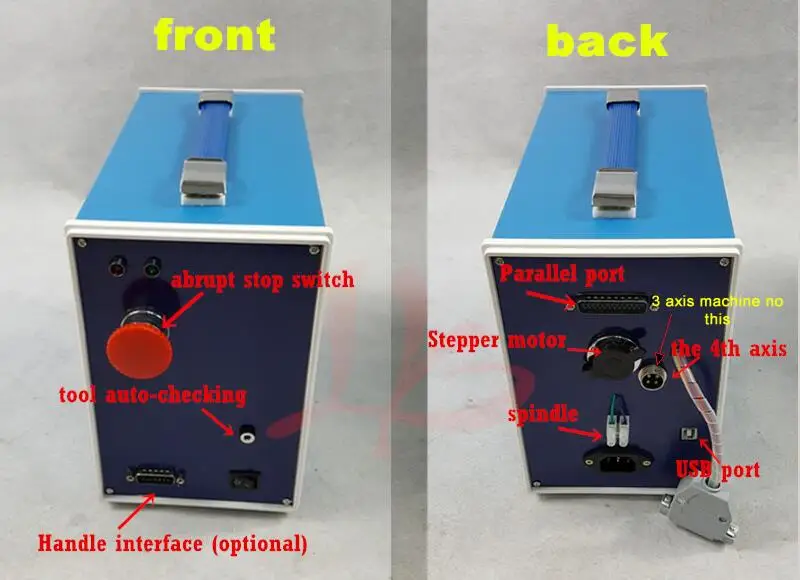

Communication interface

Only LPT or 2 in 1-Parallel port and USB port  ( CNCUSBController )

Software Co

patability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code

G code/.nc/.ncc/.tab/.txt

Machine weight

26kg

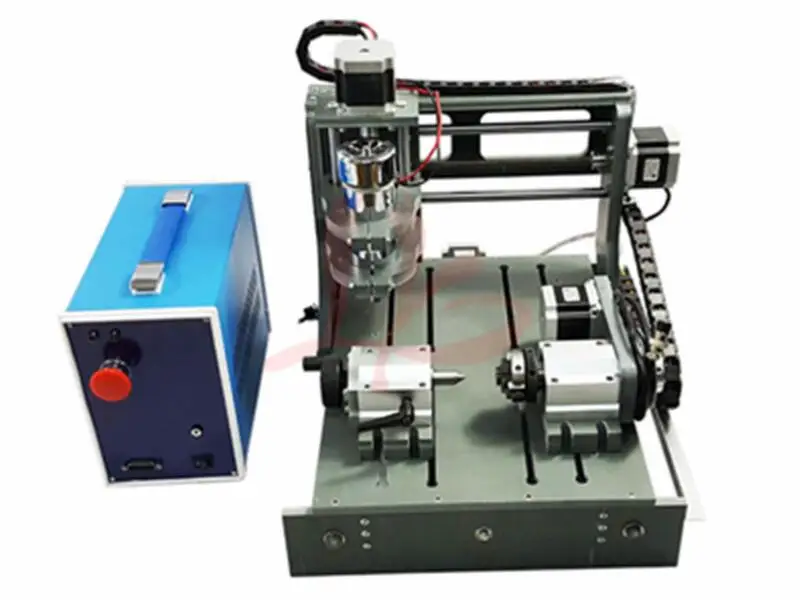

With Rotation Axis (4th Axis)

Description

Center height: H=50mm

Reduction ratio 4:1

Stepping motor: 57-2.4A

Weight: 4kg
