HD W61 led remote control card for car led panel a60 china supply

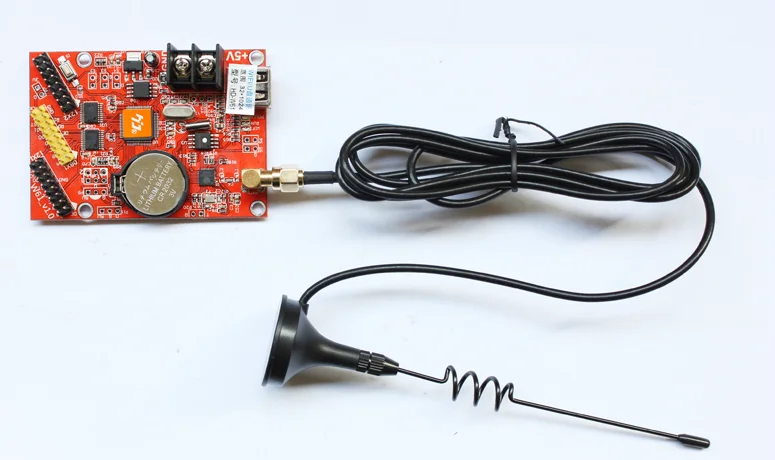

HD Brand LED Display Controller HD-W61( WIFI +USB PORT)

      Advantages:WIFI wireless Conrol ,Workign no need PC. Control by moblie

        Used indoor outdoor display like P10 P12 P16 etc

Key Features:

1. Mainly Features

Types of control card

Single Color/ Dual Color /Tricolor

Control range

Single color: 1024W*32H 1024W*32H

Dual color: 512W* 32H   1024W*16H

Scan modes

Static, 1/2, 1/3,,1/4, 1/5 ,1/6,1/8,1/16 common modes etc

Communication type

U-Disk

Power supply

+4.2-5.5V

Power consumption

≤0.5W

Work environment

-40℃--75℃

Installation dimension

77(W)*55 (H)(mm)

Application Range

Used indoor outdoor, semi-outdoor, Led Pharmacy Cross signs

Showing text, animation, time, clock etc

Languages

Support All languages

Communication distance

10-30meter

Application Software

Software HD2016

Details Parameter

Details Parameter

  Details Parameter

Flash Capacity

2M Byte(Can be expand 8M)

Communication Port

U-Disk  + WIFI  Wirelss to edit and updated programs

Signal Port

2 OF HUB12 ,1 OF HUB08

Program Quantity

1000pcs Programs. also can change program by button or remote if weld sensor (Remoter can select1-999 Programs)

Area Quantity

8 areas with separate zone, and separated special effects and border

Display Showing

Text, Hypertext (GIF, Picture, Animation Character,SWF,Video),Excel, Time, Count, Digital, Temperature, Humidity, Brightness ,Background etc

Program Modes

Playing by Sequence or by Remoter or by Button

Display effects

1.Support all languages(Software :HD2016)

2.Support 7 color effects and 64 colors Gray level (HD-W62/W63/W64)

3. Border functions of Program border, area border and Custom design border.

4.Add Countdown /Count up, Button Countdown / Count up

5.Add Text Rotation of 90°,180°, 270° for display

Text function of Hollow,Stroke etc

6.Add payment collection function

7.Updated program by U-disk

8. More than 200 types showing effects

9.Support Second develop SDK

10.More high brightness, more moving speed ,more refresh

Time / Clock /Count Function

1. Support Digital Clock/ Dial Clock / Lunar Time/

2. Countdown /Count up, Button Countdown / Count up

3. The font,size,color and position can be set freely

4. Support multiple time zones

Digit Function

1.Scoring device,Calculate by piece.

2.From Minimum to Maximum, from Maximum to Minimum

Expand function

Remote function,temperature,humidity,brightness etc. (If weld sensor) .Remoter can select1-999 Programs

Brightness Control

Brightness setting by Custom,Automatic(weld sensor) ,

by time period regulation

Automatic close /open display

Support close /open display by time automatically

2.The packing details

5PCS HD-W61+ 5PCS  CD of software

3. HD Controller Connected with LED Module

for example P10 singe color, the display port is HUB12 usually

Controller of HUB12*1  connected to led display of First Height of input Hub12

Controller of HUB12*2  connected to led display of Second Height of input Hub12

for Example  p10 Dual color , the display port is HUB08 usually

Controller of HUB08*1 connected to led display of First Height of input Hub08

Controller of HUB108*2 connected to led display of Second Height of input Hub08

Like this . so on .

 4 The Controller working software HD2016.

 1)Working ways : Use WIFI singnal to send program wireless .

 The wireless commucation distance : 30-50M,for example HD-W63 automatically.

 2)Another Working ways: use U-disk(or pen drive )  udapted program ,no need putting lines,

 no need PC

  a. Edit the program in software HD2016

  b. Then click software  “to U-disk",the program import to your flash memory( U-disk)

  c. Pull out the Flash memory ( U-disk) to the USB port of controller, the program updated

3) Also can use mobile APP to edit and send Program

 The mobile APP it can download in website www.huidu.cn

 The mobile APP name :LedArt( also aftered download,also can share to frineds)
