APEC BrandAIW series Ironworker features multiple functions, including: punching all kinds of holes (round hole, square hole, oblong hole), louver punching, steel plate punching, flat bar punching, angle steel punching, C-channel punching, H-beam punching, I-beam punching, profile steel shearing (channel shearing, I-beam shearing, round/square bar shearing, flat bar shearing, T-bar shearing, steel plate shearing, angle steel shearing), notching, press brake, angle steel notching , bending, pipe notching. It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.We can design any special tools according to your metal fabricating requirements.

Function Sketch

APEC Brand AIW-S series is improved machine on the base of standard AIW series. It goes along with automatic holding system and temperature cooling system.

Automatic Holding System: There is automatic holding system in angle steel shearing and plate shearing work position. The holders will fix the position of work-piece, in this way, the accuracy is better and more safety for workers meanwhile save time and Improve working efficiency.
Temperature cooling system: Once start the machine,the cooling system starts working automatically.The hydraulic oil temperature always stays at 60 degree or less.It is applicable and safety for processing in quantities and long time.

Hydraulic ironworker is widely used in :

1.  Steel structure processing

2.  Elevator & relative parts processing

3.  Spare parts of trailer - hinge, plate hook, corrugated plate

4.  Construction machinery industry – processing of belt conveyor, mixing station

5.  Agricultural machinery industry – structure of thresher & tractor hopper and relative parts processing

6.  Food machinery industry – structure of Slaughtering equipment and relative parts processing

7.  High-voltage Tower and relative parts processing

8.  Wind power equipments – stairs & pedals of wind turbines and relative parts processing

9.  Machining – built-in fitting of construction / conveyor stents and relative parts processing

10. Cereal processing machinery – frame, machine casing processing of grain oil equipments & starch-making equipments

11. Railway carrier, car, crane and relative parts processing

12. Shearing, punching and bending for C-channel, square bar, round bar, H-beam, I-beam,etc.

Features

1. High Quality Components & System

a. Main Electrical component: Schneider, Germany.
b. Valve: Yuken, Japan
c. Pump: Hydromax, TW
d. Oil Seals: NOK, Japan

2. Cost Effective

AIW SERIES Hydraulic Ironworker With Very good price/performance ratio

Various AIW SERIES Hydraulic Ironworker capacity from 45T to 400T to meet your requirement.

3. Stable Performance & Reliable Quality

AIW Series Hydraulic Ironworker use hydraulic transmission. Light weight, low noise, reliable performance.

4. Simple Operation

The operation of hydraulic ironworker is controlled by foot switch.

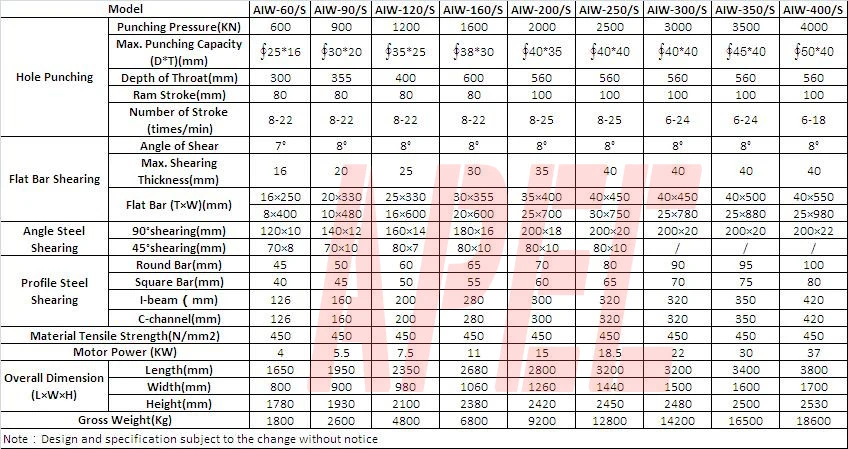

Technical Parameters:

Accessories:

a. A pair of round hole punching die

b. A set of angle steel blade

c. A set of square and round bar blade

d. A set of shearing plate blade

e. A set of notching blade

The above punching and moulds will be installed in the machine.

For other dies and blades, customers need to order

Installation & Operation Training

APEC will provide you 1-7 day installation and operating training in our factory.

Details of Machine

Working Pieces

FAQS:

1. Payment Terms

T/T, L/C at sight are acceptable by us.

2. Price Terms

It is up to your requirement. EX-WORS, FOB, CIF, CFR and so on are acceptable  by us.

3. Delivery Time

25 working days from our accountant confirm your deposit payment.

4. Shipment Condition

We will arrange the machine production from our accountant confirm your deposit payment. The deposit is 30% of the contract. The balance should be paid up before loading machines.

5. Warranty

13 months quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on. If the parts of machines have problems, which are caused by its own quality, we will provide the accessories for free.
