MT660 Through Coating Color TFT LCD display Digital Ultrasonic Thickness Gauge Meter

Product Overview

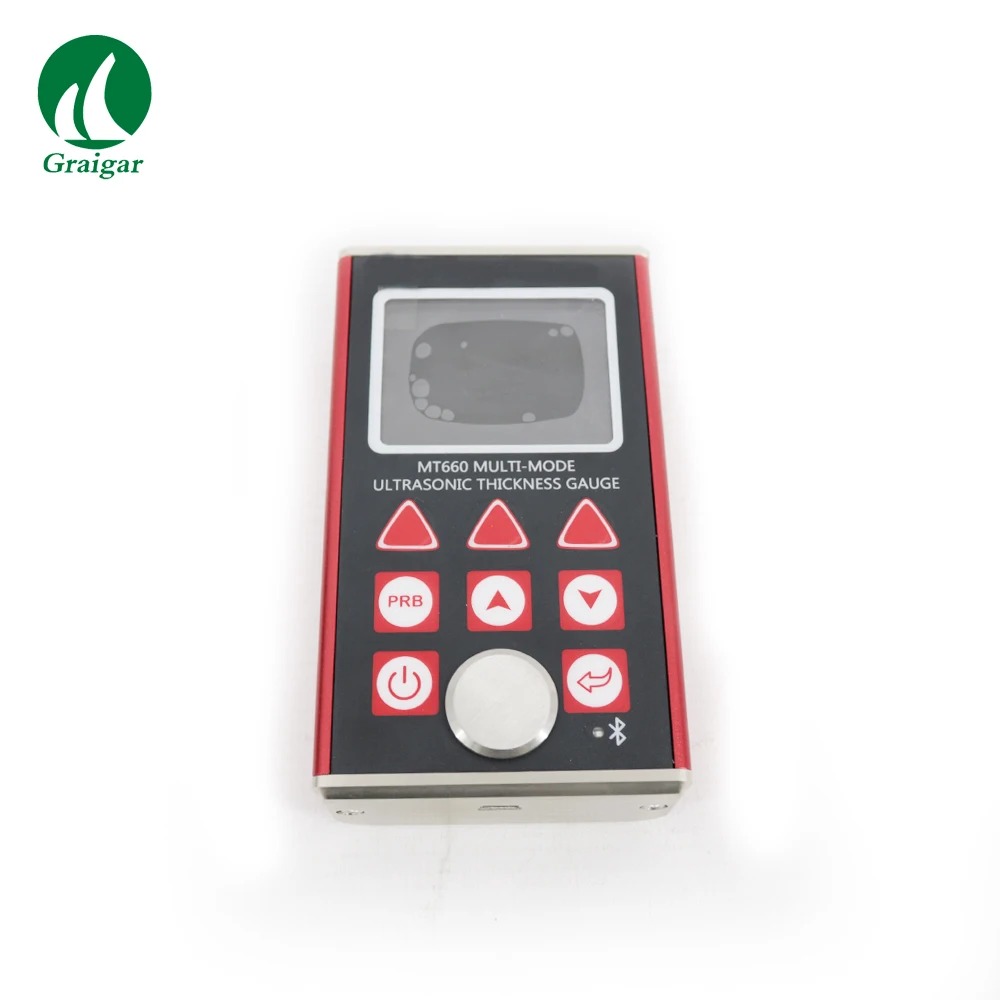

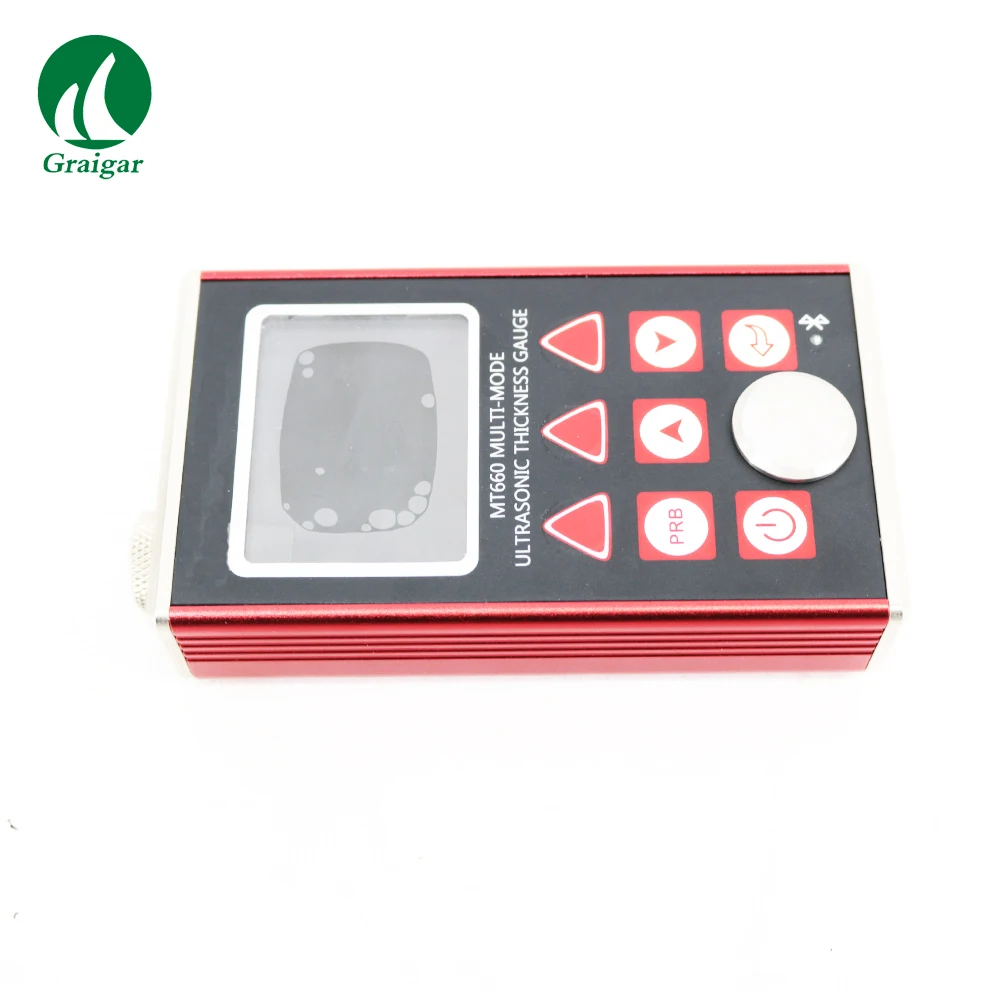

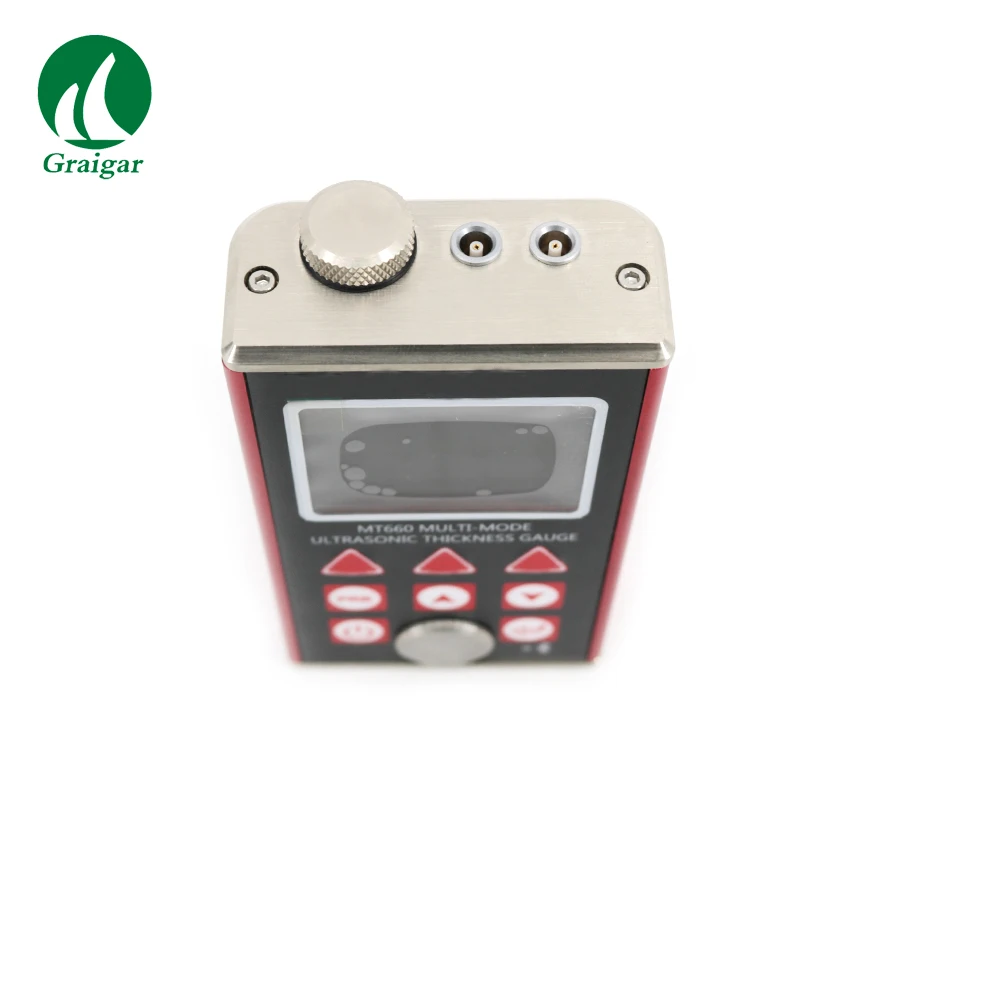

   The model MT660 is a multi-mode ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 /0.001millimeters.    The multi-mode feature of the gauge allows the user to toggle between pulse-echo mode (flaw and pit detection), and echo-echo mode (eliminate paint or coating thickness).   Function & application Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.Transducer models are available for special application, including for coarse grain material and high temperature applications.   Instrument Features Multi-mode: Pulse-Echo mode (P-E mode) and Echo-Echo mode (E-E mode). In Echo-Echo mode, it can test the wall thickness eliminating paint or coating thickness.Wide measuring range：Pulse-Echo mode: (0.65～600)mm (in Steel). Echo Echo mode: (3～100)mm .V-Path correction to compensate the nonlinearity of the probe.Color TFT display (320×240 TFT LCD) with adjustable backlight, allow the user to work at worksites with low visibility.Non-volatile memory can store 100 groups of test thickness. One hundred records max for each group.Two AA size alkaline batteries as the power source. Continuous operating period of no less than 100 hours (default brightness setting). Display Standby and Auto Power Off functions to save power.With internal Bluetooth module, it can print test report wirelessly. USB 2.0 communication port. Online transfer of the measured data to PC via USB.   Working Principle The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material, reflect from the back or inside surface, and be returned to the transducer. The measured two-way transit time is divided by two to account for the down-and-back travel path, and then multiplied by the velocity of sound in the material. The result is expressed in the well-known relationship: H=v×t/2

​

Measuring Range 0.65-600mm( P-E), 3-100mm (E-E) Working Frequency (2.5-7）MHZ Probe Diameter Standard Probe P5EE is 10mm, Probe N05 is10MM、Probe N07 is 6MM、Probe HT5 is12MM、Probe N02 is12MM Min. Pipe Diameter Φ15mm×2.0mm Resolution 0.1/0.01/0.001mm Accuracy ±0.04mm（<10mm）；±0.4%Hmm(>10mm) Display Color TFT display (320×240 TFT LCD) with adjustable backlight Single /Scan Mode Single mode,Scan Mode, and and diff mode Probe Calibration Zero calibration, two-point calibration, automatic error correction system Velocity Range 1000-9999m/s Unit Metric/Imperial unit selectable Language English Memory 100 groups (100values for each group) of stored values Communication Port USB.Bluthtooth Data Printing yes Power supply Two “AA” size, 1.5 Volt alkaline batteries(not included) Lower Power Comsumption yes Working Hours 30 hour Operating Temperature -20℃-+60℃ Relative Huminity ≤90％ Appearance Extruded aluminum body Outline 120mm×67mm×31mm Gross Weight 1.5 KG PC Datapro Software Yes Speech Function Yes
