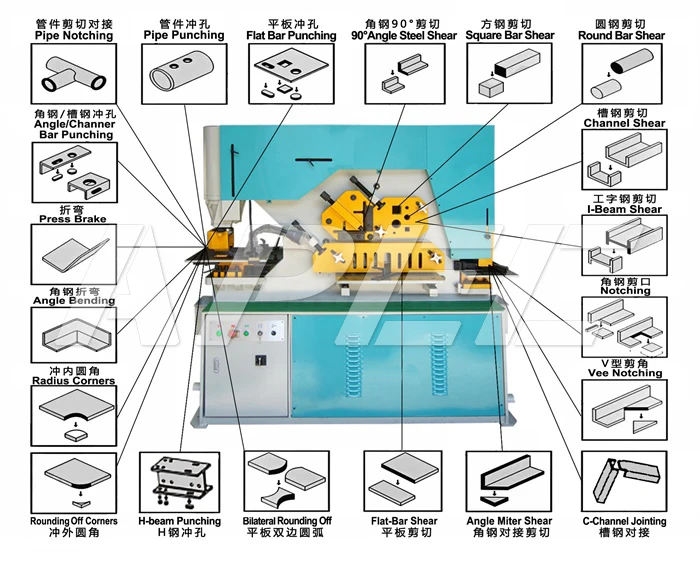

APEC BrandAIW series Ironworker features multiple functions, including: punching all kinds of holes (round hole, square hole, oblong hole), louver punching, steel plate punching, flat bar punching, angle steel punching, C-channel punching, H-beam punching, I-beam punching, profile steel shearing (channel shearing, I-beam shearing, round/square bar shearing, flat bar shearing, T-bar shearing, steel plate shearing, angle steel shearing), notching, press brake, angle steel notching , bending, pipe notching. It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.We can design any special tools according to your metal fabricating requirements.

APEC Brand AIW-S series is improved machine on the base of standard AIW series. It goes along with automatic holding system and temperature cooling system.

Automatic Holding System: There is automatic holding system in angle steel shearing and plate shearing work position. The holders will fix the position of work-piece, in this way, the accuracy is better and more safety for workers meanwhile save time and Improve working efficiency.
Temperature cooling system: Once start the machine,the cooling system starts working automatically.The hydraulic oil temperature always stays at 60 degree or less.It is applicable and safety for processing in quantities and long time.

Features

1. High Quality Components & System

a. Main Electrical component: Schneider, Germany.
b. Valve: Yuken, Japan
c. Pump: Hydromax, TW
d. Oil Seals: DZ, TW

2. Cost Effective

AIW SERIES Hydraulic Ironworker With Very good price/performance ratio

Various AIW SERIES Hydraulic Ironworker capacity from 45T to 400T to meet your requirement.

3. Stable Performance & Reliable Quality

AIW Series Hydraulic Ironworker use hydraulic transmission. Light weight, low noise, reliable performance.

4. Simple Operation

The operation of hydraulic ironworker is controlled by foot switch.

Technical Parameters:

Technical Parameter

No.

Item

Unit

Value

1

Hole Punching

Punching Pressure

KN

1200

Max. Punching Thickness

mm

25

Max. Diameter of Punching

mm

35

Depth of Throat

mm

400

Max. Length of Cylinder Stroke

mm

80

Stroke Times

times/min

8-22

2

Flat-bar Shearing

Angle of Shear

degree

8°

Max. Shearing Thickness

mm

25

Flat Bar (W×T)

mm

600x16

330x25

3

Angle Steel Shearing

90° Shearing of Equal Angle Steel

mm

160x160x14

45°Shearing of Equal Angle Steel

mm

80x80x7

4

Profile Steel Shearing

Round-bar

mm

60

Square-bar

mm

50x50

T-bar

mm

160x80x14

I-beam

mm

200/102x9

C-channel

mm

200x75x9

5

Notching

Thickness

mm

14

Width

mm

57

Depth

mm

100

6

Material Tensile Strength

N/mm2

450

7

Motor Power

KW

7.5

8

Overall Dimensions(L×W×H )

mm

2350x980x2100

9

Gross Weight

Kg

4800

Note:Design and specifications subject to change without notice.

Accessories:

a. A pair of round hole punching die

b. A set of angle steel blade

c. A set of square and round bar blade

d. A set of shearing plate blade

e. A set of notching blade

The above punching and moulds will be installed in the machine.

For other dies and blades, customers need to order

Installation & Operation Training

APEC will provide you 1-7 day installation and operating training in our factory.

FAQS:

1. Payment Terms

T/T, L/C at sight are acceptable by us.

2. Price Terms

It is up to your requirement. EX-WORS, FOB, CIF, CFR and so on are acceptable  by us.

3. Delivery Time

25 working days from our accountant confirm your deposit payment.

4. Shipment Condition

We will arrange the machine production from our accountant confirm your deposit payment. The deposit is 30% of the contract. The balance should be paid up before loading machines.

5. Warranty

13 months quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on. If the parts of machines have problems, which are caused by its own quality, we will provide the accessories for free.
