Arduino Набор Интеллектуальных погодных станций development kit Air detection DIY kit|Детали и

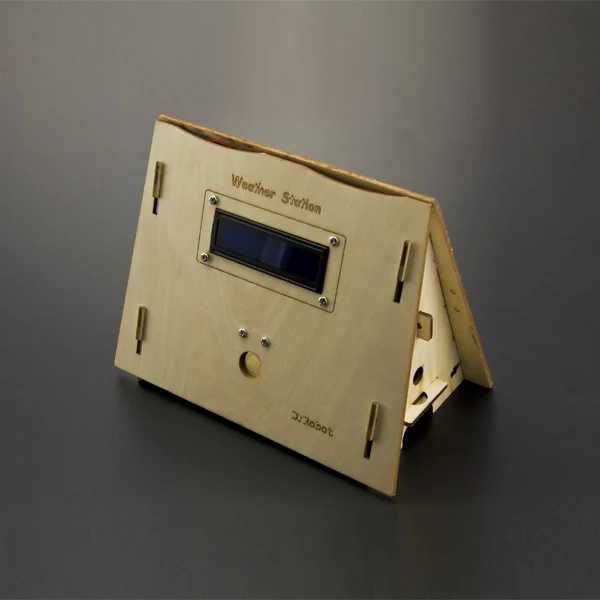

This DIY intelligent weather station kit can be used for balcony or indoor air detection. It can detect temperature, humidity and air pressure through various sensors, and cooperate with the previous solar panel to supply power to the system. This weather station quickly detects weather conditions in specific locations and is ideal for classroom experiments. It is energy-saving and environmentally friendly. It cultivates children's hands-on ability from an early age and cultivates the habit of careful observation.   Because the kit is based on the open source Arduino platform, users can add sensors such as dust, PM2.5, UV and wind speed to expand its capabilities. Users only need to connect the sensor module we provide to the corresponding interface and paste it into the code we provide. After a little debugging, you can become a powerful weather station.   In addition, the weather station is also compatible with DFRobot's GPS/GPRS/GSM module, which can send weather data containing coordinates to your mobile phone via the network. Experienced players can even add wifi and Bluetooth to the weather station to turn it into an IoT weather station. Through the network, you can view the weather information of a place anytime, anywhere. If the user wants to collect multi-point meteorological data, multiple weather stations can be connected to form a regional meteorological data collection network, so that real-time regional climate data can be collected and stored in a terminal for preservation and analysis.     Product Features: Solar auxiliary power supply With sleep mode, long standby Extends a wide range of sensors and function modules based on the open source platform of Arduino Complete tutorial to unlock the secrets of the weather station   Precautions:  This product contains small parts and is not suitable for children 6 years old and younger. This product has no rain protection function, please use it in rainproof environment.

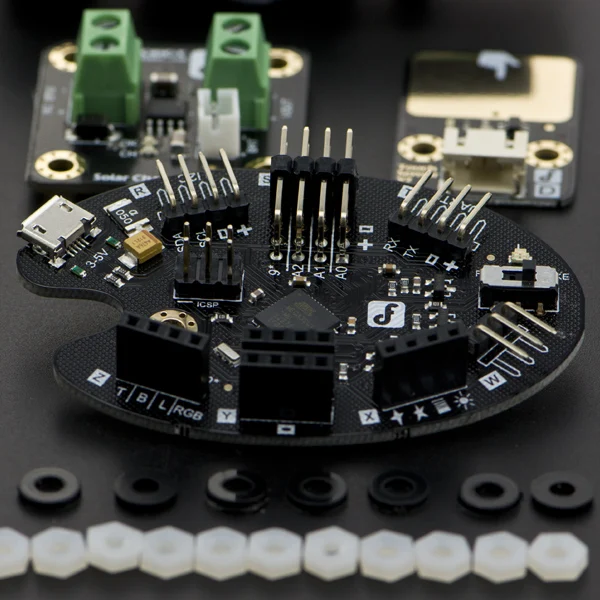

Technical specifications： Working voltage: 5V Dimensions: 190*140*100 (mm) Weight: 640g Platte Board master parameters: Electronic patch interface: 4-channel 40mA input and output interface (Z zone), 4-channel 500mA output interface (X zone) External module interface: 4-way 3PIN sensor, actuator interface (S area), one UART interface, one I2C interface Sleep wake-up interface: 1-way 3PIN sensor interface (W area) Controller: ATmega32u4 Battery: 3.7V 1000mAh



Delivery List:

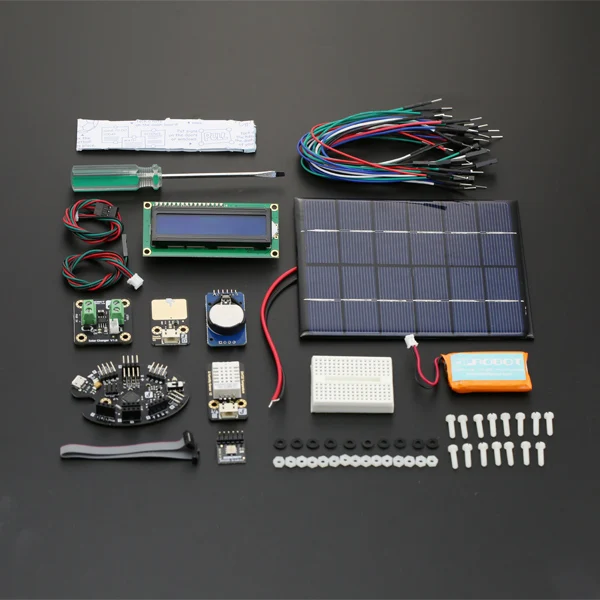

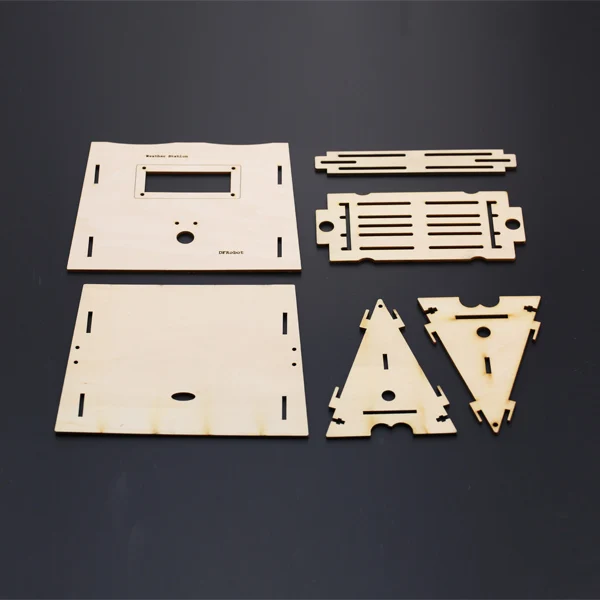

1x Platte Board Master 1x mini breadboard 1x LCD1602 LCD Module 1x touch sensor 1x solar charging module 1x temperature and humidity sensor 1x atmospheric pressure sensor 1x real-time clock module 1x 3mm AA Elm Plywood Cutting Parts 15x male and female bread line 10x public bread line 1x aluminum foil 1x blue butadiene 1x screw package 1x screwdriver



note:Due to logistics reasons, the  delivery list not include lithium battery



Weather Station User Manual http://www.dfrobot.com.cn/images/upload/File/2015062410464765q2s7.pdf   Arduino software code http://www.dfrobot.com.cn/images/upload/File/KIT0094/201508061630215u9hvz.rar
