Dahua CAmera system 10pcs*HDW4631c-a + 10PCS*PFA139+6PCS*HDBW2531E-S-S2+8PCS*PFA136 +1PCS*SD49225XA-HNR+8PCS*HFW4631H-ZSA SO ON |

Dahua CAmera system 10pcs*HDW4631c-a + 10PCS*PFA139+6PCS*HDBW2531E-S-S2+8PCS*PFA136 +1PCS*SD49225XA-HNR+8PCS*HFW4631H-ZSA SO ON |

New model support English, Spanich, French language.

1-3pcs +0usd = china post shipping for free

1pcs + 19usd = DHL shipping (EMS ups toll  FEDEX optional)

2pcs + 24usd = DHL shipping (EMS ups toll  FEDEX optional)

3pcs + 29usd = DHL shipping (EMS  ups toll  FEDEX optional)

4pcs or more = FREE DHL shipping (EMS  ups toll  FEDEX optional)

>1/3” 4Megapixel progressive scan CMOS
>H.265/H.264&MJPEG Dual code
>20fps4M(2688*1520), 25/30fps3M(2304*1296)
>WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
>Smart Detection supported
>Multiple network monitoring:Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (2.8mm optional)
>Max. IR LEDs Length 30m
>IP67, PoE
>Onvif 2.4

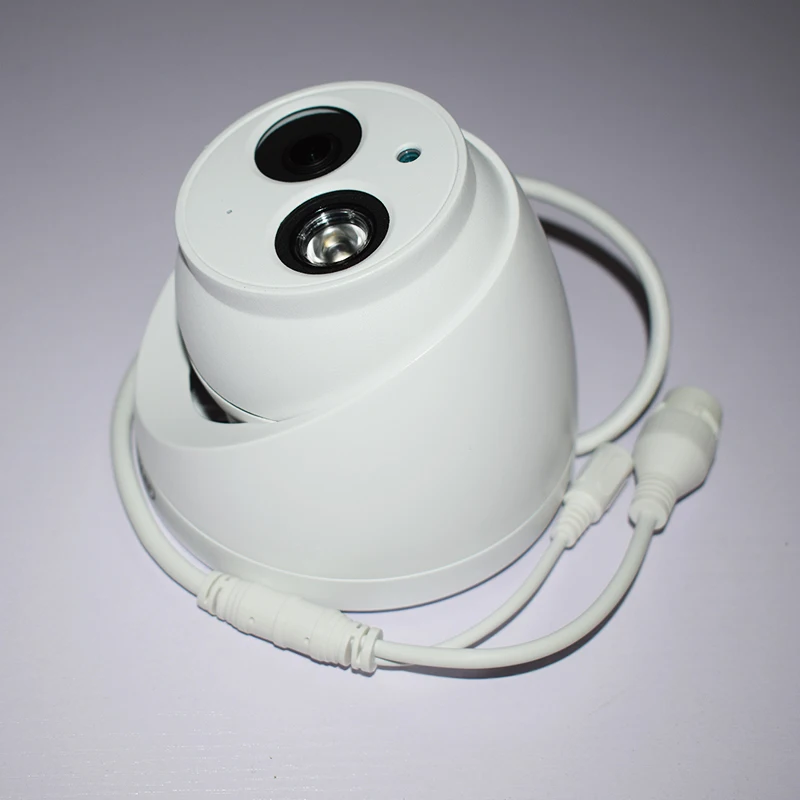

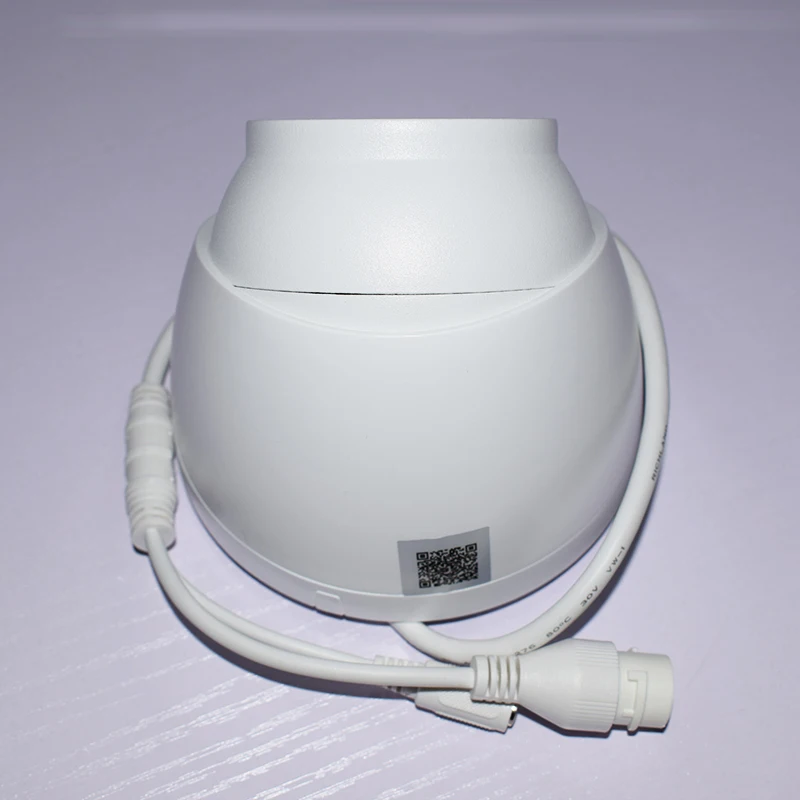

Model

DH-IPC-HDW4433C-A

Camera

Image Sensor

1/3'' 4 Megapixel progressive scan CMOS

Effective Pixels

268899(H)x1520(V)

Scanning System

Progressive

Electronic Shutter Speed

Min.lllumination

0.01ux/F2.0(Color),0lux/F2.0(IR on)

S/N Ratio

More than 56dB

Video Output

N/A

Camera Features

MAX.IR LEDs Length

30m

Day/Night

Auto(ICR)/Color/B/W

Backlight Compensation

BLC/HLC/WDR(120dB)

White Balance

Auto/Sunny/Night/Outdoor/Customized

Gain Control

Auto/Manual

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Lens

Focal Length

2.8mm/3.6mm/6mm optional

Max Aperture

F2.0(F1.9)

Focus Control

Manual

Angle of View

H:81° 55°

Lens Type

Fixed lens

Mount Tyoe

Board-in Type

Video

Compression

H.264/H.264H/H.264B/MJPEG

Resolution

4M(2688X1520)/4M(2560X1440)/1080P(1920X1080)/

720P(1280X720)/D1(704X576/704X480)/CIF(352X288/352X240)

Frame Rate

Main Stream

4M(1~20fbs)/3M(1~25/30fbs)

Sub Stream

D1/CIF(1~20fbs)

Third Stream

720P(1~20fbs)

Bit Rate

H.264:32kbps~10Mbps

Corridor Mode

Support

Audio

Compression

G.711a/G.711u/AAC

Interface

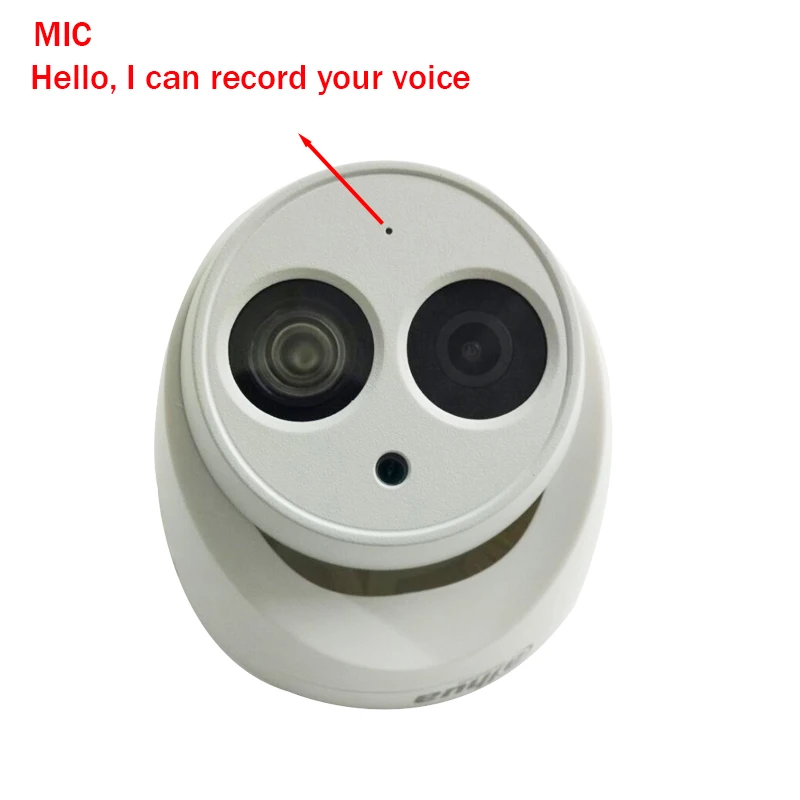

Built-in Mic

Smart Function(Optional)

Smart detection

Tripwire

Intrusion

Abandoned/Missing

Scene Change

Audio detect

Face detect

Ethernet

RJ-45(10/100Base-T)

Network

Wifi

N/A

Protocol

IPv4/IPv6,HTTPS,SSL,TCP/IP,UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP,SMTP,NTP,DHCP,DNS,PPPOE,DDNS,FTP,IP Filter, QoS, Bonjour,802.1x

Compatibility

ONVIF,PSIA,CGI

Max.User Access

20 users

Smart Phone

iPhone,iPad,Android, Windows Phone

Auxiliary interface

Memory Slot

N/A

RS485

N/A

Alarm

N/A

PIR Sensor Range

N/A

General

Power Supply

DC12V,PoE(802.3af)

Power Consumption

Max 3.7W

Working Environment

—30 ~+60  Less than 95%RH

Ingress Protection

IP67

Vandal Resistance

N/A

Dimensions

157*157*138mm

Weight

0.46kg

Not include the bracket, you can click picture to take iNot include the bracket, you can click picture to take it.

Positive Feedback

Note:
if you choose H2.64 model ,you can choose smart codec :on or off !
if you choose H2.65 model ,you must choose smart codec :off !
when the camera h2.65 model ,it can't support smart codec !
when you choose h2.65 model and choose smart code:on ,
The camera will restart by every 10 seconds ! The cameras will be damaged !
