Portable Ultrasonic Flow Meter TUF-2000H+TS-2+HS Digital Flowmeter |

Portable Ultrasonic Flow Meter TUF-2000H+TS-2+HS Digital Ultrasonic Flowmeter

Product description:



Hand Hold ultrasonic flowmeter/portable flowmeter utilizes two transducers that function as both ultrasonic transmitters and receivers. The Ultrasonic liquid flowmeter are clamped on the outside of a closed pipe at a specific distance from each other. The transducer of flowmeter can be mounted in V-method where the sound transverses the pipe twice, or W-method where the sound transverses the pipe four times, or in Z-method where the transducers are mounted on opposite sides of the pipe and the sound crosses the pipe once.



Product specification:



Item Hand Hold ultrasonic flowmeter/portable flowmeter Linearity 0.50% Repeatability 0.20% Accuracy ±1% of reading at rates>0.2 mps Response Time 0-999 seconds, user-configurable Velocity ±32 m/s Pipe Size 15mm-6000mm Totalizer 7-digit totals for net, positive and negative flow respectively Liquid Types Virtually all liquids Security Setup values Modification Lockout. Access code needs unlocking Display 4x8 Chinese characters or 4x16 English letters Communication Interface RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made by user requirements Transducer Cord Length Standard 5m x 2, optional 10m x 2 Power Supply 3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger Data Logger Built-in data logger can store over 2000 lines of data Manual Totalizer 7-digit press-key-to-go totalizer for calibration Housing Material ABS Case Size 210x90x30mm Main unit Weight 500g with batteries

Features:

* Large-screen LCD
* Built-in data-logger
* High accuracy measuring
* Small and light
* Non-contacting measuring
* Built-in rechargeable battery
* Wide measuring range
* RS-232/RS485 serial interface

  Packing:   1. Ultrasonic Flowmeter

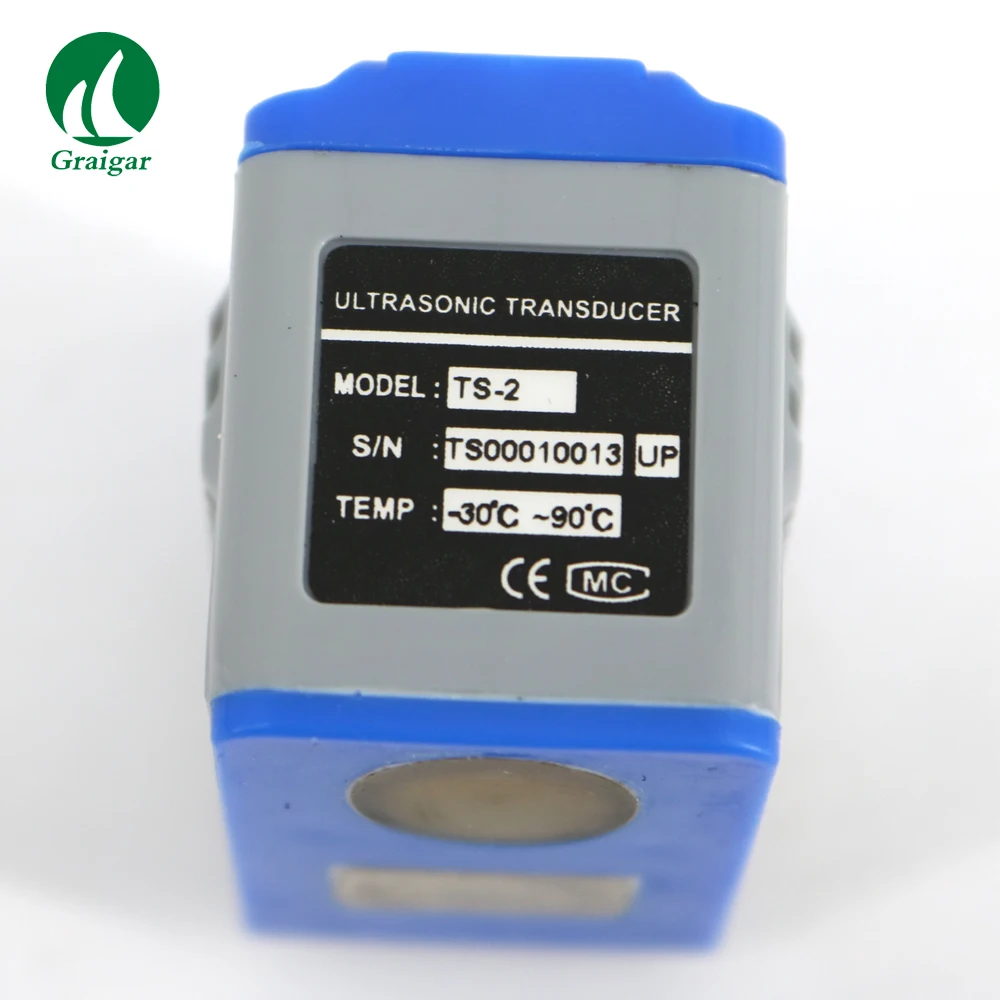

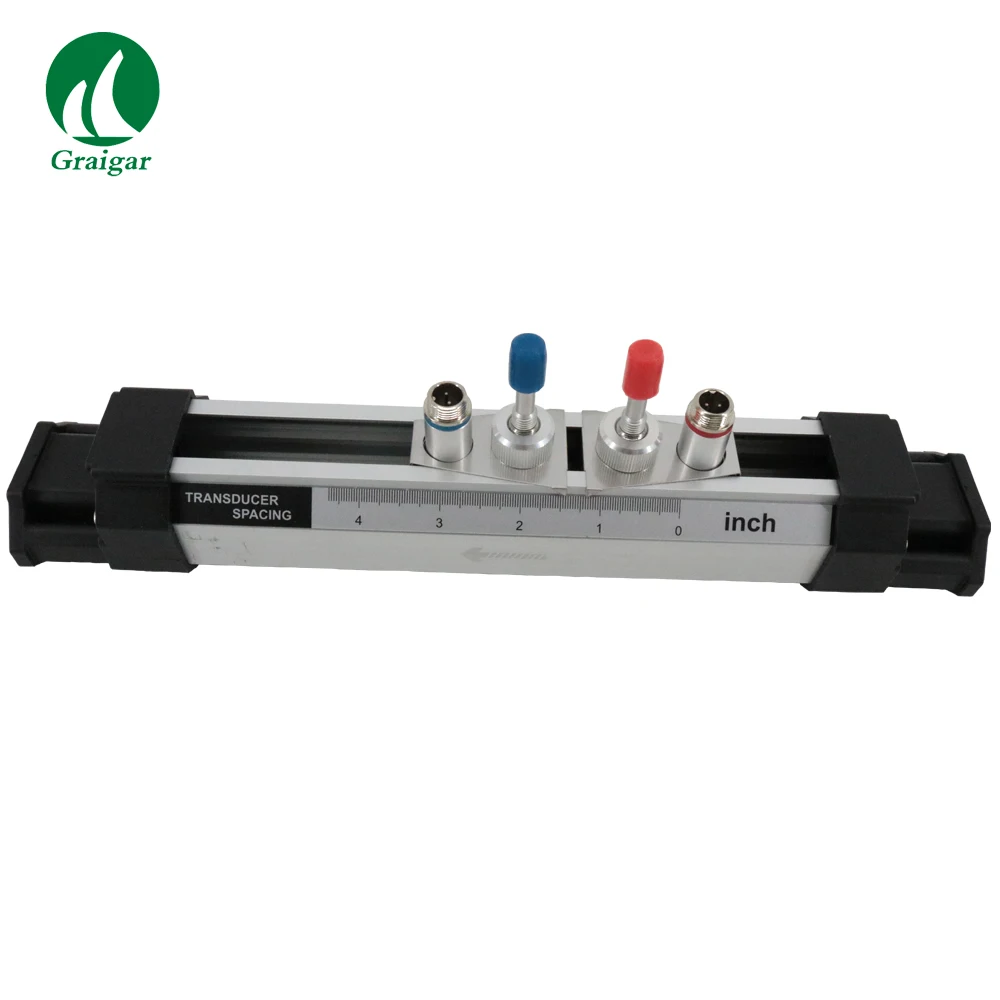

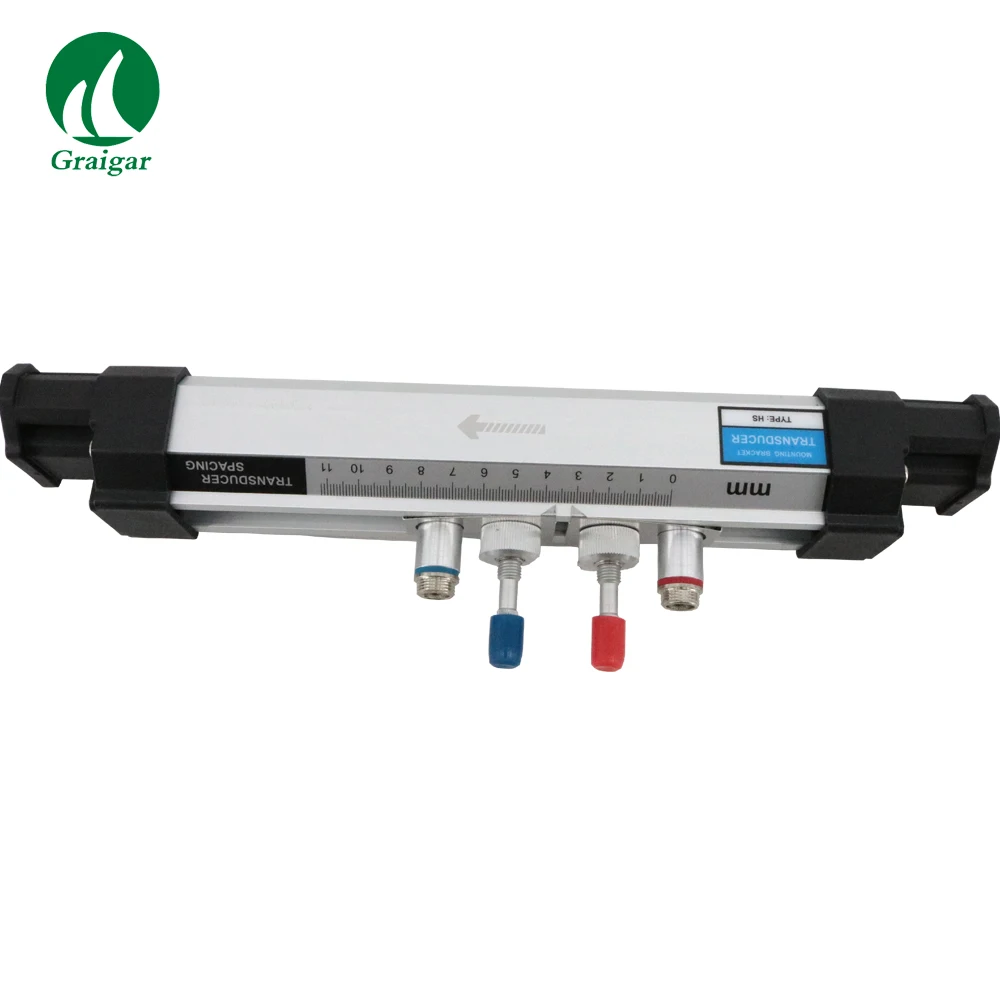

2. TS-2 Transducer +HS Mounting bracket clamp on
3. Signal cable
4. Data cable
5. Fixed steel chain
6. Charger
7. Ruler
8. Certificate of Warranty
9. Packing List
10. Empty Bottle
11. Carring box

There are kinds of transducers for choosing, please feel free to contact us for the details.
