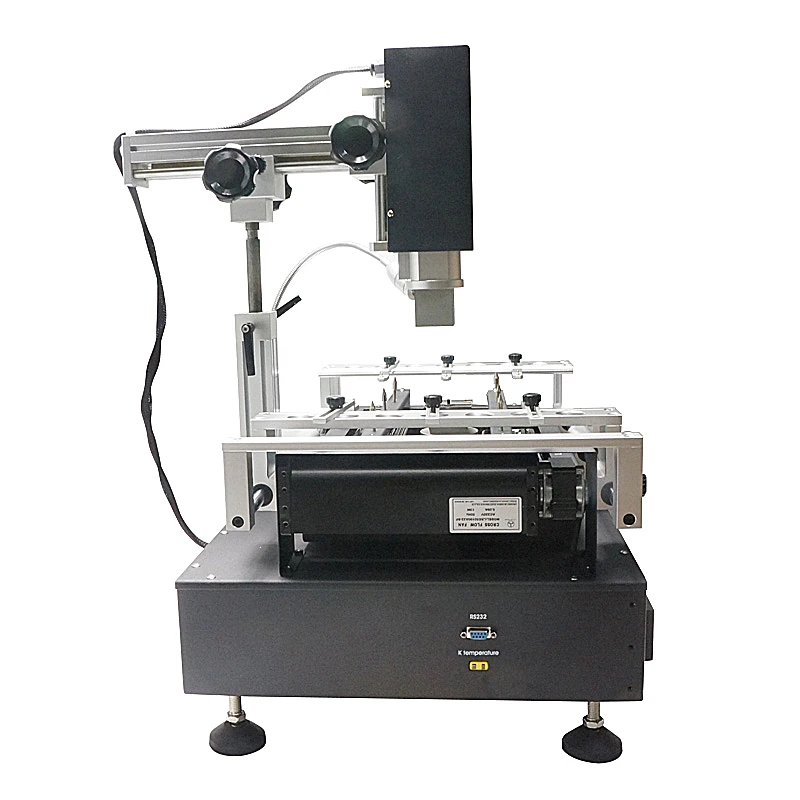

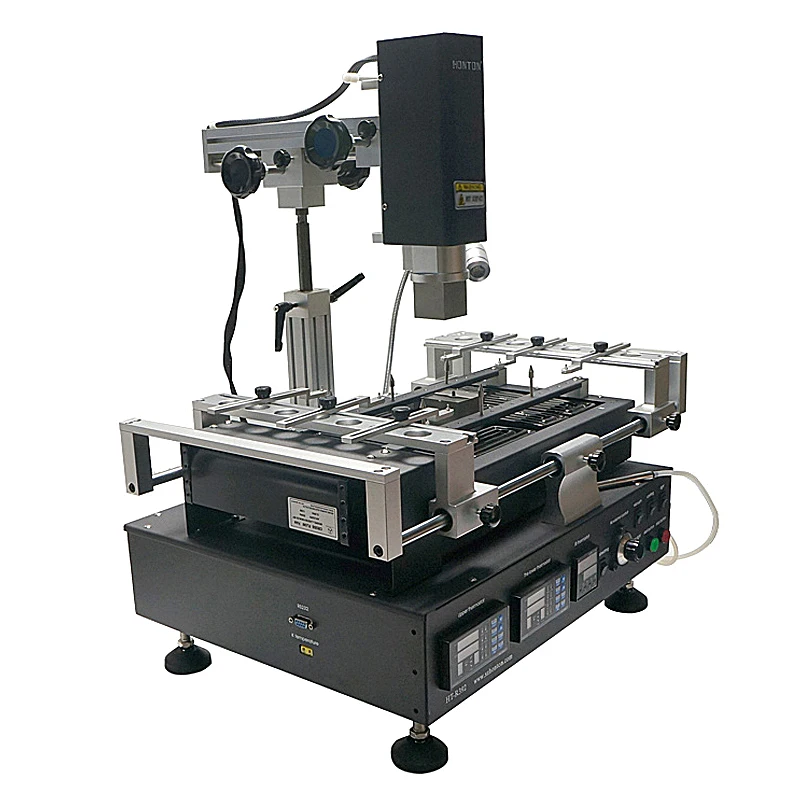

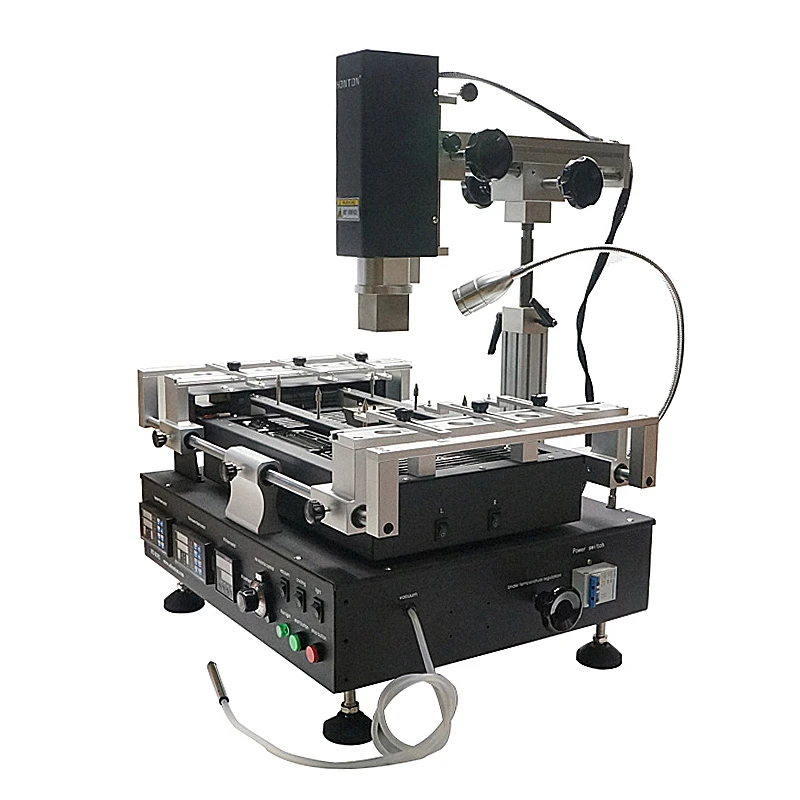

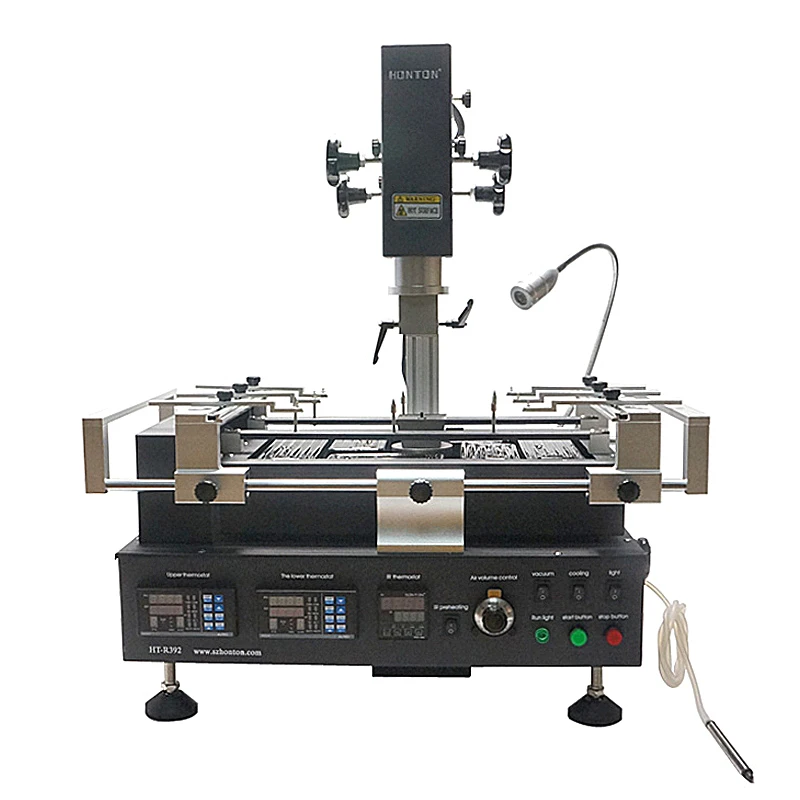

HT-R392 220V 110V Classic 3 zones BGA Rework Station years old brand Independent temperature control high-precision closed-loop |

  Classic 3 zones HT-R392  BGA Rework Station years old brand 220V 110V

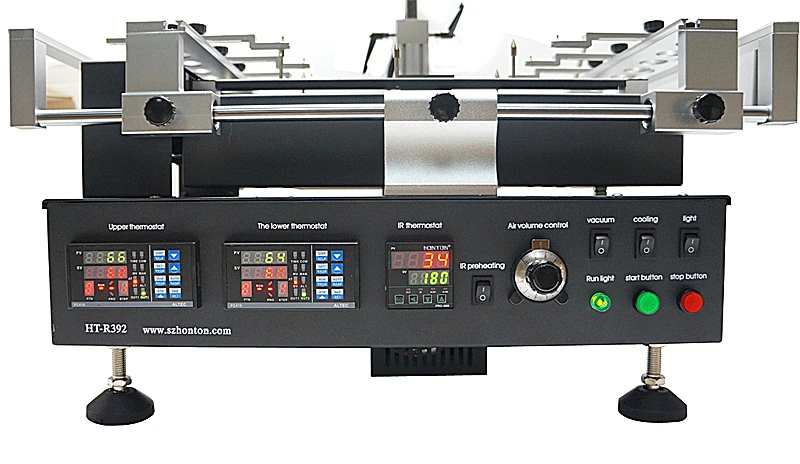

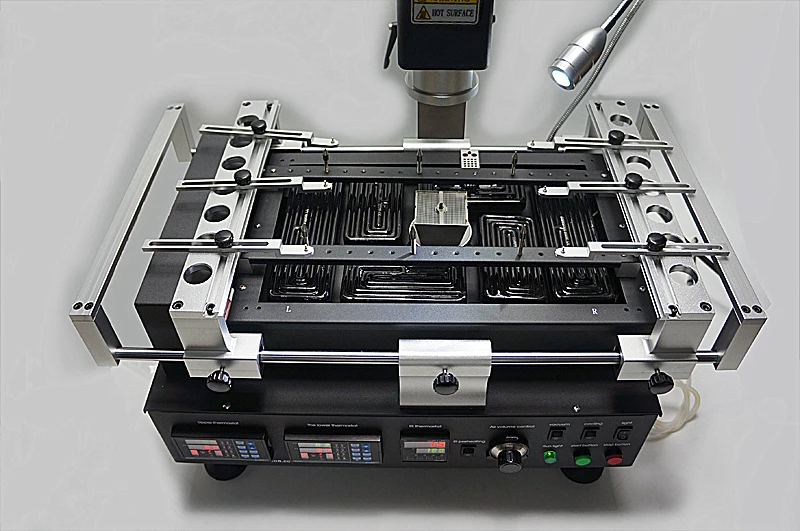

    RE:110V version not have built-in vacuum pump,will send FFQ939 manual vacuum pen in accessory box. Technical Parameters   Basic Parameters Heating HR Dimension L580mmx W580mmx H650mm Weight 32kg Total weight About 35 kg, vary with the differen need of the users Electrical Parameters Power 220V AC Upper Heating HR Size of upper (IR) --------------- Consumption of upper (IR) --------------- Nozzle of upper(HR) 4pcs: 19x19, 29x29,34x34,37x37 mm Consumption of upper (HR) 800W Bottom Heating HR Nozzle of bottom(HR) 1 pcs: 50x50 mm Consumption of bottom (HR) 800W Bottom Preheat IR Consumption of preheat (IR) 2400W General power 4KW Temperature Control Control mode of Upper Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, Alarm Control mode of Bottom Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, NO Alarm Rework Function SMD Suit for welding, remove or repair packaged devices
such as BGA,PBGA,CSP,multi-layer substrates, EMI

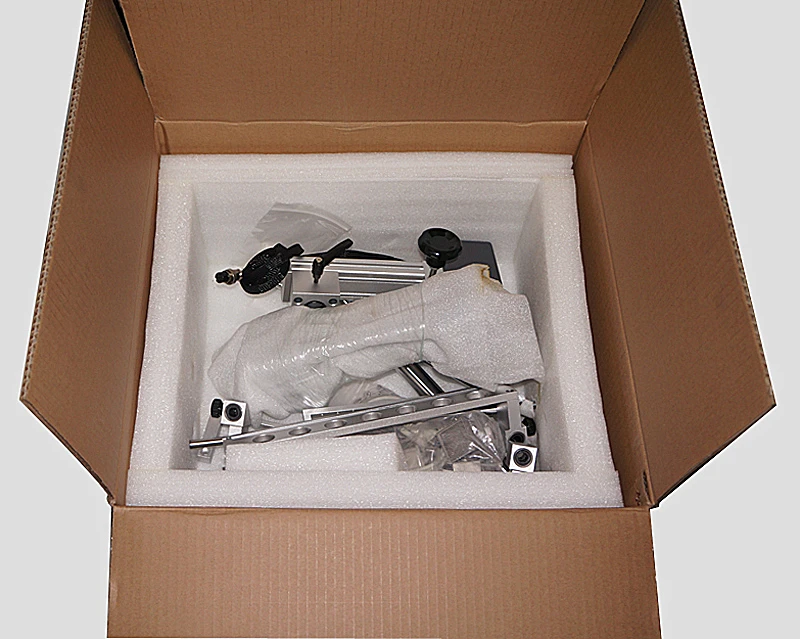

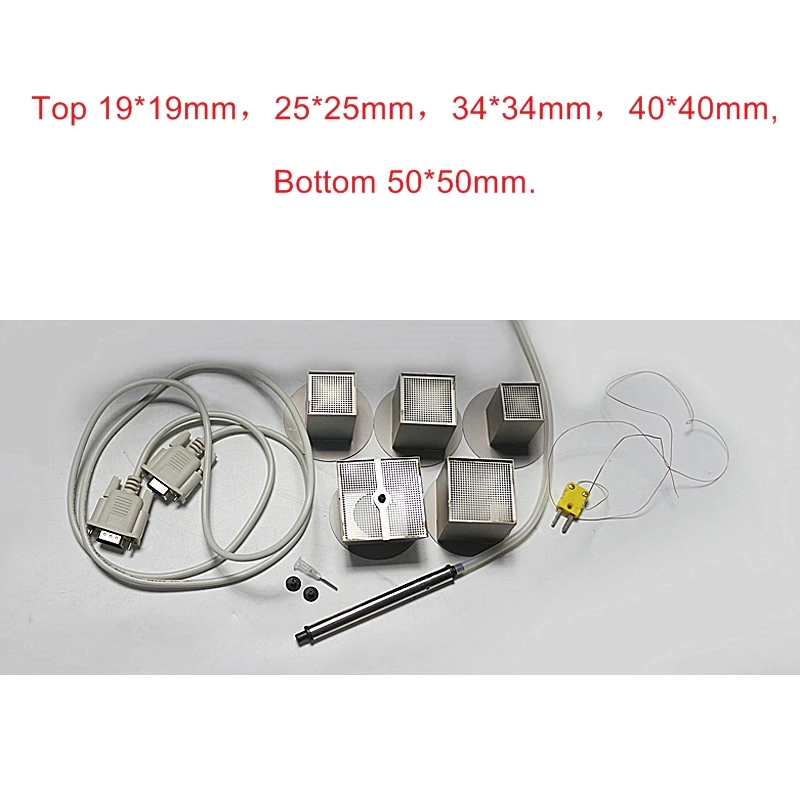

metallic shield product and solder/lead free Rework welding Size of applicable chips ≤80mm x80 mm Size of applicable PCB MIN 10mm*10mm         MAX 350mm*400mm   Packing list:   1× bga rework station 5× nozzles: 4 pcs top(19,29,34,37mm) and 1 pcs bottom(50mm); 6× pcb jig (with screw) 1x vacuum pen 1× k-type thermocouple 1x socket head wrench 1x Computer Cable 1× CD of manual and software (if not get, may be lost in customs, please contact us)
