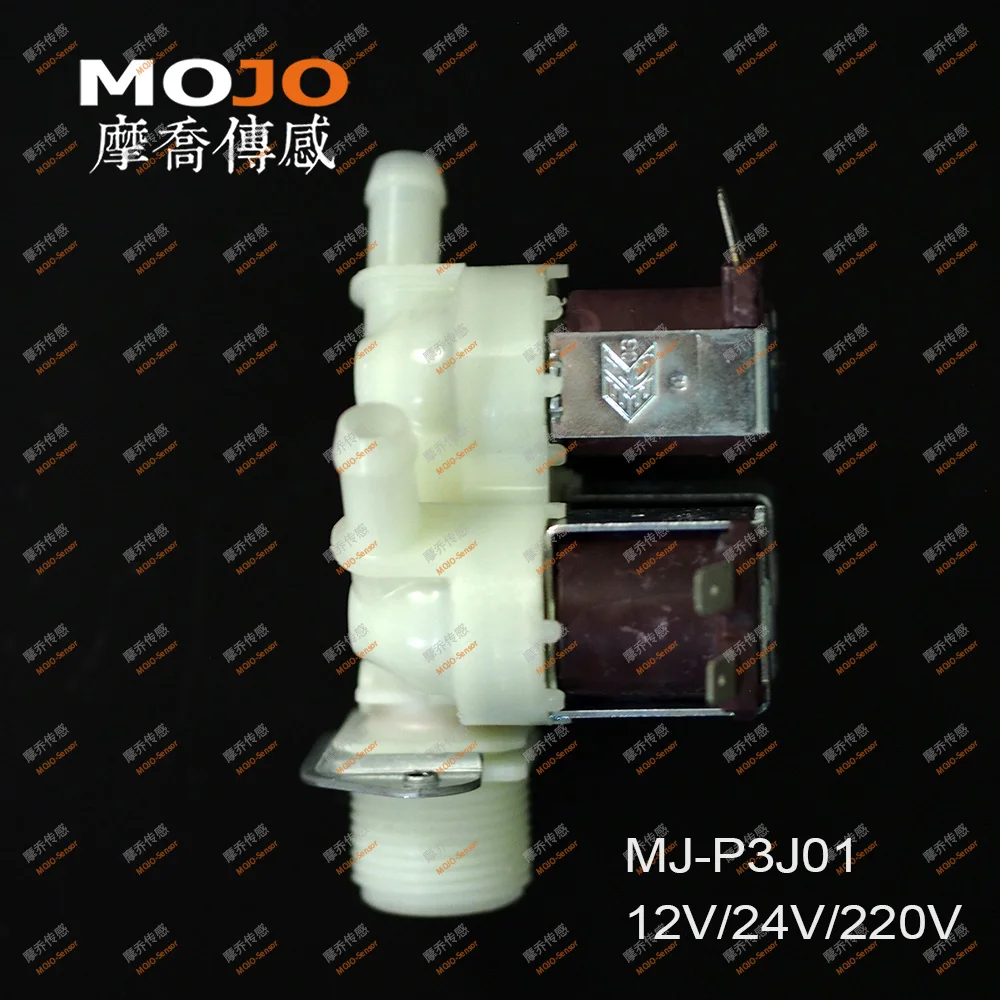

2020 MJ-P3J01 G3/4"-12mm Three output Normally Closed Inlet solenoid valve(1pcs/lots) | Valves

2020 MJ-P3J01 G3/4"-12mm Three output Normally Closed Inlet solenoid valve(1pcs/lots) | Valves

Product Show

Product description and advantage:

Solenoid valve used in the automatic control system, automatic solar water, infrared ray induction sanitary ware, showers, water machine, water control machine, automatic water machine, water boiler, the campus one-card equipment switch control, such as the inlet and outlet port at 180 ° Angle, says the pass-through Hun or linear valve!

Because of the variety type and size, before buying, please make sure which type you need in our store , due to time is limited so do not release both of the size,please understand, if you need other type of valve, please contact us!

Product main technical indicators and the matters needing attention:

1, The low pressure electromagnetic valve use environmental conditions:

1.1, Height is not more than 2500 meters above altitude.

1.2, The ambient temperature is 0 to 40 degrees.

1.3, Air relative humidity below 95% (when the temperature is 25 degrees)

2, The type and rated parameters:

2.1, Type: Type (one-way) electromagnetic valve, also known as packless pilot valve action type solenoid valve.

2.2, The rated voltage (dc) 3 v, 6 v, 12 v, 16 v, 24 v, 36 v 2.3, rated current: 3 v - 650 ma, 6 v - 500 ma, 12 v - 300 ma, 16 v - 260 ma, 24 v - 230 ma, 36 v - 150 ma, (pulse) 6 v - 180 ma.

2.3, The work style: short quotas) duty cycle

2.4, Insulation class: E insulation.

2.5, Using the medium (0-55 degrees), water ,vapor.

2.6, Using pressure: 0.02-0.8 Mpa.

2.7, The water flow characteristics:
