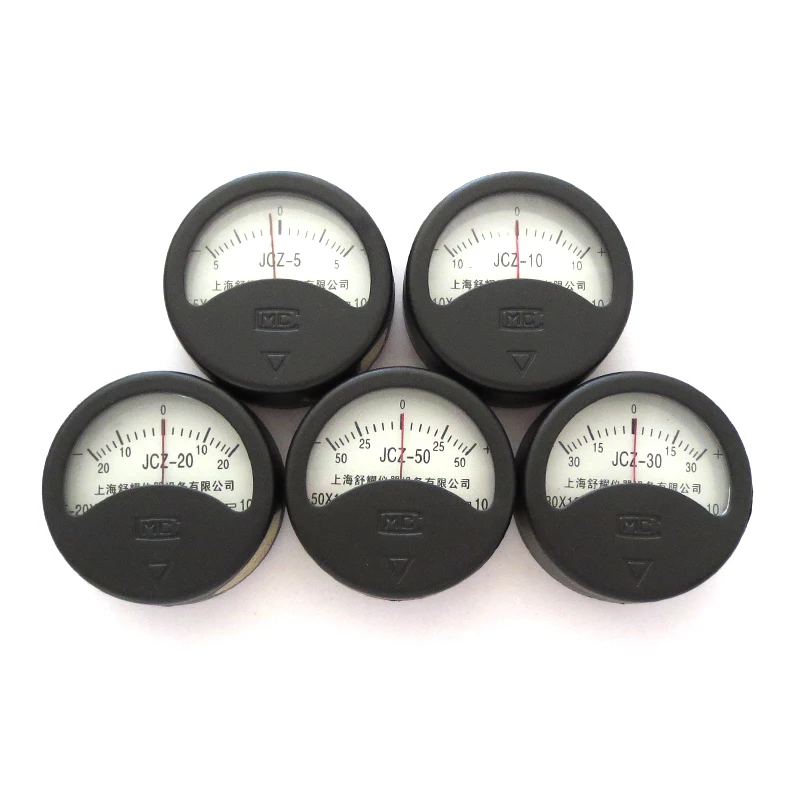

JCZ-10/5/20/30/50 Pointer Type Magnetic Field Strength Meter Remanence Intensity Gauss Meter gaussmeter Teslameter Magnetometer

Magnetic probe accessories for ferromagnetic materials and parts in the process of the use of direct measurement of the amount of magnetic,

Also used after magnetic particle inspection, measurement of workpiece residual magnetic field demagnetization processing instructions.
Range of use:
Magnetic field strength meter

Measurement range (Tesla)

Accuracy

Exterior dimension

JCZ-5

10-4 * 0-5

+ 10%

Diameter 60mm * 23

JCZ-10

10-4 * 0-10

+ 10%

Diameter 60mm * 23

JCZ-20

10-4 * 0-20

+ 10%

Diameter 60mm * 23

JCZ-30

10-4 * 0-30

+ 10%

Diameter 60mm * 23

JCZ-50

10-4 * 0-50

+ 10%

Diameter 60mm * 23

This instrument can be in-10-50Degree and relative humidity80%Normal use.
Usage method:
In measurement should be the strong magnetic instrument arrows attached to the measured workpiece, and the meters on both sides of the direction of movement, moving the measured maximum value shall be measured the amount of residual magnetism.
Matters needing attention
Due to the high sensitivity of the magnetic strong instrument, will be subject to the induction of the geomagnetic field, so the general magnetic strong meter should be measured along the direction of the East and west. Actual use is subject to conditions, if no longer in the direction of the measurement of the direction of the measurement, the measured value should be taken into account the impact of the amount of the earth's magnetic field.
In addition to the measured object, the surrounding environment should not have a strong magnetic field, so as not to increase the measurement error.
Storage and maintenance

The strong magnetic apparatus not used for a long time, please be strong magnetic apparatus cleaning into plastic bags, storage environment temperature is 0-40 deg.c relative humidity was 80%, the air does not contain corrosive gas storage in and around should not have a strong magnetic field and strong mechanical vibration.
Conversion unit
1Gaussian10-1 * =1No special10-4 * =1Tesla
