Upgrade Wouxun KG-UVD1P Weather Broadcast 136-174/216-260MHz  DTMF Encoding IP55 Waterproof  Amateur Ham Radio Walkie Talkie

MAIN FUNCTIONS:

1.Weather Broadcast Channels scan (In the USA)

In the USA,the VHF Weather Broadcast Station Memory Channel Bank has been pre-programmed at the facory for immediate access to NOAA weather information stations.

2.136-174/216-260MHz, It is a special frequency, with 2 Pcs antennas(136-174/216-240MHz and 136-174/240-280MHz), It is different from normal KG-UVD1P(136-174/400-470NHz
3.1750 Hz Burst Tone

4.DTMF Encoding Function

5.Working Mode :vhf tx-uhf rx or uhf tx-vhf rx can be set freely

6.CTCSS/DCS Scan

7.VOX and SOS Function

8.Bright Flashlight Illumination

9.Digital FM Radio

10.Bandwidth Selection

11.Priority Scan ,Add Scanning Channel "

12.High/Low Power Selection

13.50 Groups CTCSS/105 Groups CCTCSS

14.IP55 Waterproof

Upgrade Wouxun KG-UVD1P Weather Broadcast 136-174/216-260MHz  DTMF Encoding IP55 Waterproof  Amateur Ham Radio Walkie Talkie

MAIN FUNCTIONS:

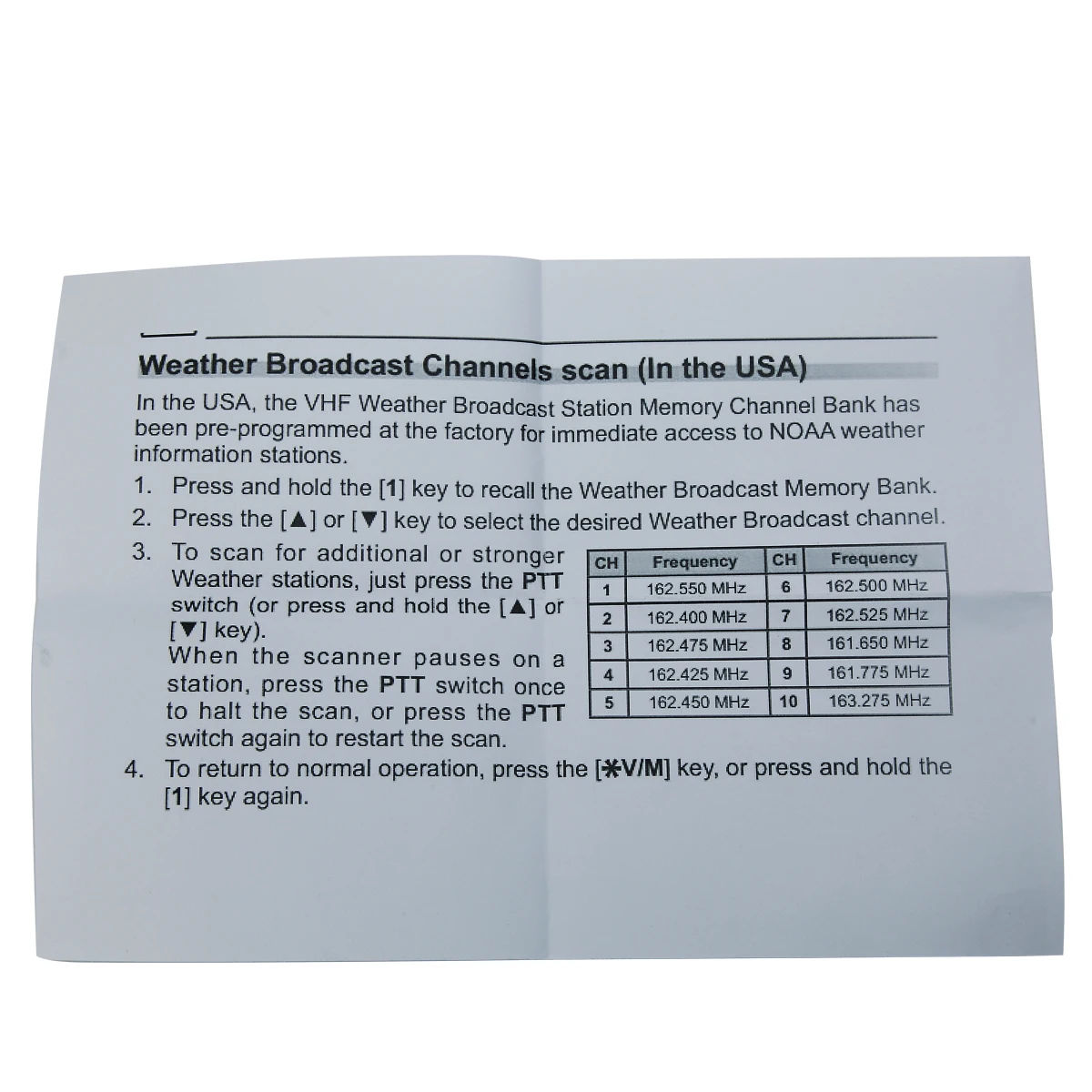

1.Weather Broadcast Channels scan (In the USA)

In the USA,the VHF Weather Broadcast Station Memory Channel Bank has been pre-programmed at the facory for immediate access to NOAA weather information stations.

2.136-174/216-260MHz, It is a special frequency, with 2 Pcs antennas(136-174/216-240MHz and 136-174/240-280MHz), It is different from normal KG-UVD1P(136-174/400-470NHz)
3.1750 Hz Burst Tone

4.DTMF Encoding Function

5.Working Mode :vhf tx-uhf rx or uhf tx-vhf rx can be set freely

6.CTCSS/DCS Scan

7.VOX and SOS Function

8.Bright Flashlight Illumination

9.Digital FM Radio

10.Bandwidth Selection

11.Priority Scan ,Add Scanning Channel "

12.High/Low Power Selection

13.50 Groups CTCSS/105 Groups CCTCSS

14.IP55 Waterproof

Function:

Frequency Range

Frequency range can be suitable for different countries or areas:

136-174MHz&216-260MHz(Rx/Tx),

Memory Channels

128 Channels

Frequency Stability

2.5ppm

Operating Voltage

7.4V

Operating Temperature

-30~+60

Waterproof

IP 55

Antenna Impedance

50Omega

Dimension

58times105times38(mm)

Weight

250g

Transmitter

Frequency Stability

.5PPM

RF Carrier Power

UHF: 4W VHF: 5W

Effective Radiation Power (ERP)

within pre-determined value 7.5dB

Max. Frequency Deviation

Channel Space: 25KHz

Channel Space: 12.5KHz 2 5KHz

Audio Modulation

+3dB (pre-emphasis by 6dB between 0.3-3KHz)

Adjacent Channel Power

Channel Space: 25KHz ge70 dB Channel Space: 12.5KHz ge60 dB

Spurious Radiation

le-30dBm

Inter modulation Attenuation

ge40dB

Modulation Distortion

le10%

Residual FM

le-35dB

Residual AM

le3%

Receiver

Sensitivity (12dB SINAD)

0.16microV

Squelch Rejection Sensitivity

le0.8microV

Squelch Sensitivity

le0.2microV

Audio Output power

500mW

Audio Distortion

le5%

Audio Response

(300-3000Hz) +1 to -3dB

Co-channel Rejection

ge-8.0dB

Performance of Amplitude Limiter

le3

Adjacent Channel Selection

Channel Space: 25KHz ge70 dB Channel Space: 12.5KHz ge60 dB

Inter-modulation

ge65 dB

Resistance

ge84 dB

Spurious Radiation

9KHz-1GHzle-57dBm 1GHz-4GHzle-47dBm

Factory standard:

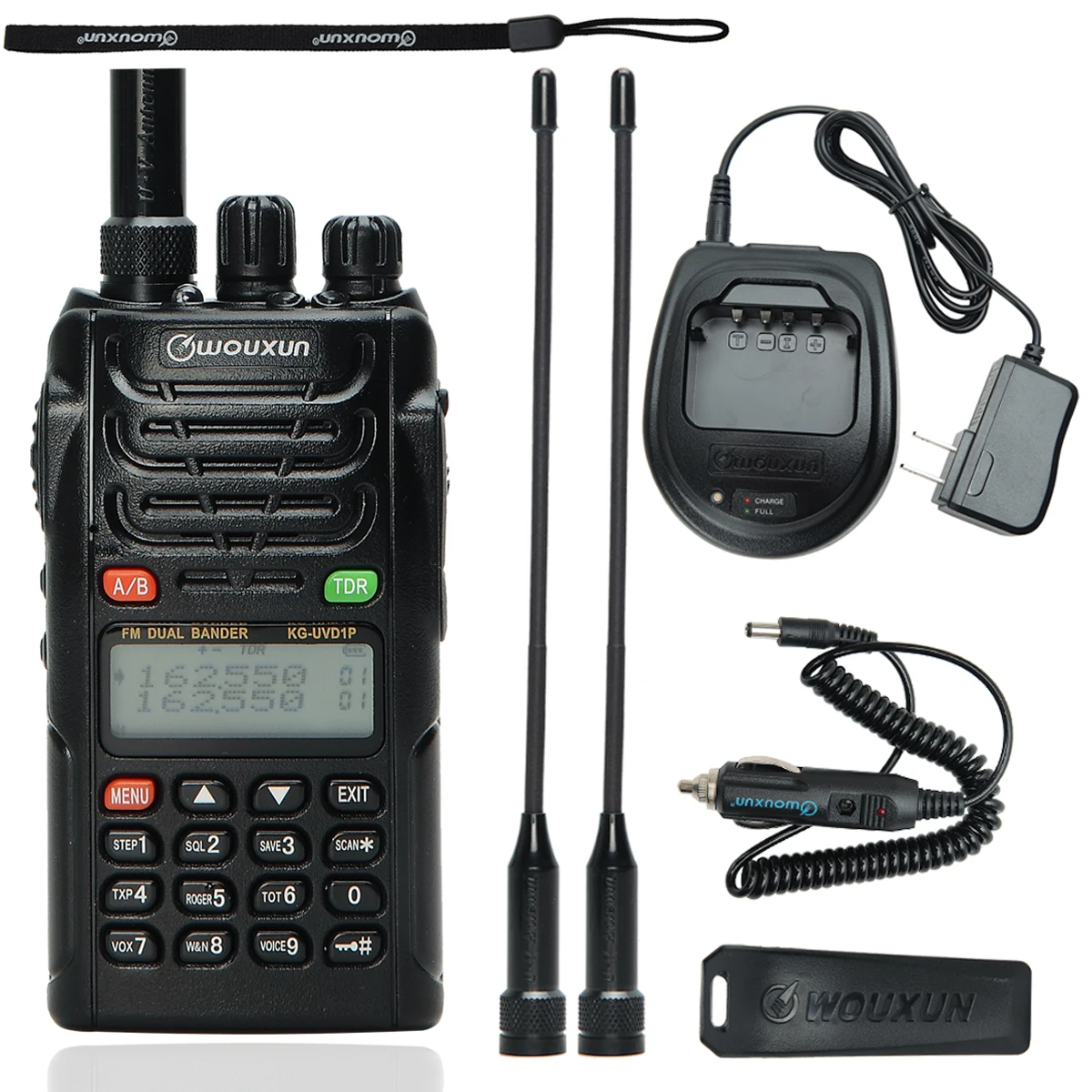

1 x Wouxun KG-UVD1P Radio
1 x 1700mAh Li-ion Battery
2 x Original High Gain Antenna
1 x Charger
1 x Belt clip
1 x Hand Strap
1 x car charger cable
1 x Userrsquos English Manual Book
