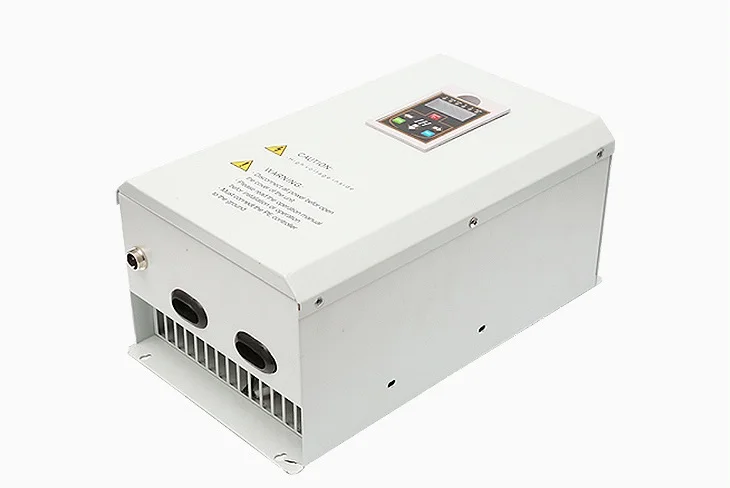

8000W 380V electromagnetic heating control panel

WE CAN OFFER HIGH TEMPERATURE INDUCTION COIL,HIGH TEMPERATURE COTTON,HIGH TEMPERATURE SILK RIBBON TOO,WELCOME TO SEND ENQUIRY!

Electrical Specifications

1.Rated voltage frequency: AC 380V / 50Hz

2. the voltage range: 350V to 450V

3. Rated Power: 8KW-(12A * 220V * 3)

4.Using of the program: Hard Lock-series-resonant half-bridge solution

5.the electromagnetic induction coil Specifications: more thank 6 square millimeter

6 load matching inductance:

8KW

195 ± 5UH coil height 1.0-1.5 (flat disc). 26-30M coil height 1.8-2.5 (wound)

Environmental Adaptability

1. temperature: -20-60

2.Humidity: lower than 95%

Basic Performance Overview

1.the voltage and power characteristics: 350 to 420V constant power output;

2. the thermal efficiency more than 90%

3.IGBT normal working temperature:  15 degree (overheat protection temperature: 95);

4. the operating frequency :16-22KHz;

5. half-bridge series resonant;

6.with a soft start heating / stop mode;

7. with a heating coil short circuit protection;

8. having a plurality of coil power of 120KW superimposed over the work without any interference;
