Safety Regulations

For your safety, please read this handbook carefully to be more familiar with the application and limitations of the machines and the related potential risks.

Read the instructions before using the equipment

Do not boot the equipment before closing the bin gate

This machine adopts the third grounding method. It is important to keep the grounding normal. Poor grounding will cause the dangers towards the machine and user

Electricity Box should not be opened without professional staffs are present

Parameters

AC220V  1500W

Power:

AC110V,AC220V

Selective:

Work Environment: 20-30℃, clean and dust-free

Laminating: Flat Type Lamination

40S/5pcs

Production Efficiency:

Heating Method: Constant temperature

Applicable Size: Below 17＂

Size of Equipment: 490*530*500mm

Packing dimension:540*560*560mm

Laminating area:390*250MM

Height of Equipment: About 45kg

Gross weight:about 52KG

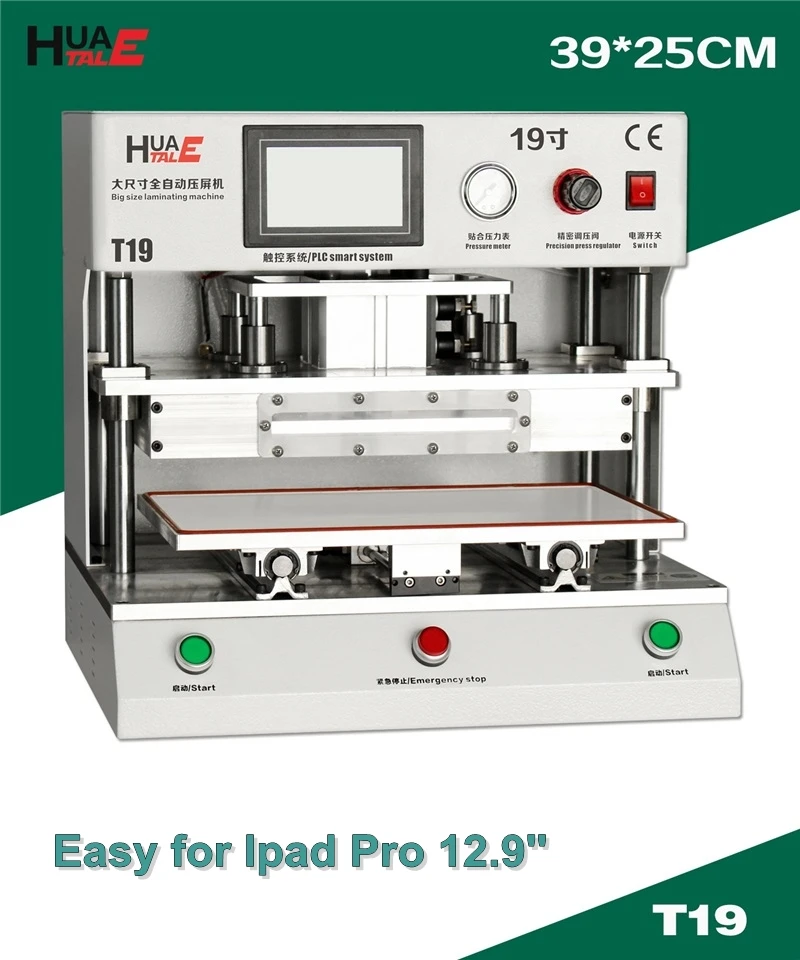

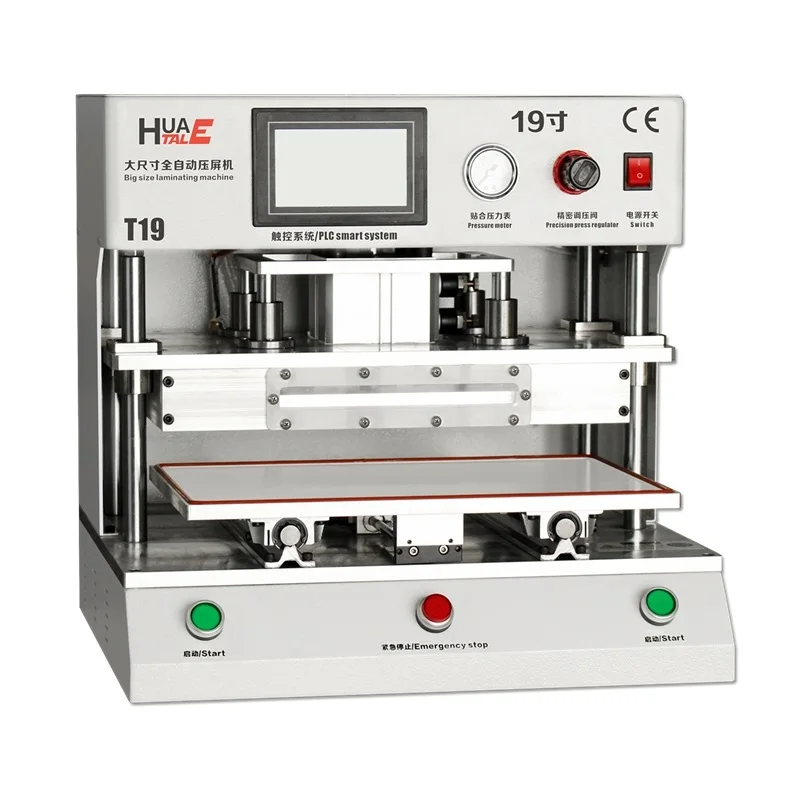

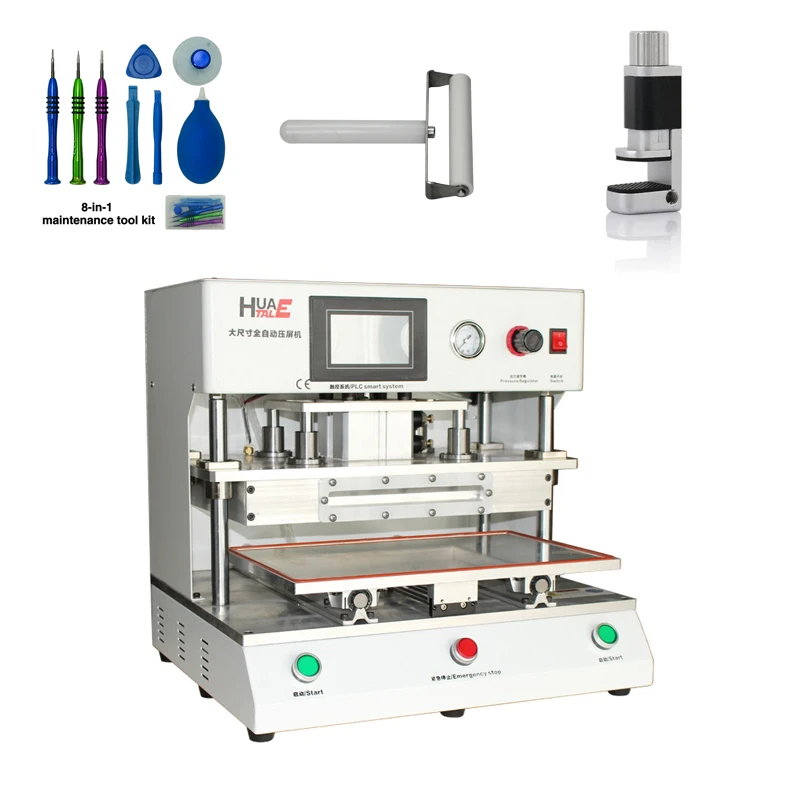

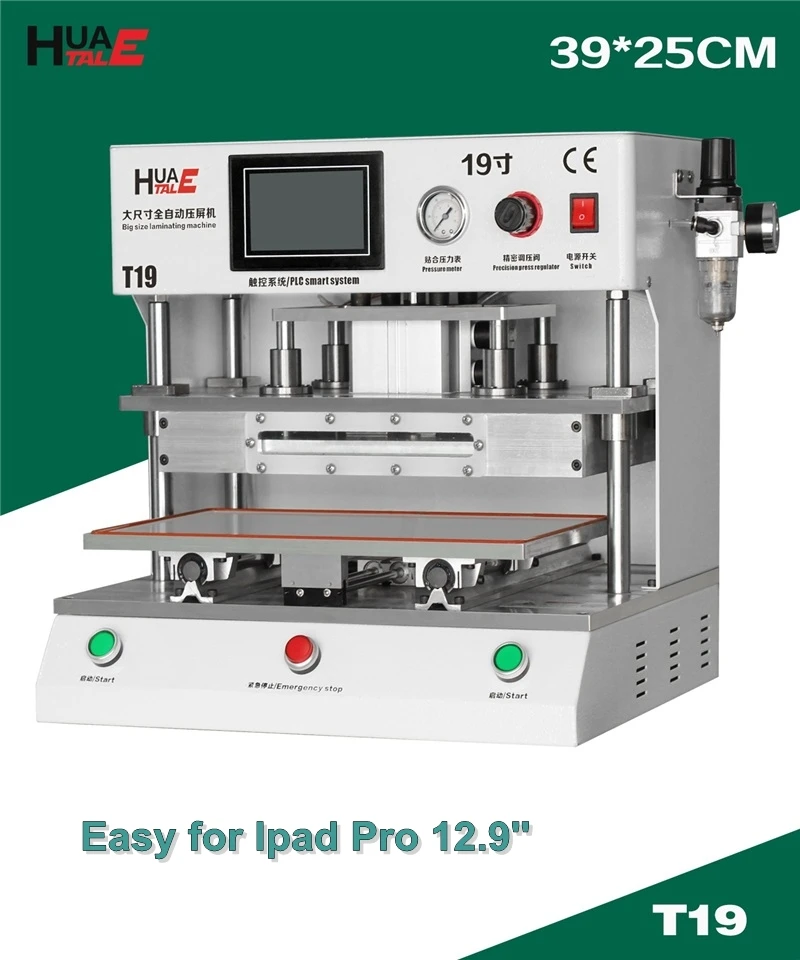

Features

Press to Boot, Easy Operation

Smart Constant Pressure; PLC smart system control

17 inches big laminate platform,high efficiency;

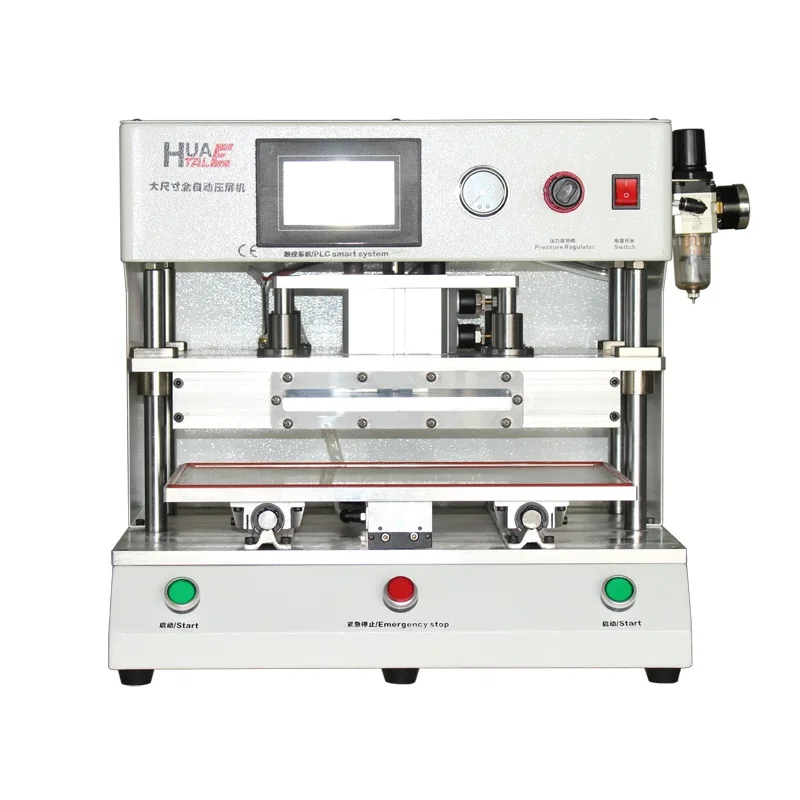

Operation Process

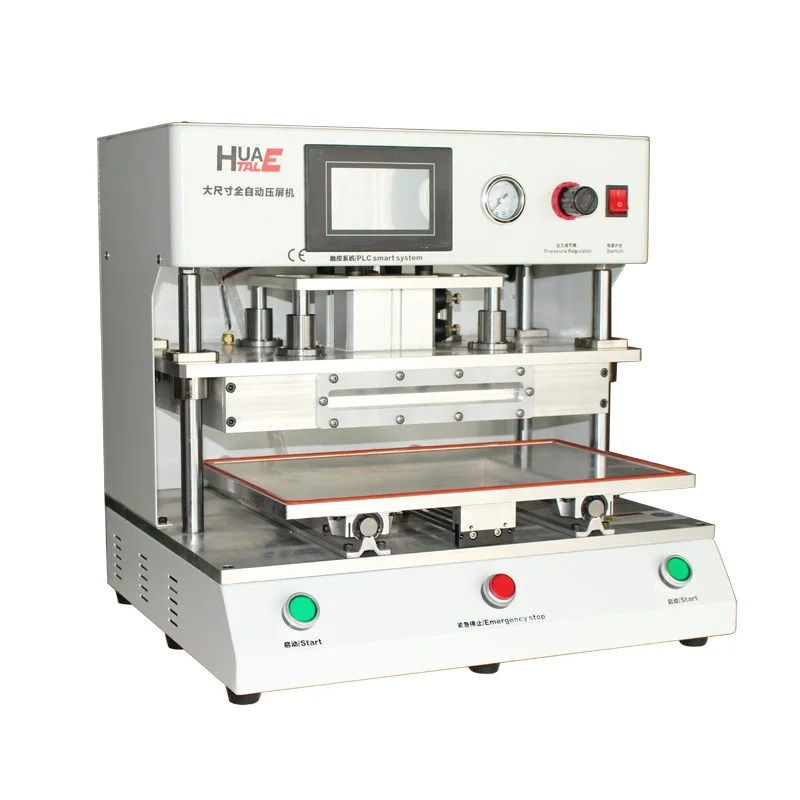

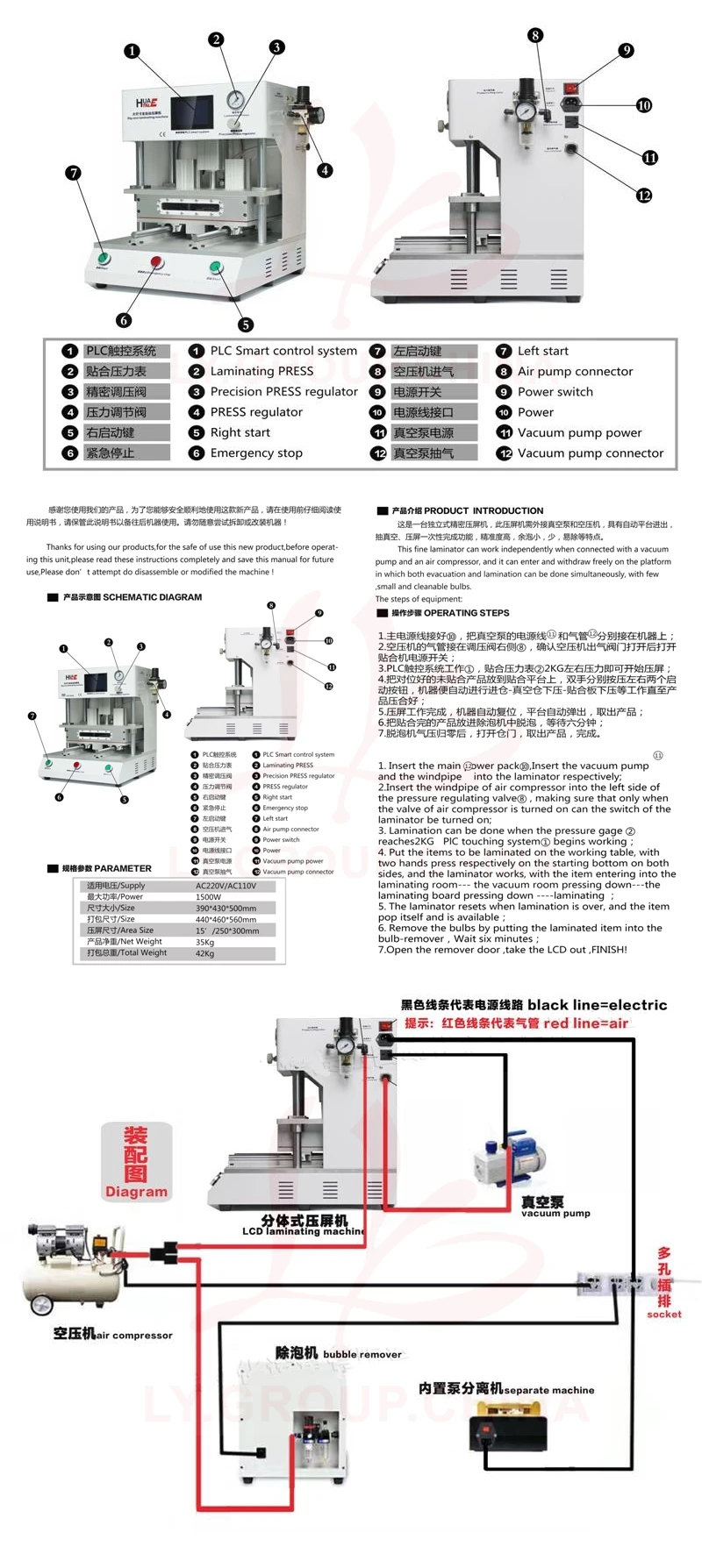

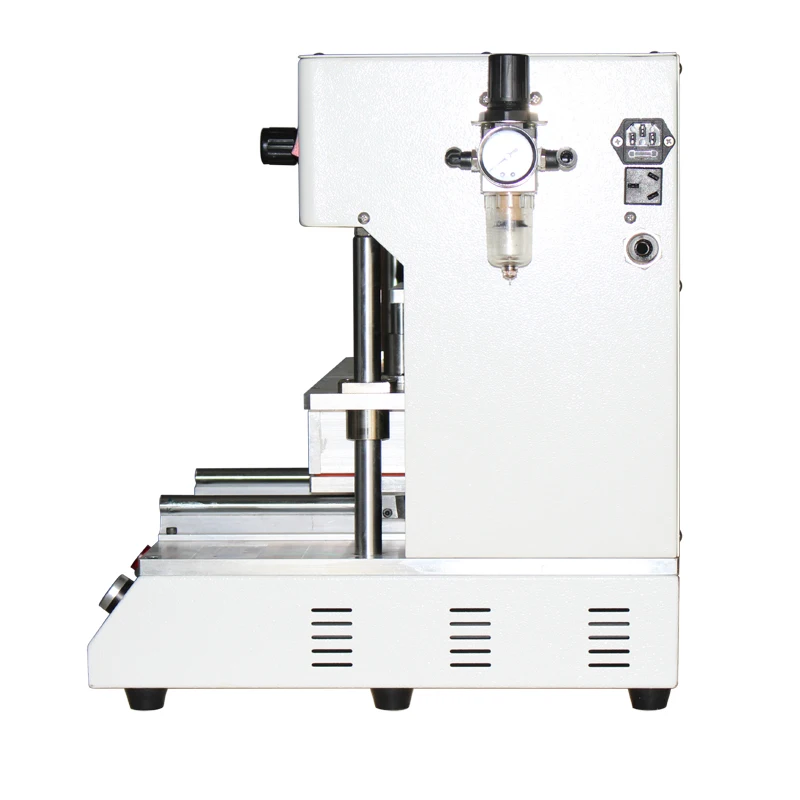

1.   Insert the main power pack⑩,Insert the vacuum pump    and the windpipe    into the laminator respectively;

2.Insert the windpipe of air compressor into the left side of the pressure regulating valve⑧ , making sure that only when the valve of air compressor is turned on can the switch of the laminator be turned on;

3.   Lamination can be done when the pressure gage ②reaches2KG   PlC touching system① begins working;

4.   Put the items to be laminated on the working table, with two hands press respectively on the starting bottom on both sides, and the laminator works, with the item entering into the laminating room--- the vacuum room pressing down---the laminating board pressing down ----laminating ;

5.   The laminator resets when lamination is over, and the item pop itself and is available;

6.   Remove the bulbs by putting the laminated item into the bulb-remover,Wait six minutes;

7.Open the remover door ,take the LCD out ,FINISH!

Maintenance

Projects

Items

Formwork

Check that whether there are some foreign matters. If positive, please clean them

Lamination Guide Pillar and Work Platform Sideway

Add some lubricating oil to the guide pillar and sideway regularly to make sure the movement is smooth

Relation between Vacuum Degree and Altitude

Generally, the design and tested parameters of the vacuum pump are conducted under the standardized air pressure environment. If the altitude is changing, the exact performance will also change. The exact parameters are displayed in Table 1.

Altitude

(m)

Vacuum Degree

(-Mpa)

(mmHg)

0

0.1013

760

200

0.0990

742.7

400

0.0968

726.2

500

0.0957

717.9

1000

0.0902

676.7
