 Package List:
- 1 x  Gimbal
- 1 x  SBUS Decoding module x 1
- 1 x  5V OUT & SBUS Receiver x 1
- 1 x  SBUS Decoding module & Gimbal Connection Cable x 1
- 1 x   SBUS Decoding module & Assistant module x 1
- 1 x   Camera remote x 1

Remark:

- Gimbal Connection Micro-USB Cable (Not included,you can choose to buy)
- Micro-SD Card (Not included,you can choose to buy)

The state intellectual property has been awarded the TAROT model.ltd five patents. Any units orindividual without the license holder manufacture, copy, use and sell the product will be patent lawsuit.

Product Description:
- TAROT PEEPER T10X,a great 3-axis gimbal for model aircraft enthusiasts,it provides a 10x optical zoom.The F2.0 uses 1/3 colour CMOS4 image sensor supports approx.4 million effective pixels(2688 x 1520).With unique internal wiring design,built-in IMU gimbal control module,specialized servo drive module,can be widely applied to various model aircaft activities and entertainments.
- 10 times optical zoom to break through the limitations of light and space, giving a new visual dimension, anytime, anywhere to capture a clear, precise large area search. Make work more efficient, easy and safe.
- The whole CNC with the overall structure of the ball with an integrated industrial design, lightweight and the strongest stability.
- High precision driving algorithm, independent IMU control PTZ posture, attitude control accuracy of 0.02 degrees, the integrated precision servo drive module.
- Point angle is 420 degrees, support 3-6S wide voltage input.
- Micro-SD card slot is overhead to avoid the rain influence function.
- HDMI1.4 HD output port.
- It is widely used in public security monitoring, power patrol, search and rescue, environmental law enforcement, remote sensing mapping, life exploration and other types of UAV
- Support SBUS decoding module upgrade port, using the Micro-USB link to the computer to upgrade parameters.
- The state intellectual property has been awarded the TAROT model.,ltd five patents. Any units orindividual without the license holder manufacture,copy,use and sale the product will be patent lawsuit.

Product Specifications:
- Name:TAROT PEEPER T10X
- Input power:3S-6S Li (11V-26V)
- Working Current:250ma
- Working environment Temperature:-20--+50
- Weight:365g

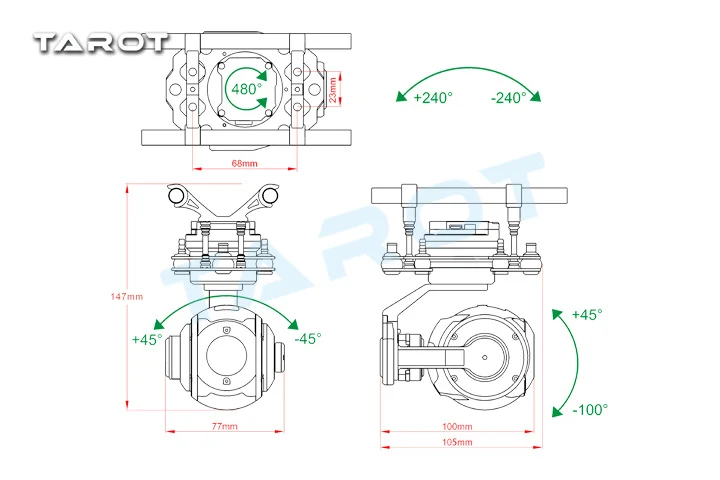

- The max outline dimension (length,width,height):77mm*105*147mm
- Controllable Revolve range:pitch:-100 degree--+45 degree;point:-240 degree--+240 degree
- Attitude control accuracy:+-0.02 degree

Camera Specifications:
- Sensor:the effective pixels:4 million
- 1/3 colour CMOS 4 (2688 x 1520 pixels) image sensor
- Camera lens:10 times optical zoom lens;Aperture value:F2.0;F=4.9mm--49mm;zoom moving speed:Optical wide-angle,Optical large focus:3.2 seconds;Focusing moving time:(oo-near):1.5 seconds
- Diagonal FOV:66.6 degree--7.2 degree (A1)
- The minimum focusing distance:10mm--300mm
- Video storage format:MOV
- Working mode:Record Mode
- Exposure mode:Program auto exposure(Default shutter priority exposure)
- Exposure compensation:+-2.0 (Take 1/3 as step length)
- Metering mode:over-all integral metering
- Electronic shutter speed:auto
- White balance:auto/Daylight/cloudy day/fluorescent lamp/tungsten lamp
- Video Subtitle:support
- One key zoom to single image:support
- Anti flicker:support
- PAL/NTSC Standard:support
- Support Memory card type:The max 32GB
- Support file system:FAT32(<=32GB)
- Parameter adjustment software support platform:Windows XP/VISTA/7/8/
