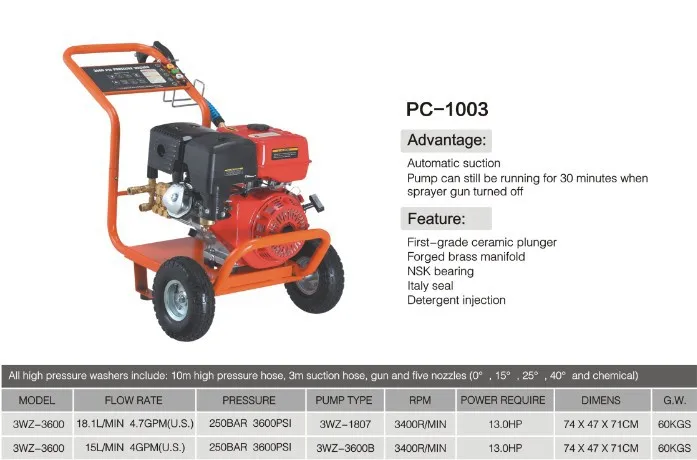

PC-1003 series all copper high pressure plunger pump Washer

Instruction

   1. Before starting to prepare:

   a. Before starting the check inlet filter is properly installed.

   b. The box must be checked before starting the engine oil to the oil window in half, whether diesel fuel has been added.

   c. Into the water before starting the installation, note: the inlet pipe must be connected securely (rubber mat inlet pipe Φ26 * Φ14).

   2. The new machine for the first time, you can not install the filter first, will take over the filter end connected to water pipes, water valves open, start washing machine, to be greater than the amount of water outlet pipe is not turned on, and then work 5 or so seconds, stop. The wife of the factory after the filter is securely connected into the bottom of the storage tank.

When using a storage tank must be filled with clean water

  3. The outlet connection:

      The connector is connected to the high pressure hose fittings on the booster pump outlet port; connected connector on the other end of the gun.

   4. Nozzle choice

Fan nozzle

Generate fan jet, fog horn small cleaning power. Can be used for large area cleaning dirt surfaces, such as cars, buses, trucks, tractors and various other vehicles, ships, farms and food processing, hotel kitchens, baths, swimming pools, farming classes, housing and animal husbandry machinery and high-rise facades of cleaning.

Hole nozzle

Can produce a powerful jet bundle, surface soil is particularly serious for cleaning. Such as agricultural machinery, construction machinery and so on.

5. When the cleaning operation , the nozzle and the surface to be washed away not too far , not more than 10 cm . Reduced by the impact with the nozzle spray distance is increased.

  6. Under normal conditions , cleaning pressure does not exceed the rated working pressure is appropriate, if you have special needs, but also the pressure rose to the highest pressure of the machine , but the machine is not recommended long-term operation at the maximum pressure.

  7.  After use , you must fully release the pressure in the gun

  8.  When used , scuppers pump out the water droplets does not affect the use of normal operation.

  9.  After using the machine for an extended period : Note whether the machine has a diesel engine oil is replaced.

Maintenance

  1. Replace the engine oil every 100 hours , it is recommended to use CD15W-40 motor oil , oil for ensuring the proper use of the machine life is very important.

  2. In case there are icy cold weather or when not in use , the machine should be clean and the remaining water from the long-term , is: the inlet pipe out of the water, open water cannon power for about 1 minute . At the same time remove the inlet and outlet to drain even though the remaining water.

Attention

  Warning

  When the filter is not installed right . Prohibit running pressure washer , do not add the wrong fuel !

  Danger:

  1.  Wary jet, spray dangerous generated .

  2.  People aware of the dangers of injection and electric shock.

  3.  Wary of the risk of high temperature burns and scalds .

  4.  Alert does not meet safety hazard specification.
