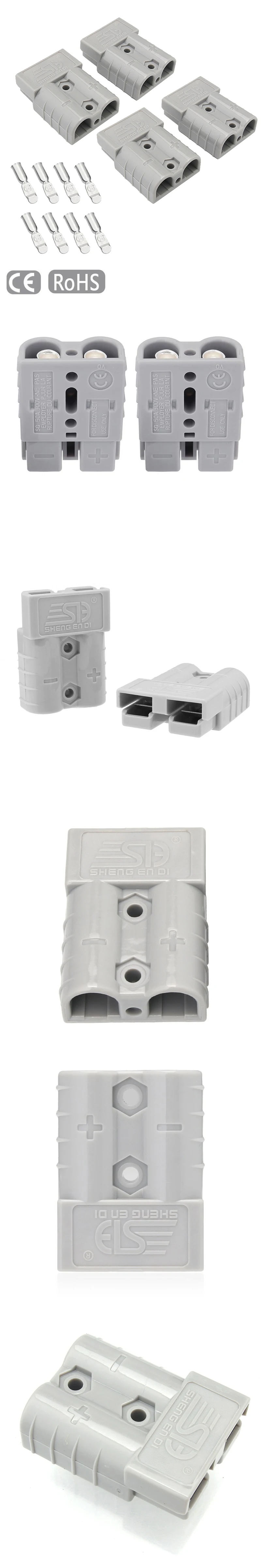

Connectors DC Power 50 AMP 12V-24V #6 AWG Solar Terminal Quick Disconnect Connect Anderson-power |

Connectors DC Power 50 AMP 12V-24V #6 AWG Solar Terminal Quick Disconnect Connect Anderson-power |

Features:

100% brand new and good quality.

Good material: the product is made from good materials, continuity is perfect, resistance to bad environment.

Exquisite workmanship: self-wipe makes the surface of thrusting needle clean, low contact resistance is reliable. The connector can be used in strong shock environment and with the function of fast acting in big electric current. The stainless steel shrapnel can ensures the constant contact stress and remedies intermittent overload in situation of frequent splice and interrupt.

Easy to use: Regardless of the plug or socket, inserting into the same color is a pair, easy and quick to splice and interrupt.

Application: it is suitable for electric vehicle, UPS communication power supply, electric machine, electric forklift, the power equipment, etc.

Specification:

Current Rating :50(Amperes)

Voltage Ratings :600(Volts)

Contact Barrel Wire Size : #6 (AWG),13.3(mm²)
Maximum Wire Insulation Diameter:0.44 (inches),11.2(mm)
AVG Contact Resistance:200(micro-ohms)
Insulation Withstanding Test Voltage:2200 (Volts AC/DC)
Contact Retention Force ：50(lbf)

Life
a. No load (Contact/Disconnect Cycles)To 10,000

b. Under Load (Hot Plug 250 cycles @ 120V)
Avg. Connection/Disconnect ：15(lbf)
Operating Temperature Range ：-20° to 105°C，-4° to 221°F
Flammability Rating of Housing Material：PC 945A，UL94 V-0
Contact material：Red Copper ，Silver plating

Package Include:

4 x Anderson Style Plugs

8 x #6AWG Terminals
