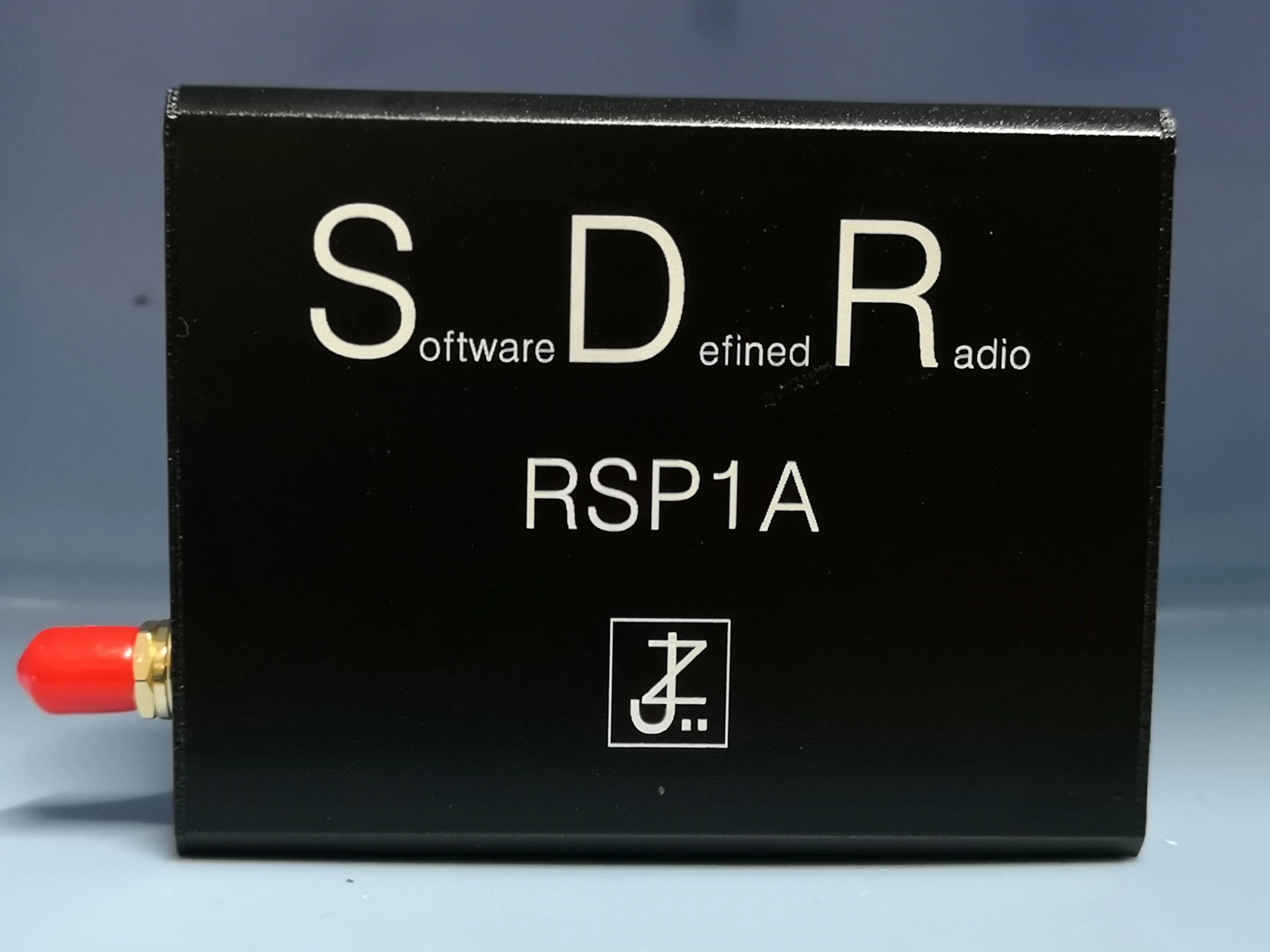

1kHz~2GHz 14bit SDR Receiver sdrplay rsp1A Software Defined Radio + antenna+ usb cable | Электроника





  Description：



● 1kHz–2000 MHz Continuous Coverage   ● 14-bit ADC Silicon Technology   ● Up to 10MhZ Visible Bandwidth   ● 11 High-Selectivity Built-in Front End Preselection Filters   ● Windows Linux Android  MAC & Raspberry Pi 3   ● Free World-Class SDRuno Software   An open API allows developers to create new demodulators or applications around the platform.   The RSP1A is also compatible with HDSDR, SDR-Console and Cubic SDR software packages   Used with the free Professional SDRUno SDR Software you can enjoy all modes of operation whilst monitoring up to 10 MHz of spectrum in real time. SDRUno software allows you to operate from 1 up to 4 independent virtual SDR Receivers within the selected 10MHz bandwidth of the SDRplay hardware. The actual number of Virtual SDR receivers is limited by the processing power of the PC in use.   Main additional features of the RSP1A compared to the original RSP1:   ADC resolution increased to 14-bit native for sample rates below 6 MHz, increasing to 16 bits with decimation   Enhanced RF pre-selection (greater filter selectivity plus 4 additional sub-bands compared to the original RSP1) for reduced levels of spurious responses   Improved LNA architecture with variable gain - the RSP1 had just a single gain step   Improved intermodulation performance   Performance extended to cover 1kHz to 2 GHz with a single antenna port   Bias-T facility   Improved frequency stability incorporating a 0.5ppm TCXO (software trimmable to 0.01ppm)   Selectable broadcast AM/FM/DAB notch filters   RF shielding within the robust plastic casing       Specification:         Low Current: 185mA (excl Bias T)   Connectivity   Single 50Ω RF Connector (SMA)   USB 2.0 (high speed) type B socket   Frequency Range   Continuous Coverage 1kHz - 2GHz   Frequency Tolerance: 0.5ppm (Max)   ADC Characteristics   Sample frequency: 2 - 10.66MSPS   14-bit native ADC (2 - 6..48MSPS)   12-bit (6.048 - 8.064MSPS)   10-bit (8.064 - 9.216MSPS)   8-bit (>9.216MSPS)   Bias T   Software selectable 4.7V @ 100mA   Reference   High stability 0.5PPM TCXO   In-field trimmable to 0.01PPM   Maximum recommended input power   0dBm continuous, 10dBm for short periods   Typical Noise Figures   18dB @ 2MHz   15dB @ 12MHz   15dB @ 25MHz   15dB @ 40MHz   3.3dB @ 100MHz   3.3dB @ 200MHz   7.7dB @ 386MHz   3.6dB @ 660MHz   5.0dB @ 1500MHz   6.3dB @ 1800MHz   IF Modes   Zero IF, All IF bandwidths   Low IF, IF bandwidths ≤ 1.536MHz   IF Bandwidths   200kHz   300kHz   600kHz   1.536MHz   5.0 MHz   6.0 MHz   7.0 MHz   8.0 MHz   Front End Filtering   Automatically configured   Low Pass   2MHz   Band Pass   2 - 12MHz   12 - 30MHz   30 - 60MHz   60 - 120MHz   120 - 150MHz   250 - 300MHz   300 - 380MHz   380 - 420MHz   420 - 1000MHz   High Pass   1000MHz   Notch Filters   FM Filter > 50dB 85 - 100MHz   MW Filter >30dB 660 - 1550kHz   DAB Filter >30dB 165 - 230MHz >3>30dB 660 - 1550kHz >30dB 660 - 1550kHz       Package content：   -1kHz~2GHz 14bit SDRplay device - SMA antenna -USB cable
