Camera Features:

Voice language of thermalscanner: Russian, French, Spanish, Italian, Portuguese, Turkish, Korean, Japanese, Indian languages, you can choose one of them.

Management  PC software & Menu language: English

High precision infrared temperature collector, non - contact automatic temperature detection, accurate and efficient.

Monocular liveness detection, face recognition distance of 0.3-1 meters (0.5m is the best), photos / video false-proof.  Fast face recognition speed < 300 ms. Built-in 8GB eMMC local storage, support 30000 face comparison database. The recognition accuracy rate is 99.7%

Faces are collected directly on the camera, without a face collector, you can also import mobile phone photos or computer photos, support batch upload

Temperature measurement range:30-45（℃）,Precision can reach ± 0.3℃

Real-time output of authentication results (pass or not pass) and voice broadcast (voice in multi languages)

Automatic identification of people not wearing masks and real-time warning.

This function can be disabled in settings if you do not want to use.

Abnormal temperature alarm: voice alarm ; trigger alarm output

When the camera detects a fevered person with high temperature data (you can set critical value), the camera will actively grab a picture and indicate abnormal temperature on screen and give alarm voice broadcast.

High fever alarm to prevent entry

Defatult ip address of thermal camera is 192.168.1.18 (you can modify it by ip tool)

Real-time live view 2MP video & image from PC management software

Face database mangement: you can add/delete/modify/import/export faces from software. Face information include: Face / ID / Name / Gender / Age / White list or black list / Phone number / Card number/ Expiry date(Accurate to the point of time, and automatically expires beyond the point of time)

Support staff time attendance record: All staff information such as ID/name/time/temperature/wear mask or not/event description can be recorded into system, and all the identify records can be backup into PC in Excel files.

Support stranger visitor record export into excel, include ID, name, time, temperature, wear a mak or not, snap

Support access control software parameter configuration (default settings suggested)

All-weather 24/7 identification, with large light flux lens and intelligent white LED fill light, can also be identified in direct sunlight and dark environment.

Support relay output & wiegand output

We can provide HTTP protocol for your second-development, you can integrate this device into your own system, such as door access control , entrance gate or other devices.

Camera can record all the face recognition records & temperature information and export in Excel file, easy to manage your company staff attendance.

2 million pixels, wide dynamic low illumination CMOS, image resolution 1920 (H) * 1080 (V), frame rate up to 30 frames per second

We will send wall mount bracket by default. If you do not want wall mount bracket, you can choose turnstile bracket and leave me a message in your order. You can only take one of the two.

Adopt 304 brushed stainless steel material on the body, high-end & beautiful, IP66 waterproof

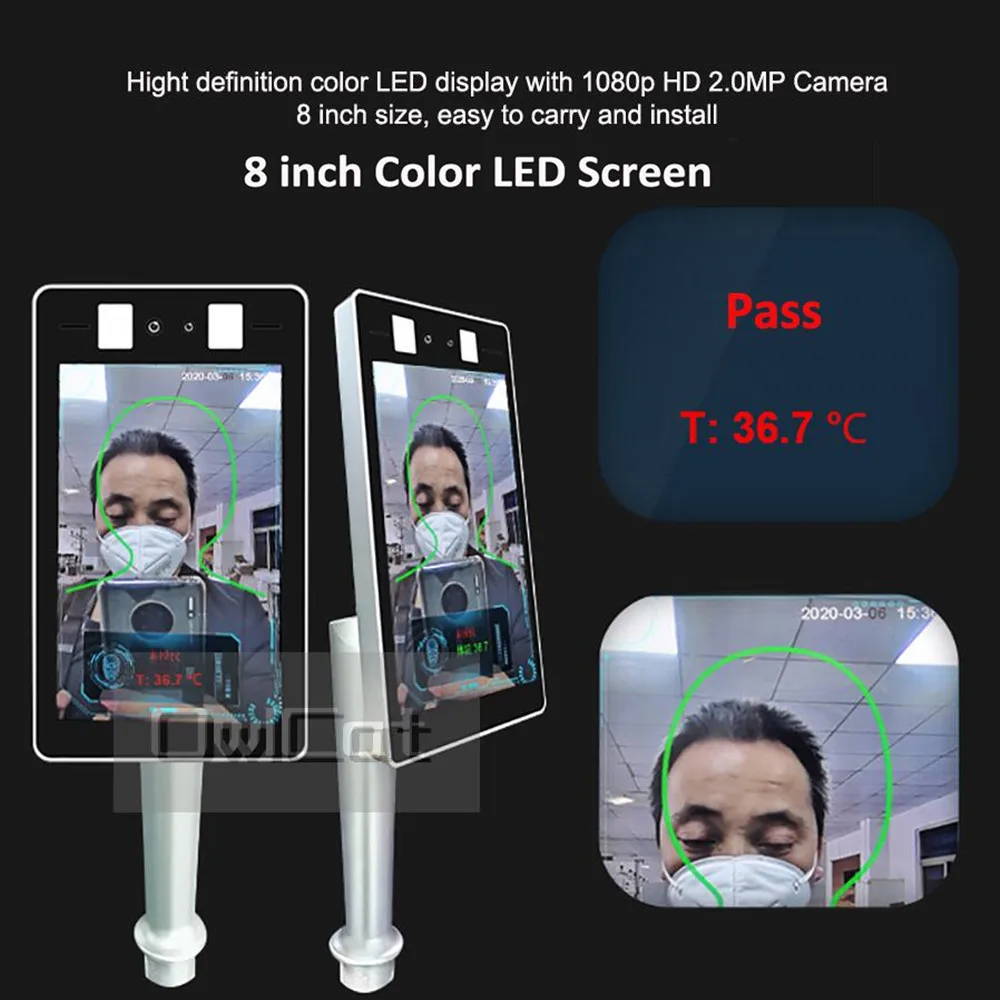

Built with 8 inch smart color led screen display, easy to carry and install

Camera Packing List:

1 x Temperature Detector Camera

1 x Wall mount bracket with screws by default ( turnstile support is an option, you can choose one of the two and leave message to us)

1 x DC12V2A power adapter ( EU /US /AU/ UK plug is available)

1 x Disk of sofware and manual

Thermo Camera Overall:

8 inch 2MP temperature measurement face recognition intelligent panel machine series products, using LED display screen, embedded deep learning face recognition algorithm, integrated high-precision thermal imaging temperature measurement chip, ISP image processing and other technologies in one AI intelligent access control products. This product has powerful functions such as face detection, mask detection, face recognition comparison, body temperature detection, and living body judgment. It can accurately capture personnel information (such as facial information, identity information, whether or not to wear a mask, etc.) through the field of view of the camera, as well as body surface temperature.It can effectively help users manage the access authority and temperature status of the detector, and help prevent epidemics.The user manages the access authority offline by loading the face library to all devices. Can also be used with attendance software to achieve employee attendance management. It can be widely used in community access control, barrier gates, school square entrances, and office buildings.  it is an embedded system, it does not support ios android version. We can provide HTTP protocol to integrate it into your own software if your system support.

Device Functions:

Device Real Photo:

Parameters:

Model number

1080P HD Face Recognition+ Temperature Measurement

FRC-8T

Display

8 inch Color LED

Thermal Camera

Sensor

Thermal imaging infrared temperature sensor

Temperature Measurement

Temp range:  30°c - 45°c

Accuracy: ± 0.3°c

Detect Distance

0.4M – 0.7M (0.5M best)

Visible light parameters

Lens

2.8mm ; View angle: 89°

Min. illumination

0.005 Lux @ F1.2 Color

Dynamic Range

≥ 120db

Noise ratio

≥ 46db (AGC OFF)

Exposure mode

Program mode (customizable shutter interval), shutter mode (1/5-1 / 20,000s), support for slow shutter

White balance

Auto, indoor, outdoor, sodium lamp mode, manual

Digital noise reduction

Support DNR, 3DNR

Day & Night mode

Fill light at night,

Fixed Color mode

Video compression

H.265 Main Profile / H.264 High profile / M-JPEG

Maximum resolution

1920 x 1080 @30FPS

Main stream

1920x1080, 1280x960, 1280x720, 720x576

Substream

640x480, 352x288, 320x240, 176x144

MJPEG

1920x1080, 1280x720 ,close

Output bit rate

Fixed code stream (CBR) or variable code rate (VBR), code stream can be set from 32Kbps to 10Mbps

Audio compression

G711, PCM

Character overlay

Support channel name, date and time superposition, adjustable superposition position

Temperature measurement function

Support live real-time forhead temperature measurement, abnormal temperature alarm

AI

Number of face bases

Max. 30,000 faces

Recognition speed

Less than 300ms

Faces import

Single image, batch image, real-time snapshot image import

Live detect

Support

Mask detect

Support

Voice broadcast

Support high fever temperature alarm

Person Type

Blacklist, whitelist, temporary users

Local storage

Built-in 8GB

Records export

Support export all records in excel file

Protocol support

ONVIF, TCP / IP, HTTP, FTP, 485, GB28181, Wiegand, DNS, NTP

Hardware Interface

Power interface

DC12V

Network interface

1 x RJ45 10/100 base T Ethernet interface

Wiegand

1 x Wiegand interface

Switch interface

1 x Relay interface

Audio

Built-in speaker

General Specification

Operating temperature

-10°C～＋60°C

Working humidity

0%－90%

Power consumption

5W

Weight

Less than 1KG

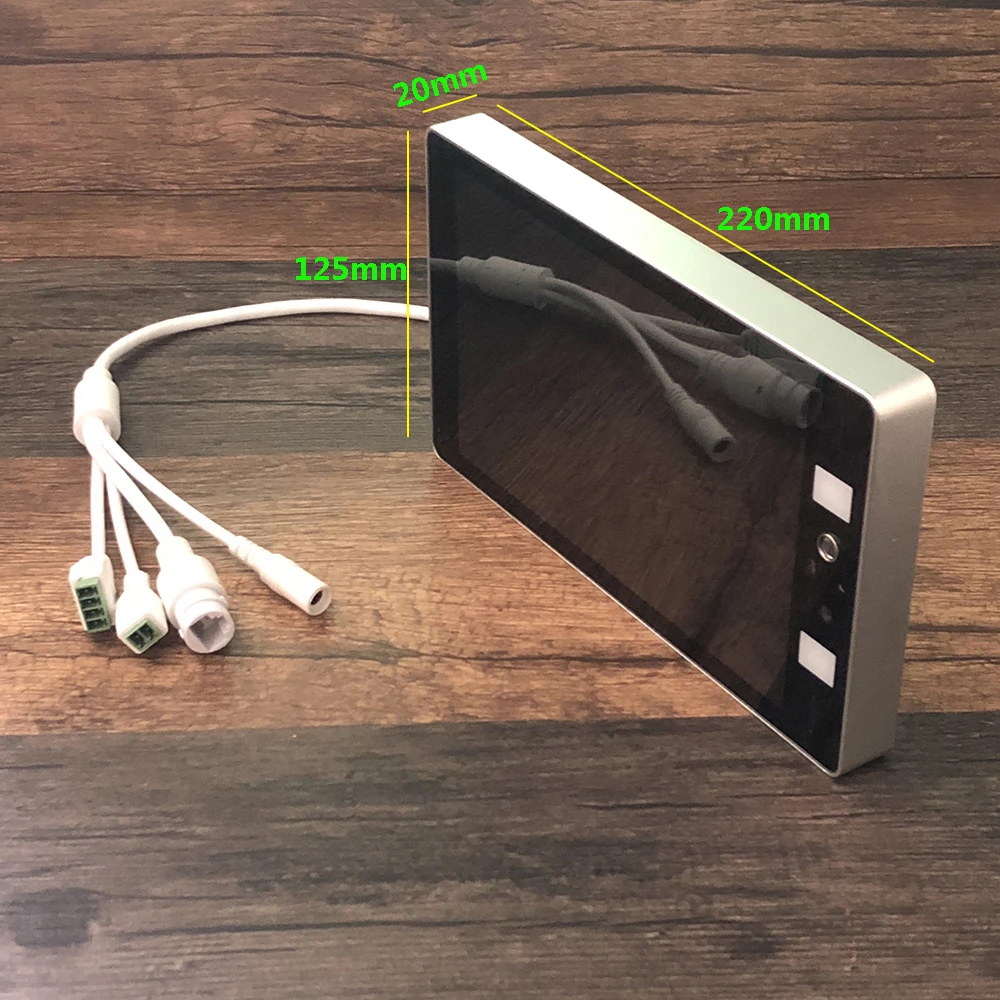

Dimension

220x125x20mm

PC management software

Include

Interface number

Pin

Interface name

Function

1(Power interface)

/

Power

12VDC

2(Network Interface)

/

Ethernet

RJ45 Network

3(Relay interface)

+

Alarm-NO

NO port

-

Alarm-NO

COM port

4(Wiegand interface)

1

VCC

 12VDC

2

Wiegand_D1

Wiegand protocol data port D1

3

Wiegand_D0

Wiegand protocol data port D0

4

GND

Ground

PC IP address Search Tool:

PC Access Control Software:
