(Video, Mobile Phone Customer Contact Customer Service to Watch Video Address)

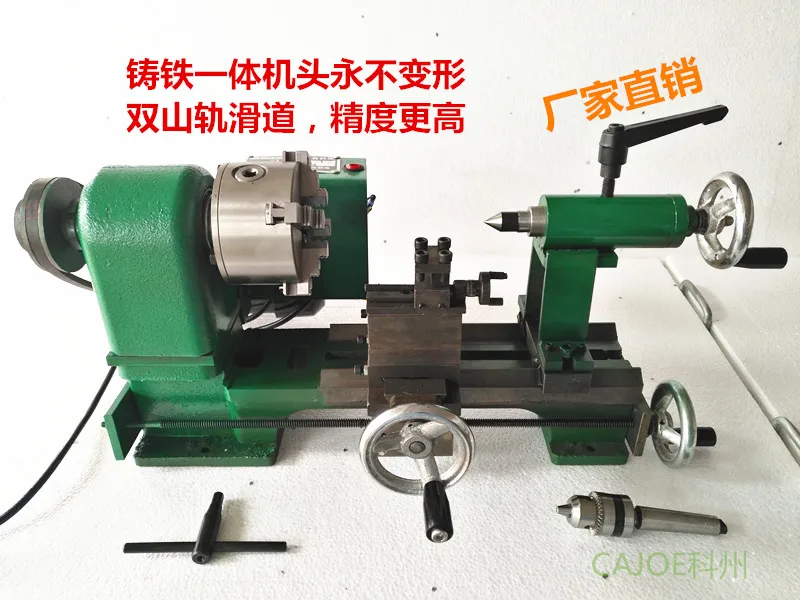

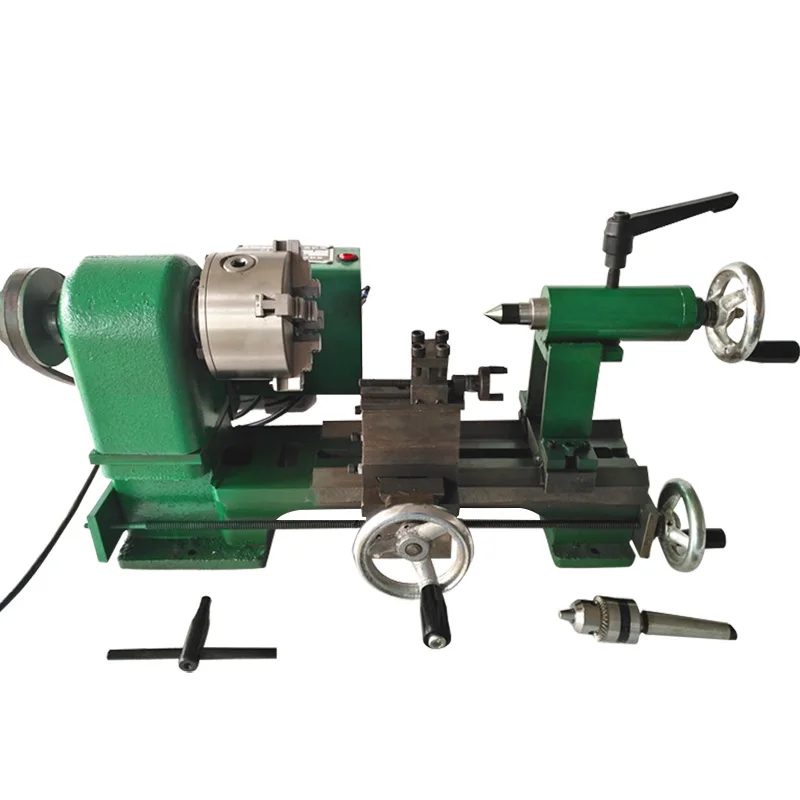

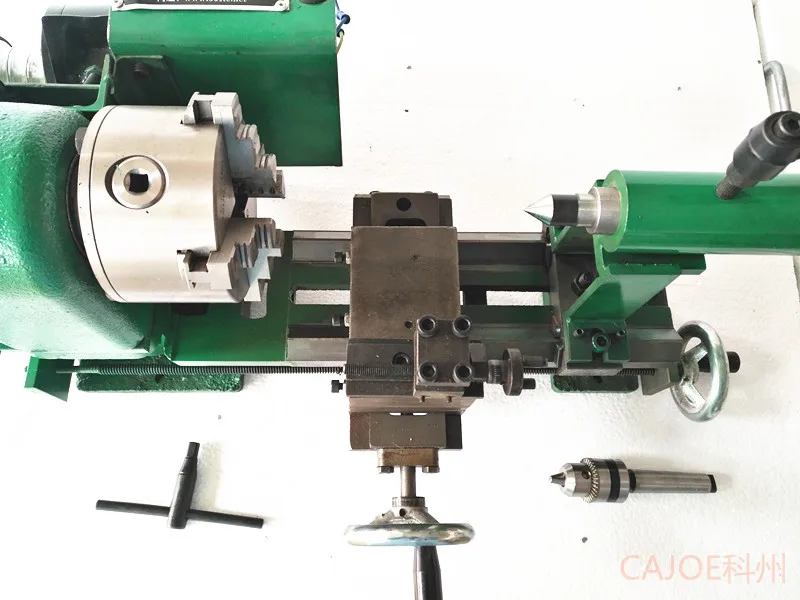

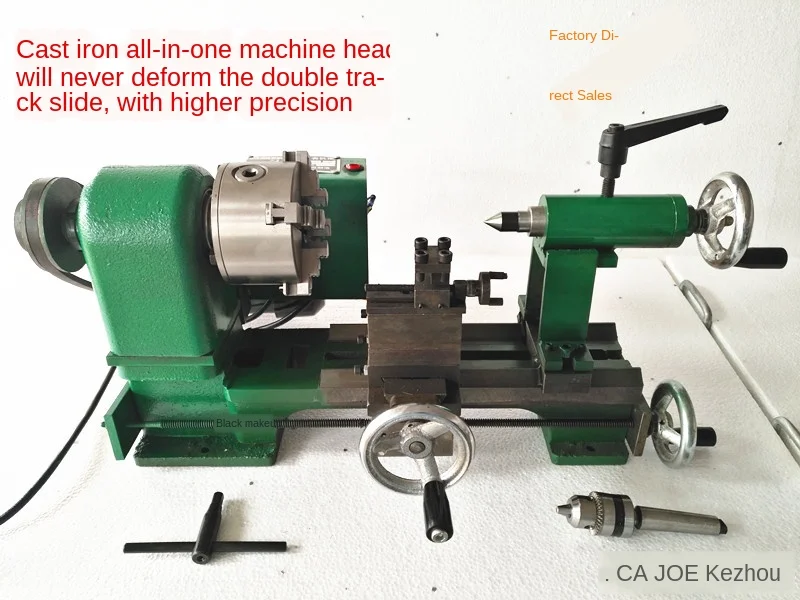

Parameters of Micro Metal Lathe:

1) The Bed Is 56cm Long, 40cm Wide, 28cm High and 41kg in Weight.

2) Use Double-Track Guide Rail, Matching Mountain Rail Slider,

3) Two Apex Distance 160mm. The Spindle with 80mm(100) Chuck Flange.

4) Tray Stroke 190mm, Carriage Stroke 80, the Rotatable Tool Holder Trays Stroke 50mm.The Taper of the Tail Top Is Morse No. 2,

Stroke 40mm.(Note: If You Have a Customer Who Require a Higher Range of Processing, Please Contact Customer Service Custom Machine)

5) the Motor Uses a Large Torque Silent Induction Motor (Single-Phase Electric 220V) with a Power of 350W and a Speed Regulation of Level 5.

(Note: 1cm = 1cm = 1CM)

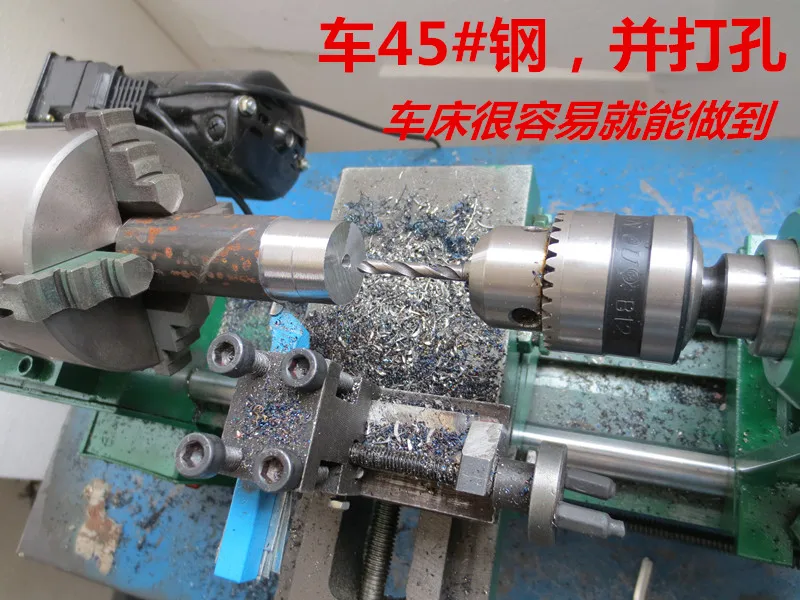

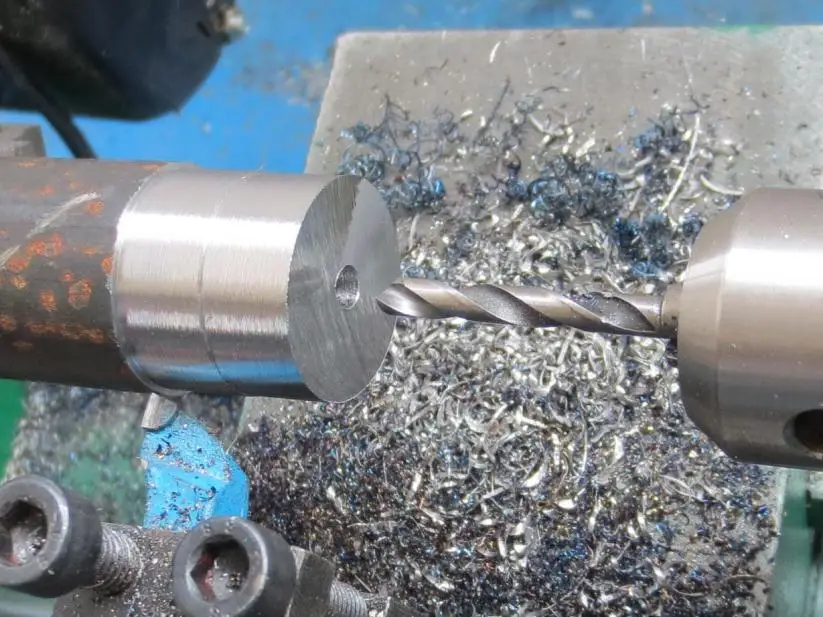

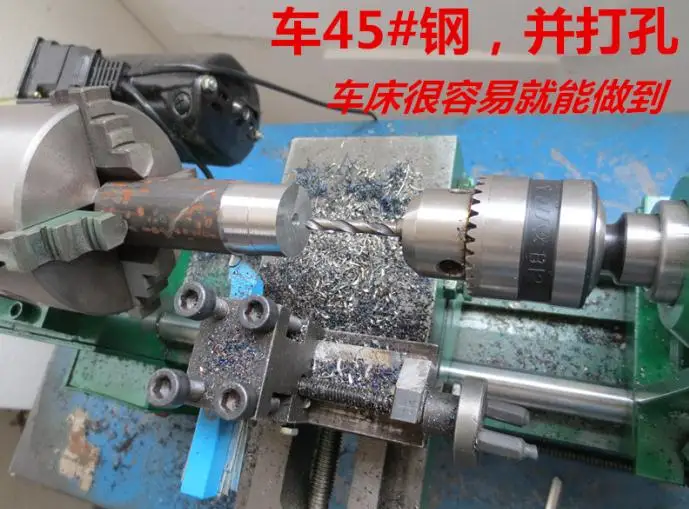

10 Seconds to Understand the Processing Process:http://www.tudou.com/programs/view/oa_As20M7dA/

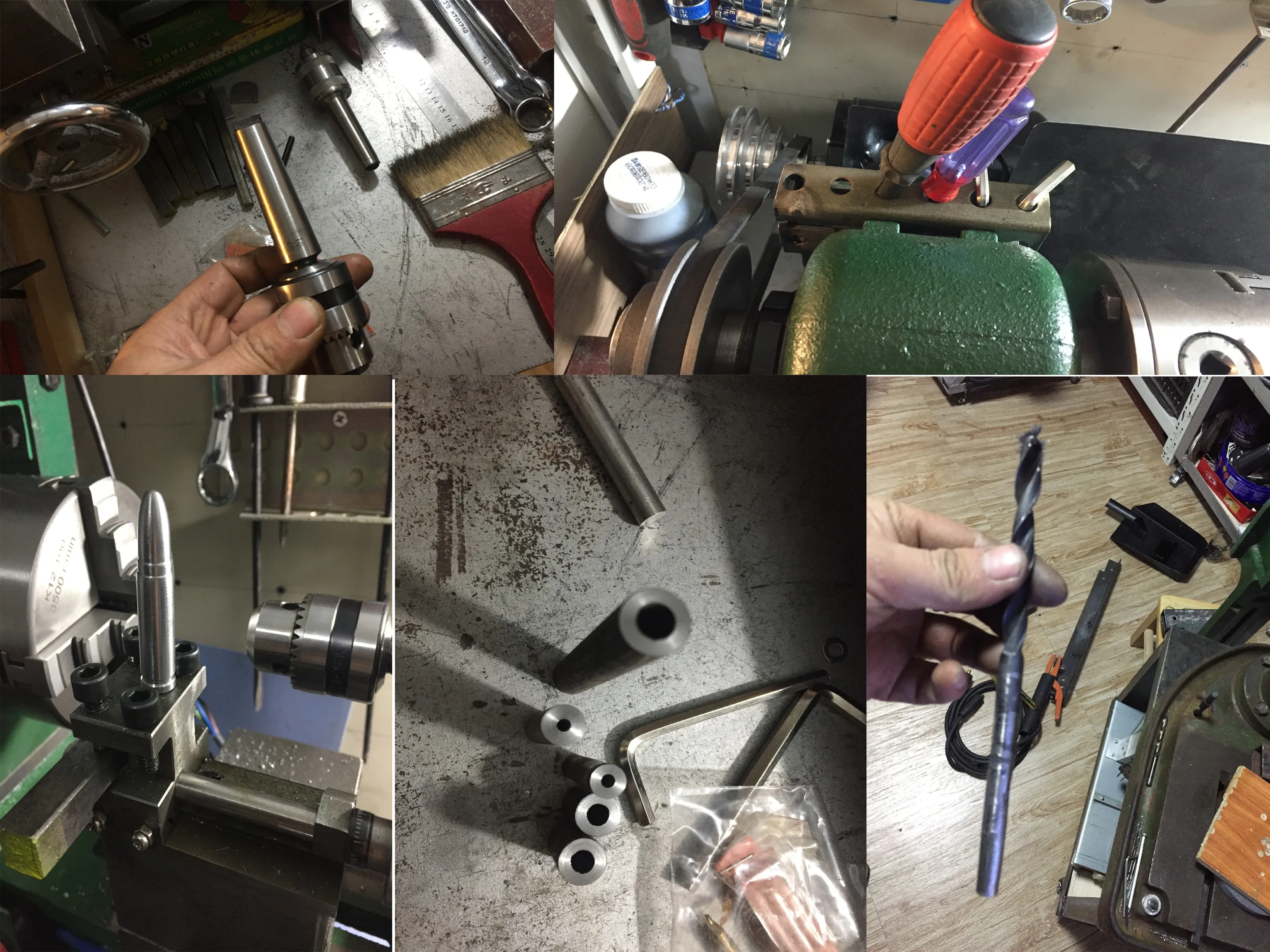

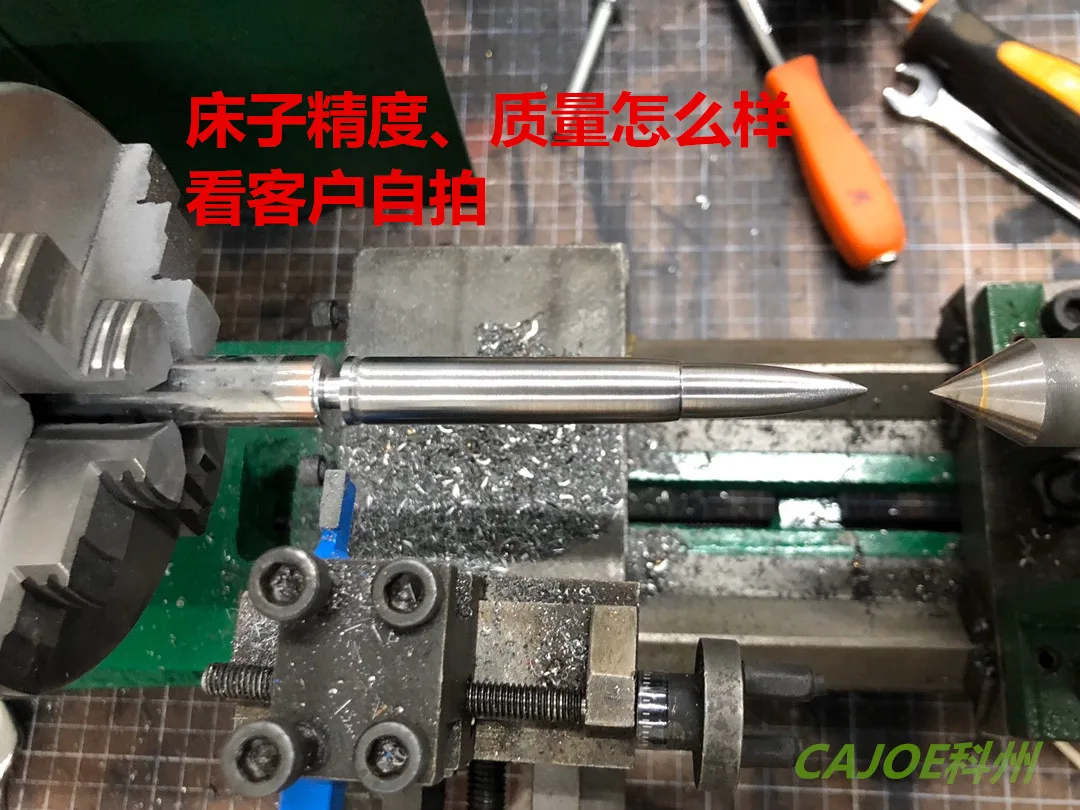

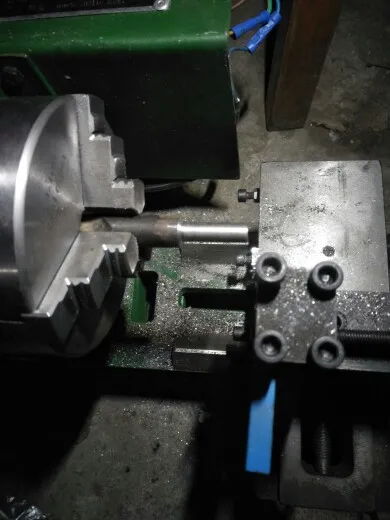

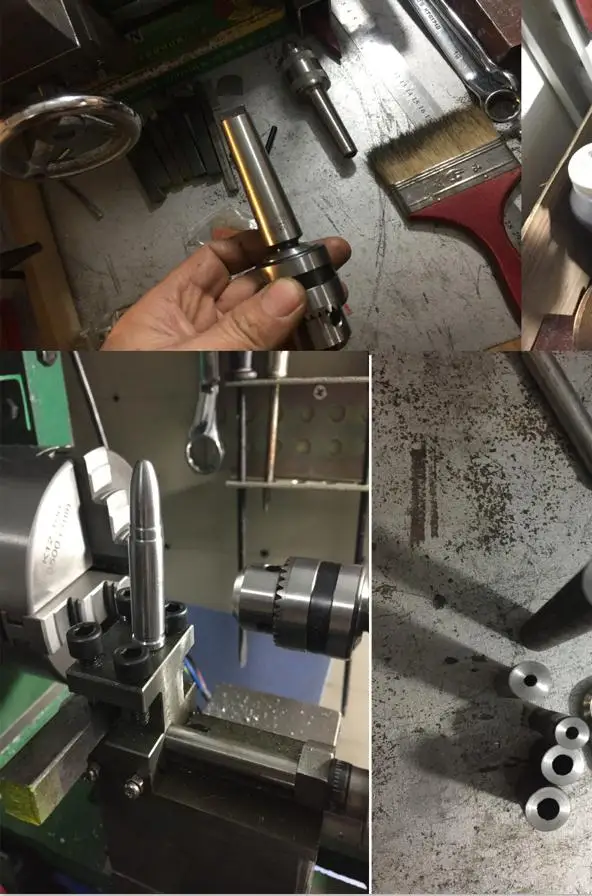

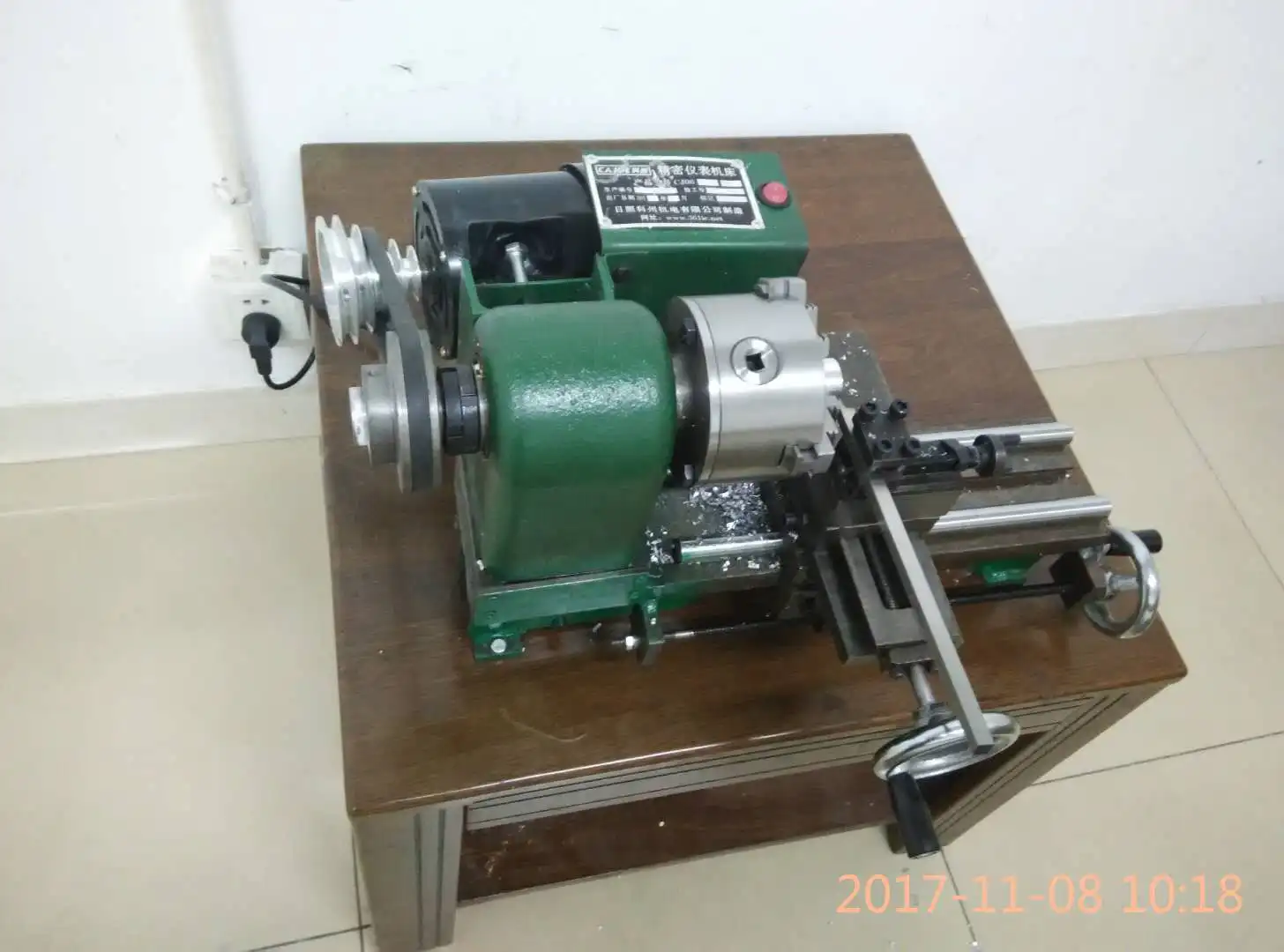

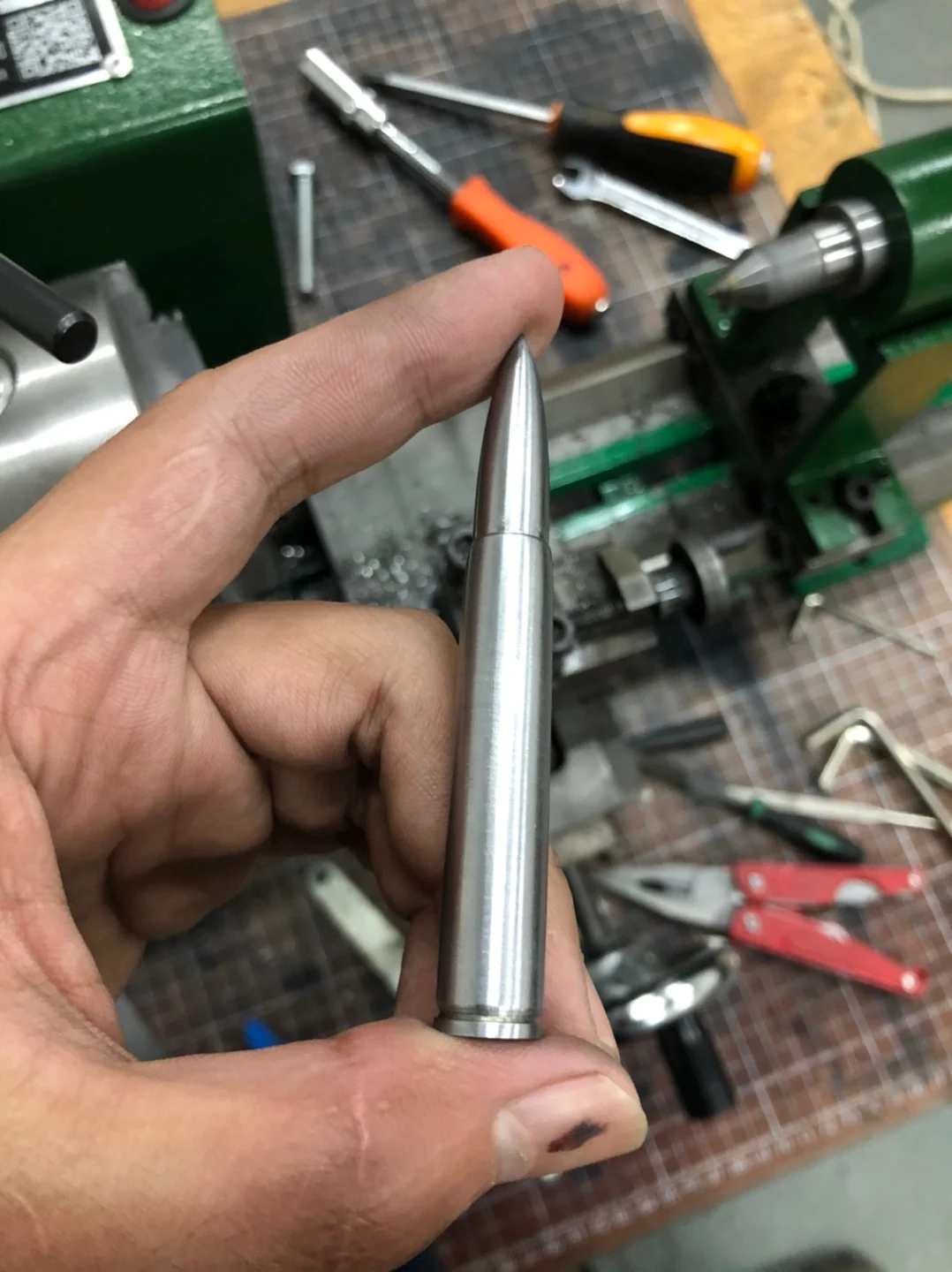

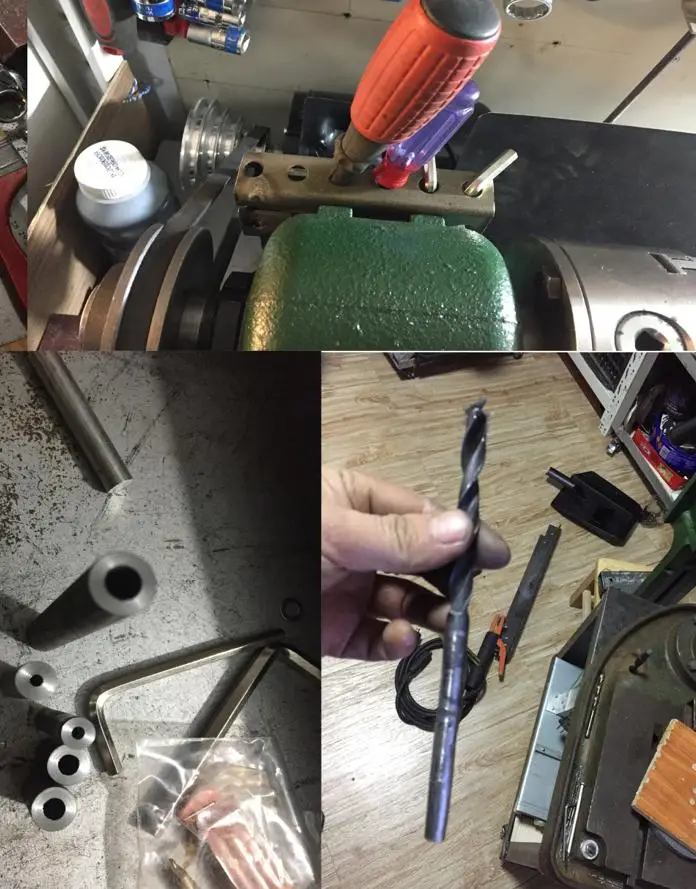

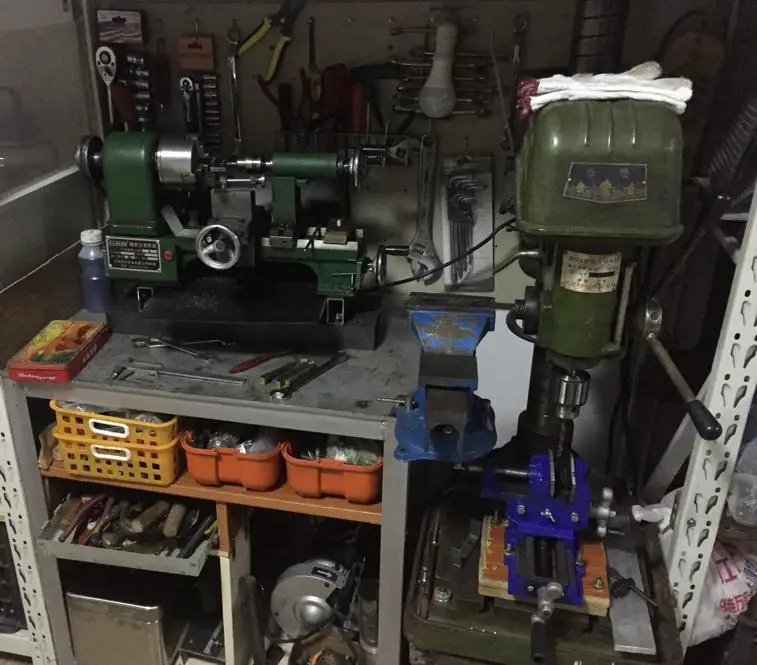

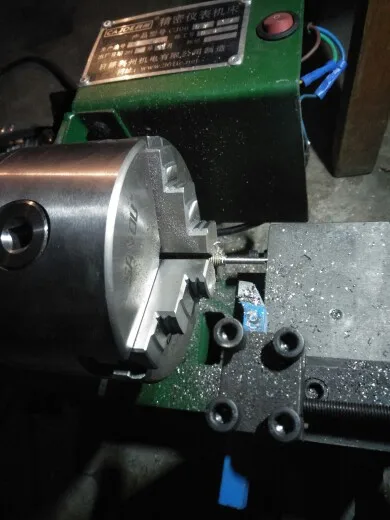

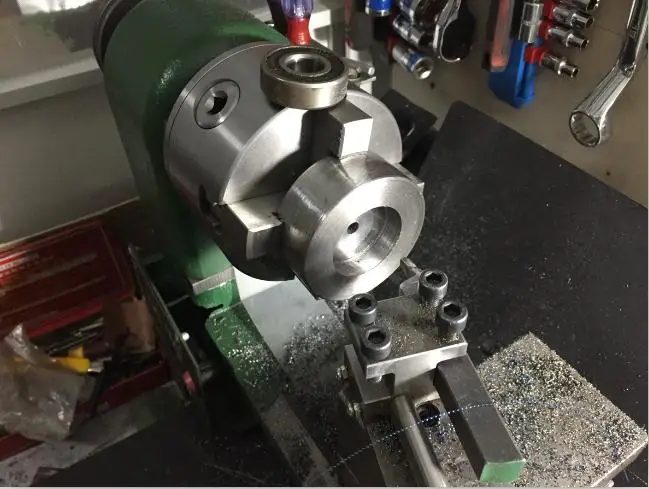

Customer zi pai tu (Evaluation More):

Main Shaft Speedometer:

 Warranty:

Acknowledgement and Intellectual Property Description:

This Lathe Was Originally Designed by a Senior Fitter and Published in the Forum. after Research, Our Technicians Solved the Existing Precision Technical Problems,

Then Meet the Needs of Netizens for Mini Lathes.

Upgrade of the Place, but Is Not Limited:1) Change the Optical Axis to Dovetail Rail. 2) Main Shaft Upgrade of Our PatentFlangeSpindle (0.01mm)

. As a Result We Publish Sample Design of DIY Master Thank,

and Declare That This Lathe Is the Patented Product of Our Company.

Machine Based on Customer Feedback on a Regular Basis, You Want to Upgrade Ossutil to the Latest, the Machine Structure and Video in the Individual Parts May Not Be Exactly the Same,

However, the Performance and Precision of the Delivery Machine Are Definitely Higher than Those of the Old Machines in the Video.
