The first chapter Product Introduction
\\
A. Overview
\\
MB10TD 10RoadDS18B20Temperature acquisition module,Capture10The way the United StatesDallasSemiconductor temperature sensorDS18B20,The temperature sensor with high precision、There is a good agreement;Module on the collected signal data,ThroughRS485Interface output;ModuleModbus-RTUCommunication,Can be adapted toPLC、Human-computer screen、DCSAs well as a variety of configuration software, etc。
\\
Module to update in real time the sensor on-line state,By means of a corresponding register state query,Real-time monitoring of the external10RoadDS18B20Sensor of on-line condition。
\\
Can be used for the cold storage temperature data acquisition、Vegetable greenhouses、Animal Breeding、Industrial environmental monitoring、Granary temperature monitoring、Egg incubation、Medicine refrigerated various ambient temperature data acquisition and control, and so on。
\\
II. The characteristics
\\
1. High-speed parallel acquisition temperature sensorDS18B20、For temperature monitoring and good real-time performance。
\\
2. Real-time monitoring sensing sensorDS18B20The online status,Making it easy for users to on-site problem,And locate fault location。
\\
3. 5-Bit digital tube display),The rotation of each channel of the real-time temperature value,Convenient on-site real-time temperature。
\\
4. Using a standardModbus-RTUProtocol,Can be adapted toPLC、Human-computer screen、DCSAs well as a variety of configuration software, etc。
\\
5. Communication protection:Isolation ofRS485Communication,Signal output interfaces take over-voltage and over-current-protection。
\\
6. Power supply polarity protection。
\\
Three. Technical indicators
\\\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \
\Project
\ \Parameter
\ \Temperature and humidity signal input
\ \1.Input Channel:10A channel temperature sensor signal acquisition

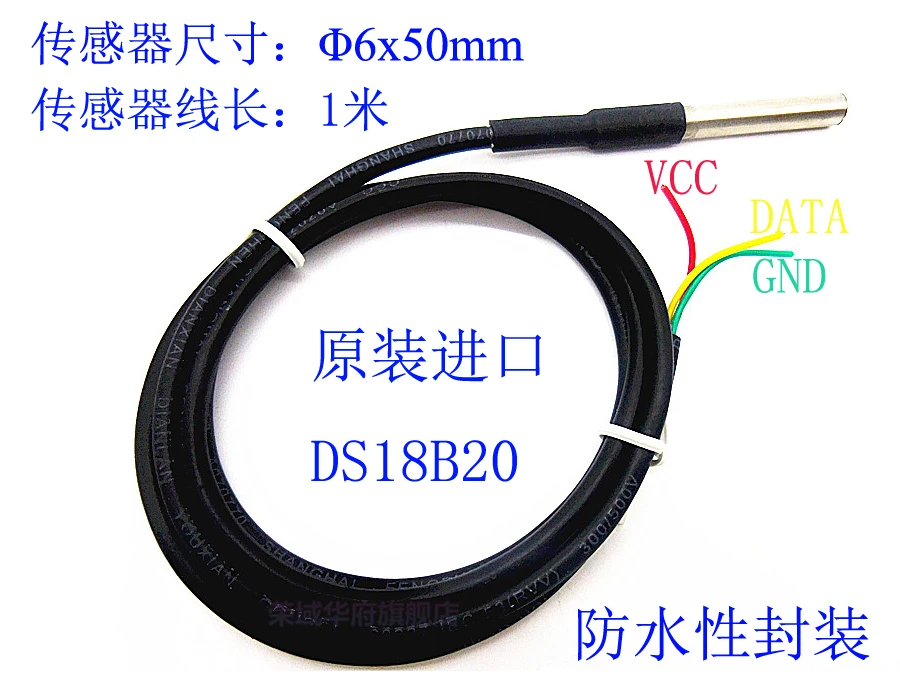

\\2.Sensor Type:DS18B20(The United StatesDallasSemiconductor)
\\3.Sampling rate:Each4mS On10A channel in parallel at the same time the collected。
\\4.Measurement range:-55~125℃(Depending on the external sensor package of)
\\5.Resolution: 0.1℃ (12-Bit accuracy)
\\6.Transmission distance:>= 100M
\ \Display
\ \1. In the left-side navigation pane in the first green digital display channel number
\\2. Right four-digit red LED display temperature,A decimal point。
\ \RS485
\\Communication output
\ \1.The communication protocol:MODBUS-RTU
\\2.Interface Type:Electrical isolationRS485Communication,Output interfaces take over-voltage and over-current-protection
\\3.The baud rate:1200、2400、4800、9600、19200、38400、57600、115200bps
\\4.Check bits:No calibration、Even parity、Odd parity
\\5.Set up in a way that:The address of the module、The baud rate、Check bits can be set by software
\\6.The communication distance:@9600bps 1200M
\\7. RS485Communication circuit andCPUIsolation voltage protection:1500V
\ \Module size
\ \65mm*46mm*28.3mm
\ \Installation methods
\ \StandardDINRail-mounted(35mmThe guide rail)
\ \Working environment
\ \Temperature:-10 ~ +55℃ Humidity:35~85%(Non-condensing)
\ \Power supply
\ \1.Power supply voltage:10V~30VA wide range of power supply,With power polarity protection
\\2.Power consumption:Less1.5W
\\\
\\

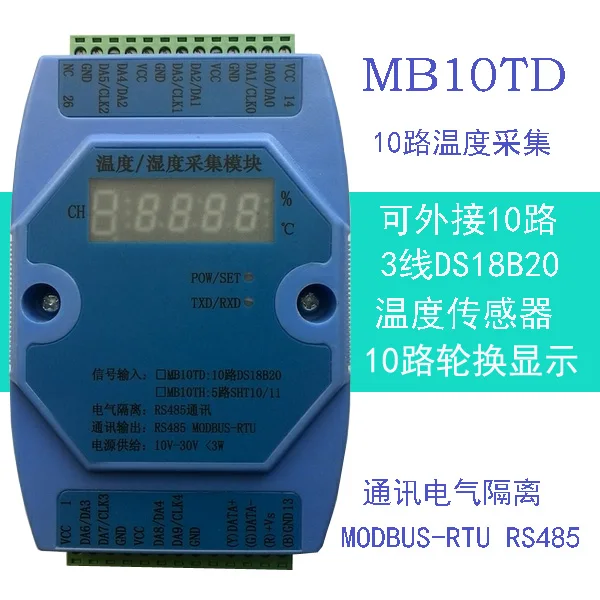

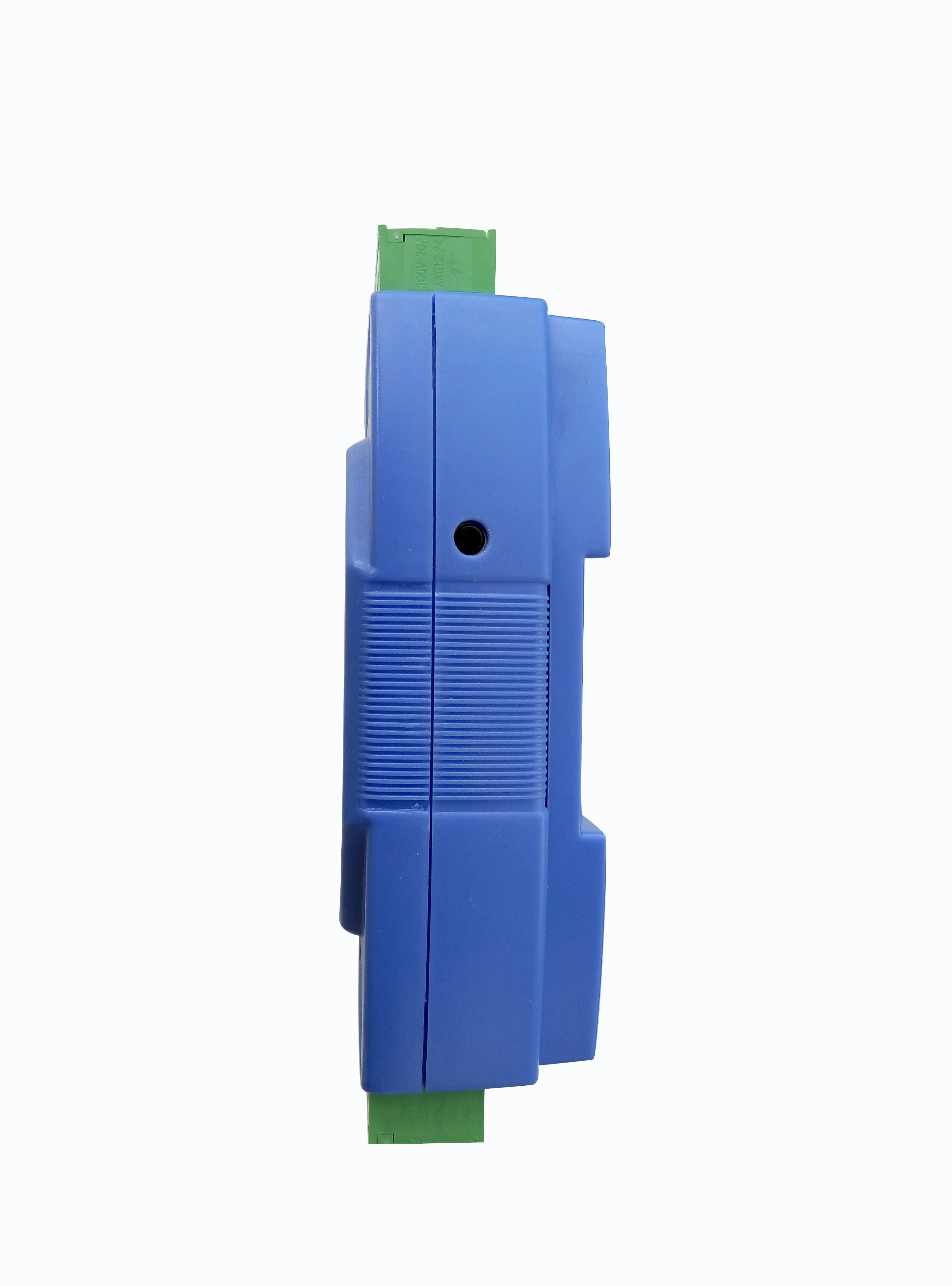

Four. The appearance of the product
\\
\\
Five. Module lights and switches that are functional description
\\
1. POW/SET; Module working status indicator
\\
A.The green light:Module in operation。 B.The red light:Module configuration parameters have been written,Need to re-power-up。
\\
2. TXD/RXD: Communication status indication
\\
A.The green light shining:Communications received data B. Red light shining:Module is transmitting data
\\
C.Green solid:DATA+AndDATA-On the communicationRS485Line reversed or wiring have disconnection。
\\
3. The inside-of-module the upper-left corner of the reset switch
\\
A. When the communication parameter(The address of the module、The baud rate、Check bits)Don't know or communication parameters misspecification,Can't Module communication networking,The way out of this problem is the communication parameter reset;We use the clip hold the reset switch does not let go,5Seconds later Module[POW/SET]The red indicator light,Let go of the reset switch,In this case, the communication parameter has been reset,As long as the module of power after restart,The module of the communication parameters has been reset。
\\
B. After a reset of the communication parameters:Address:1、The baud rate:9600bps、Check bits:No。
\\
4. Digital Tube Display Description
\\
\\
Six. Typical application diagram
\\
\\
Seven. The terminal definition
\\\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \
\Terminal
\ \Name
\ \Description
\ \\ \
Terminal
\ \Name
\ \Description
\ \1
\ \VCC
\ \DS18B20 Power supply+
\ \26
\ \NC
\ \Empty
\ \2
\ \DA6
\ \DS18B20 Signal6
\ \25
\ \GND
\ \DS18B20 The power ground
\ \3
\ \DA7
\ \DS18B20 Signal7
\ \24
\ \DA5
\ \DS18B20 Signal5
\ \4
\ \GND
\ \DS18B20 The power ground
\ \23
\ \DA4
\ \DS18B20 Signal4
\ \5
\ \VCC
\ \DS18B20 Power supply+
\ \22
\ \VCC
\ \DS18B20 Power supply+
\ \6
\ \DA8
\ \DS18B20 Signal8
\ \21
\ \GND
\ \DS18B20 The power ground
\ \7
\ \DA9
\ \DS18B20 Signal9
\ \20
\ \DA3
\ \DS18B20 Signal3
\ \8
\ \GND
\ \DS18B20 The power ground
\ \19
\ \DA2
\ \DS18B20 Signal2
\ \9
\ \\ \
\ \
18
\ \VCC
\ \DS18B20 Power supply+
\ \10
\ \DATA+
\ \RS485 ACommunication+
\ \17
\ \GND
\ \DS18B20 The power ground
\ \11
\ \DATA-
\ \RS485 BCommunication-
\ \\ \
16
\ \DA1
\ \DS18B20 Signal1
\ \12
\ \+Vs
\ \Power Input+
\ \\ \
15
\ \DA0
\ \DS18B20 Signal0
\ \13
\ \GND
\ \Power Input-
\ \\ \
14
\ \VCC
\ \DS18B20 Power supply+
\\\
Eight. The principle block diagram
\\
\\
The second chapter ModbusRegister and communication protocol specification
\\
A. Module supportsMODBUSFunction Code and address range
\\\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \
\Register type
\ \The address range
\ \Function Code
\ \Function Code description
\ \To drive into the amount of register
\ \10001-10010
\ \0x02H
\ \Read one or more drive into the amount of register
\ \The input register
\ \30001-30010
\ \0x04H
\ \Read one or more input register
