body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } 100% brand new and high quality.
High compatibility brings a higher experience.
The rear is equipped with four USB3.0 / Gigabit network cards, enhanced front and rear, 4 + 2 USB3.0 interface design, high-speed connection RTL8111F Gigabit network card, dual indicator lights, stable and fast.
DDR3 dual-channel memory supports common memory and ECC server memory and cannot be mixed at the same time.
NVME PCIE X4 channel, M.2 high-speed hard disk, 2280 theoretical bandwidth up to 4GB / s, can be set to jumper to support NGFF interface SATA channel M.2 hard disk.
Motherboard chip: integrated chip sound card / network card
Main chipset I ntel X99
Network card chip integrated RTL8111H Gigabit network card
Audio chip integrated 6-channel audio chip
Processor specifications: CPU platform In tel
CPU socket LGA 2011
Support 1 CPU
Memory specifications: memory type DDR3 1866/1600 / 1333MHz
Memory slot 2 x DDR3 DIMM
Expansion slot: PCI-E slot 1 x PCI-E X16 image slot
PCI-E slot 1x PCI-E X1
2x USB3.0 pins (1 set)
2x USB2.0 pins (1 set)
1XCMOS interface
4xSATA3.0 interface
1xNVME M.2 interface (with convertible SATA jumper)

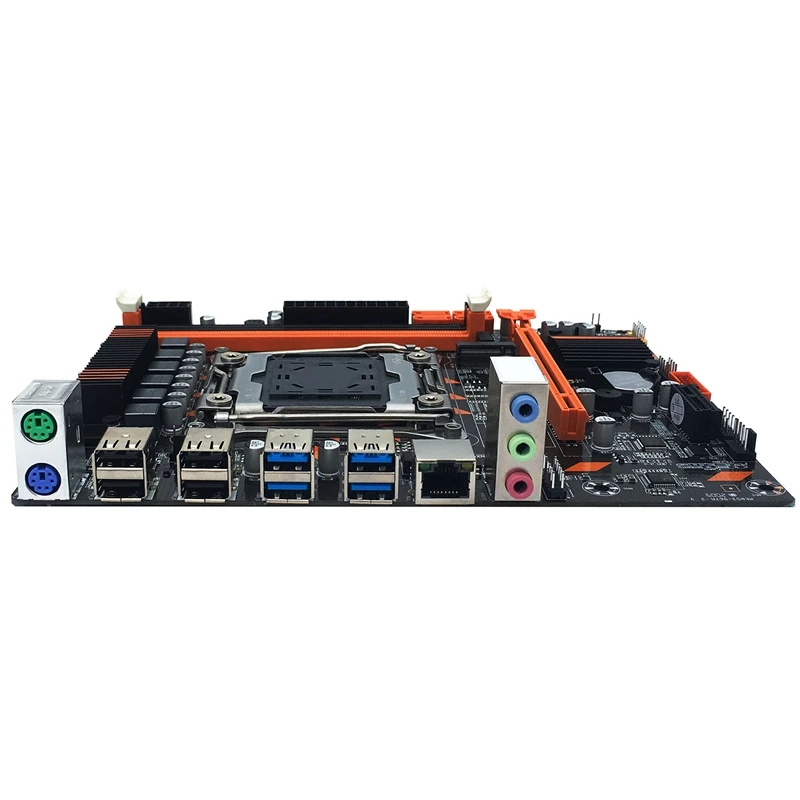

I / O interface: PS / 2 interface PS / 2 keyboard and mouse universal interface
1 x RJ45 network interface (Gigabit network card)
4xUSB 3.0 interface
4xUSB 2.0 interface
audio port
Other parameters: an 8-pin power socket and a 24-pin power interface

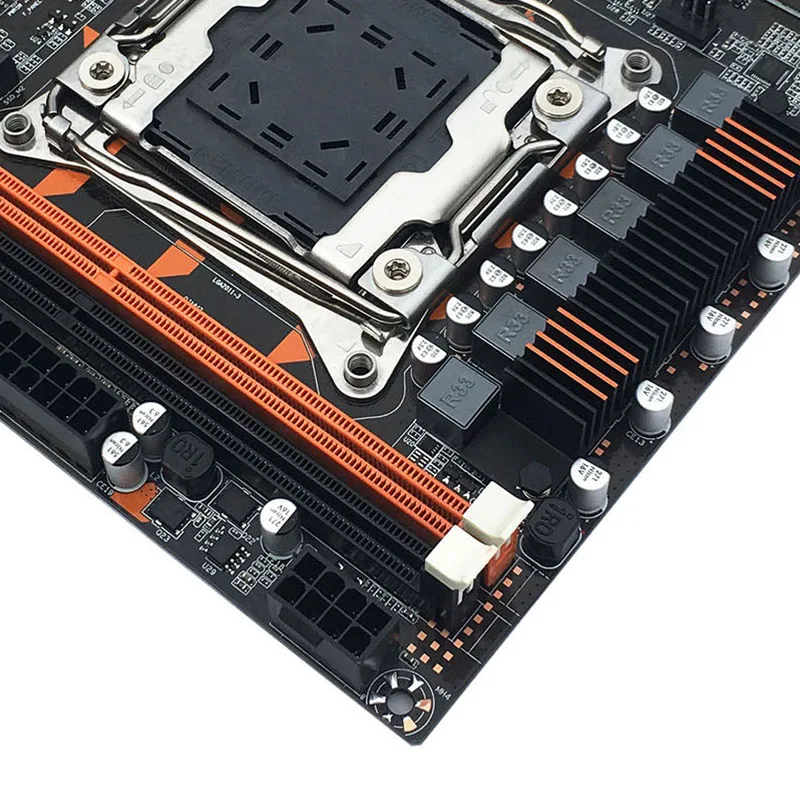

6-phase power supply mode
Colour:Black
Material:Metal + plastic
Size:21.4*16.8cm
Package Contents:
1 * Motherboard
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
