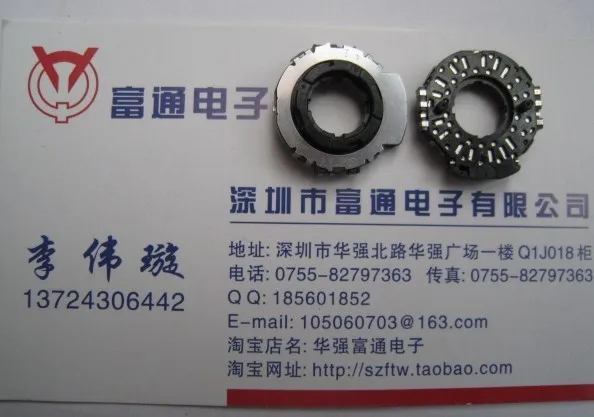

Original Japan ALPS the stereo coding switch with hollow shaft encoder SRGP400100 patch | Обустройство дома

We are a professional dealer of electronic components with over 10 years of sales experience in China. Our products include IC, resistors, inductors, switches, crystal oscillators, connectors, sensors, relays, demo boards, modules, LED, fuses, etc. We have a wide range of products which might be unable to be fully covered by AliExpress. If you didn’t find the products you need, please contact us by E-mail. We will give you the most favorable price. If you are satisfied with the transaction with us, please rate us with 5 stars and add us to your favorite stores for searching next time. In case you are not satisfied with our service, please contact us so that we can make better improvements.

Product number SRGP400100
Locate the torque 2 + 1 mn m. Location number 24 Pulse number 12 Welding method Reflow Bad unit minimum order (PCS) 1600
Using the temperature range To 40 ° to + 85 ° The maximum rated/minimum rated load (resistance) 10 ma 5 v DC / 50 mu A 3 v DC electrical The output voltage 1 ma 5 v DC resistance (load) when below 1 v
Insulation resistance 100 m Ω min. 100 v DC Withstand voltage 100 v AC for 1 minute Mechanical properties of Switch Angle 20 ° Intensity of operation Qin according to direction 20 n Pull the direction 20 n Vibration resistance Ten to 55 to 10 hz/points, the amplitude of 1.5 mm, X.Y.Z 3 direction every 2 hours Welding heat resistance Manual welding 350 + 5 °, 3 s Max. Reflow soldering Refer to soldering the conditions The durable performance load 50000 cycles There is no load 50000 cycles Environmental performance Cold resistant performance - 40 plus or minus 2 ° for 96 h Heat resistant performance 85 + 2 ° for 96 h Moisture resistant to 40 to 90 to + 2 °, 95% RH for 96 h

Our store has the entity shop, business license and tax registration.All products are material object, guaranteed quality and credibility, to provide a large number of domestic imports various models.Potentiometer series: carbon film type, wire wound, Spain, precision adjustable resistance, conductive plastic, more laps, single, double, disc pull belt wheel is adjustable, and so on.Switch series: coding switch, band switch, rotate/Light switch, light touch switch, button switch, detection switch, pull code switch, micro switch.Encoder, knobs, such as light-emitting diodes (leds)!!!!!Import products: JapanALPS,TOCOSAnd the U.S.BOURNSTaiwan,ALPHA, Japan panasonic and other brand).This shop in addition to their own products, also provides other electronic components form a complete set of accessories!Welcome to inquire!
