Product introduction:

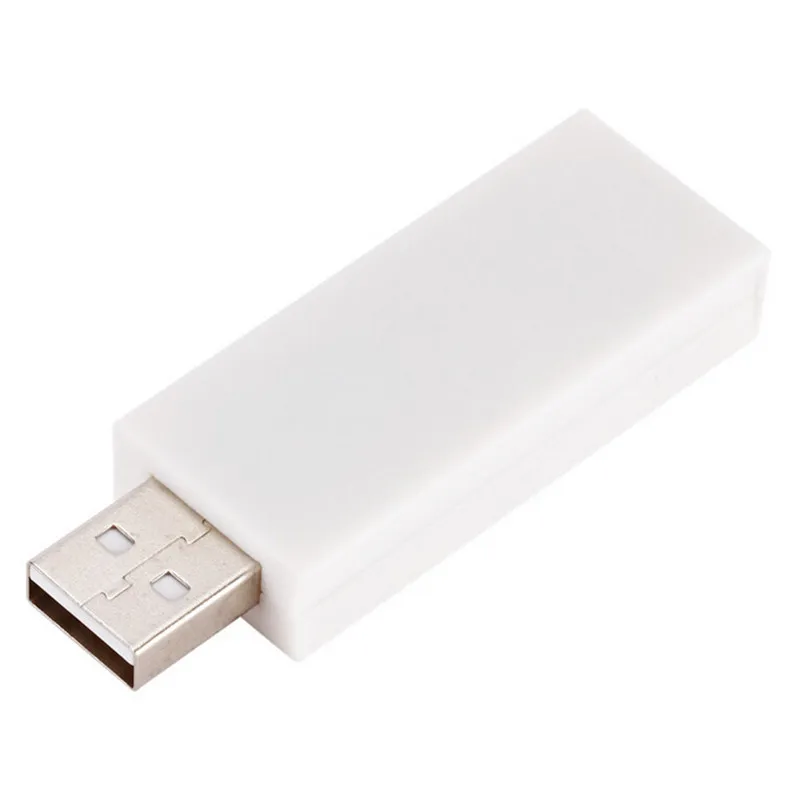

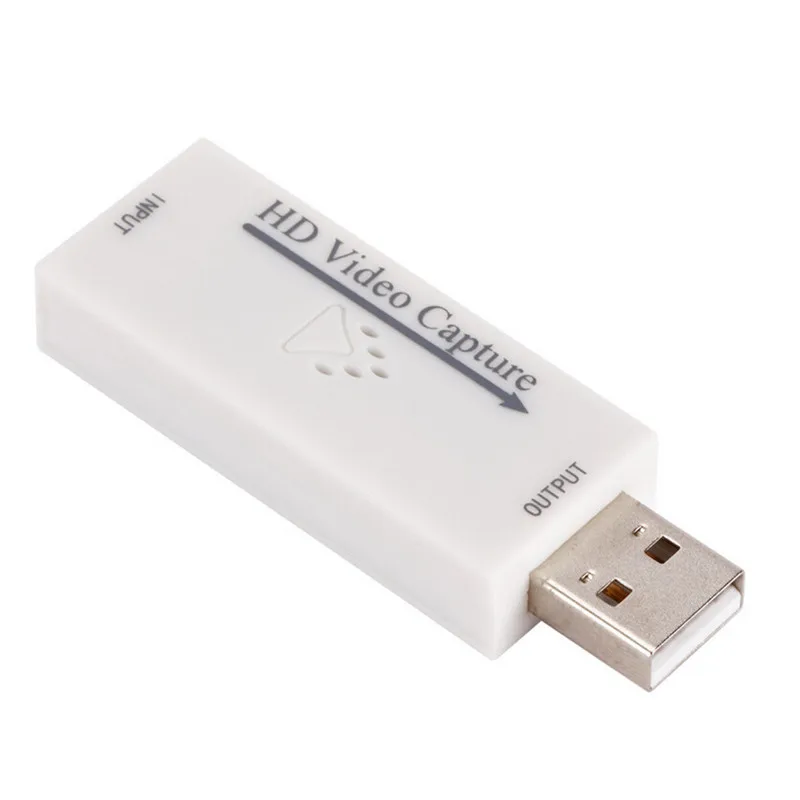

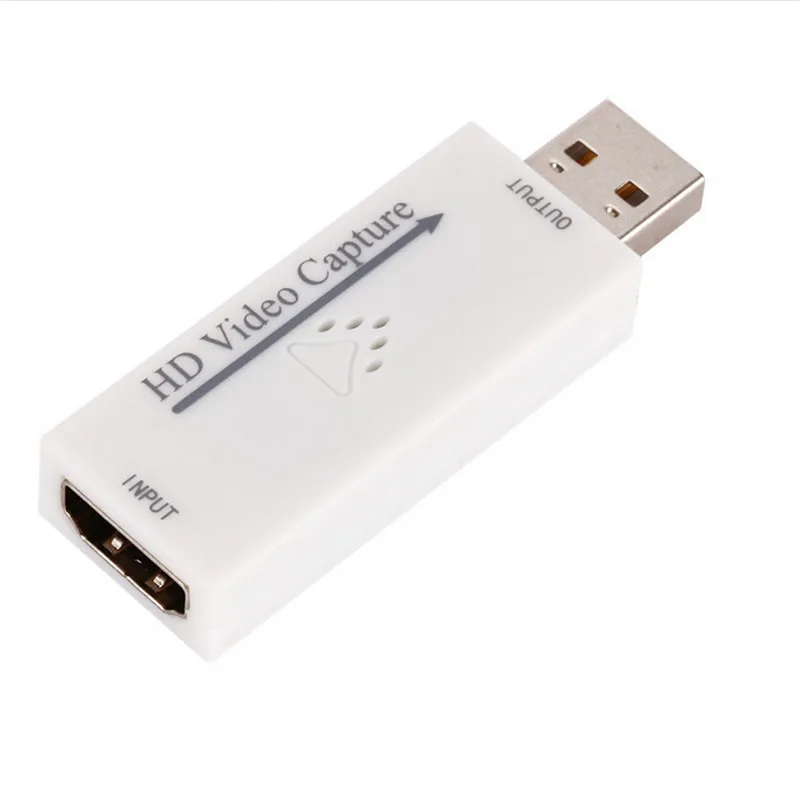

This USB 2.0 capture card can capture both HDMI-compatible video and HDMI-compatible audio at the same time, and can transmit audio and video signals to computers and smart phones for preview and storage. It is suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Features:
Support maximum input resolution up to 4K;
Support maximum output resolution up to 1080P;
Support 8/10/12 bit color depth;
When using standard AWG26 cables, the input transmission distance is up to 15 meters (1080P and below resolution);
Support most acquisition software, such as VLC, OBS, Amcap, etc.;
Support for Windows, Android and MacOS;
Comply with USB video UVC specification;
Comply with USB audio UAC specification;
No need for external power supply, compact and easy to carry.

Specifications:
HDMI-compatible resolution: the highest input can support 4K
Video input format: 8/10/12 bit color depth
Video output mode: YUV, JPEG
Video output resolution: maximum output resolution 1080P
Support audio format: L-PCM
Input cable length: ≤15 meters, AWG26 HDMI-compatible standard cable
Maximum working current: 0.4A/5VDC
Operating temperature range: (-10 to +55℃)
Size: about 62x20x10 (mm)
Weight: about 20g

Connection operation:
1. Connect the UHD signal source and the HDMI-compatible input port of the USB capture card through 1 HDMI-compatible cable
2. Insert the USB male connector of the USB capture card into the USB port of the computer
3. Capture operation steps (OBS): open the software → add a new source → select "video capture device" → set the screen size → Select "Studio Mode"(dual windows) → click on "Start Recording", see the example below for details
1. Add a new source, select "video capture device". 2. Set the screen size. 3. Select "Studio Mode" (dual windows) and the above settings are completed.

Note: computer hardware configuration requirements:
CPU: For PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: For PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G RAM

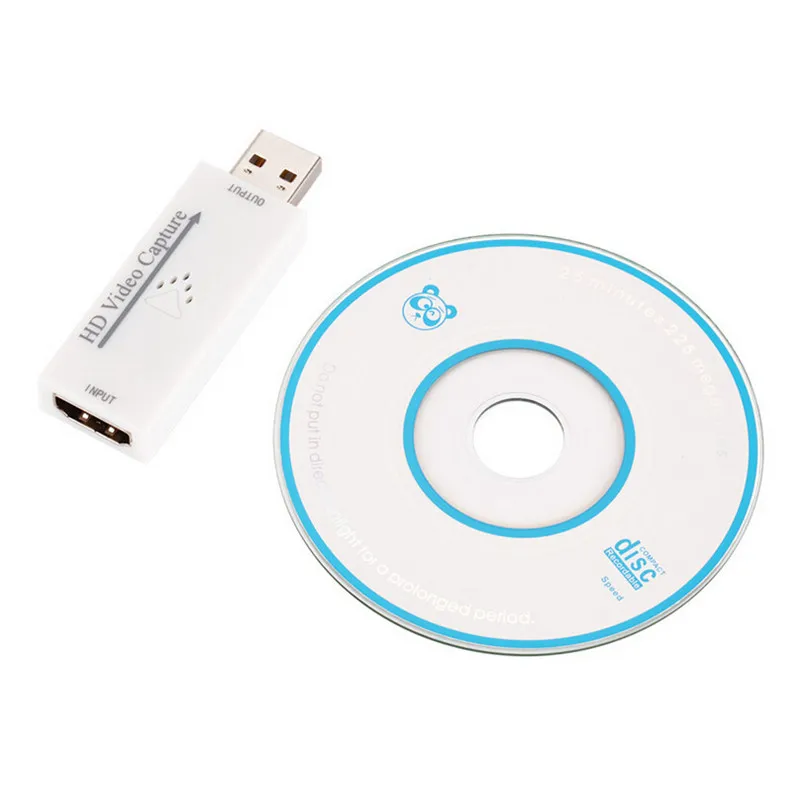

Product List:
Capture card*1
CD*1
