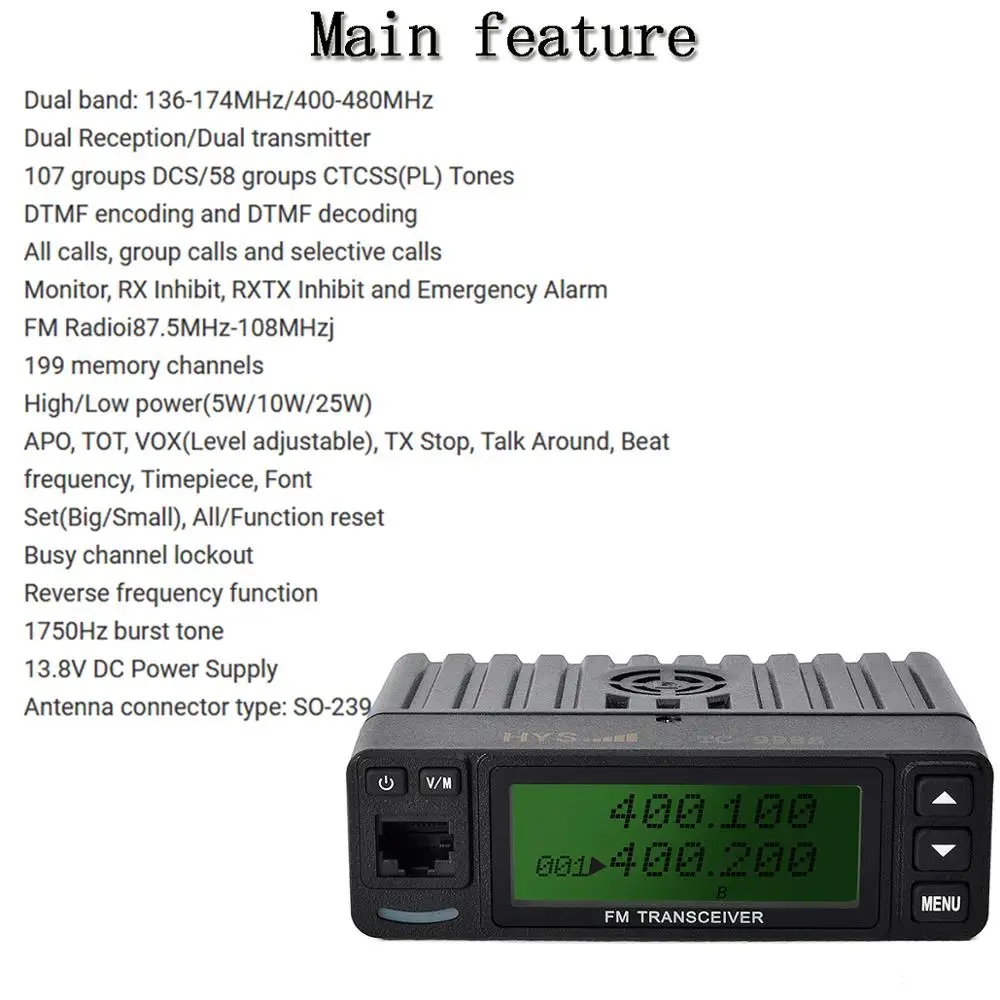

Functions

Dual band: 136-174MHz/400-480MHz
Dual Reception/Dual transmitter
Voice Companding and Scrambler
Multi silent mode (QT/QTADT/QTXDT)
107 groups DCS/58 groups CTCSS(PL) Tones
DTMF encoding and DTMF decoding
PTT IDiVoice broadcast PTT IDj
All calls, group calls and selective calls
Monitor, RX Inhibit, RXTX Inhibit and Emergency Alarm
FM Radioi87.5MHz-108MHzj
Scan/Scan add
Channel name edit available
High/Low power(5W/10W/25W)
APO, TOT, VOX(Level adjustable), TX Stop, Talk Around, Beat frequency, Timepiece, Font
Set(Big/Small), All/Function reset
Busy channel lockout
Keyboard lock (Auto/Manual)
Multi scan mode (TO/CO)
Channel steps (2.5K/5K/6.25K/10K/12.5K/25K)
Wide/Narrow band selection (25KHz/12.5KHz)
Reverse frequency function
1750Hz burst tone
Four key programmable
Lease Function(can program lease time of the radio at a exact time
Input frequency by using Keypad
Wireless changing frequency
PC software disable frequency input
Passwords for menu functions Set
PTT Times per Minutes Set
13.8V DC Power Supply
Antenna connector type: SO-239

Specification

Band :VHF/UHF Dual Band
TX Frequency:136~174MHz /400~480MHz

RX Frequency:400~520MHz/136~174MHz/ :200-260MHz/87.5-108MHz
Channel Capacity:(99CH+3VFO)*2
Output Power: 5W/10W/25W(Low/Mid/High) Operation Mode:Simplex
Dimension :120×90×40mm(L*W*H)
Weight:600g
Modulation Limitation ≤±5KHzLimitation
Spurious Radiation: 60dB
TX Current :3.5A
Frequency Stability±2.5PPM
Rx Sensitivity<0.18µV
Modulation Type:F3E
Audio Power≥400mW
Standby Current:78mA(Power Saving mode is 30mA)
Rated Voltage13.8V

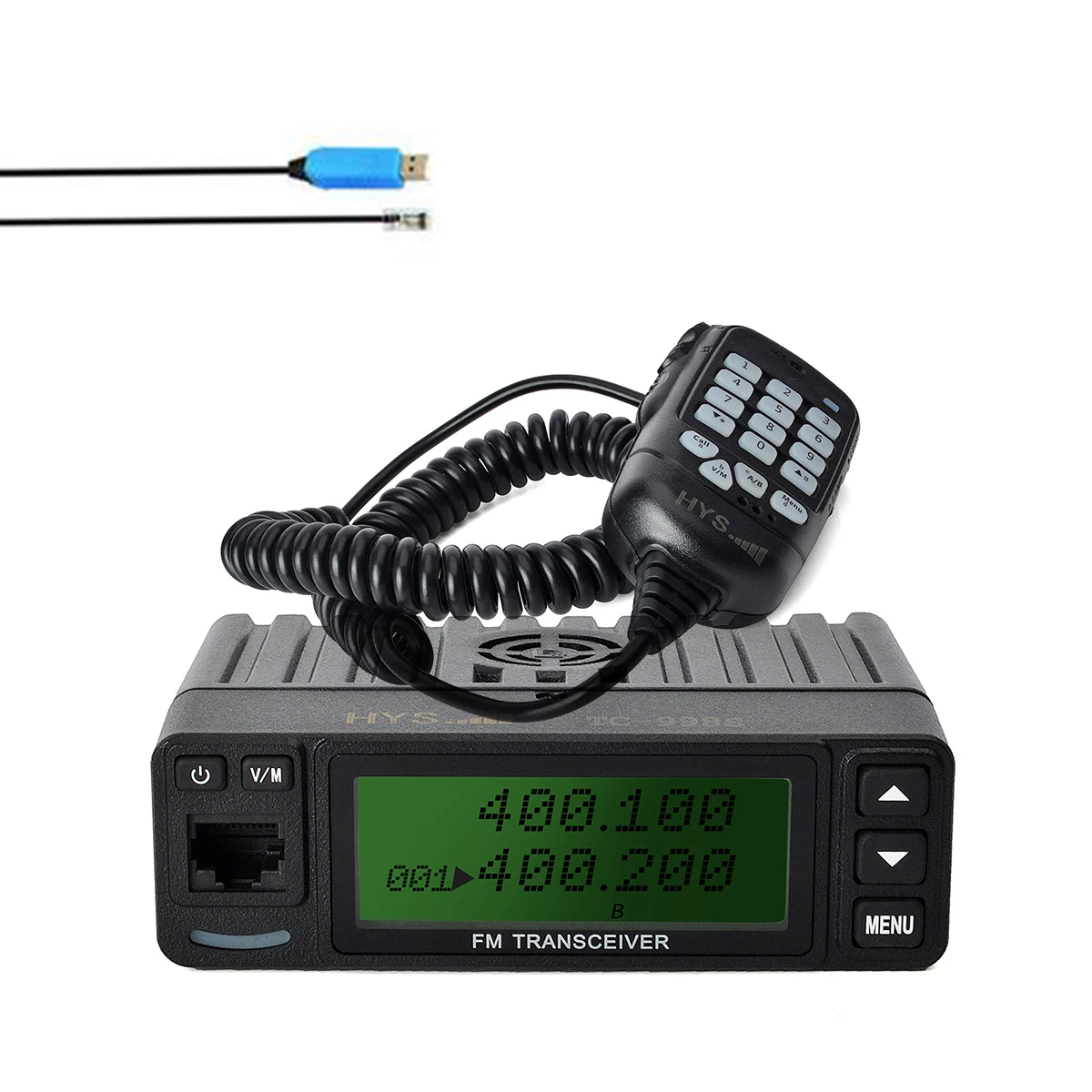

Package Content:

1x Mobile transceiver
1x Bracket
1X Bracket Screw
1x User Manual
1x Programming cable (software included)
